121
Appendix
TipsSettingsConnections
Contents
Front panel Display Rear panel IndexRemote
Playback

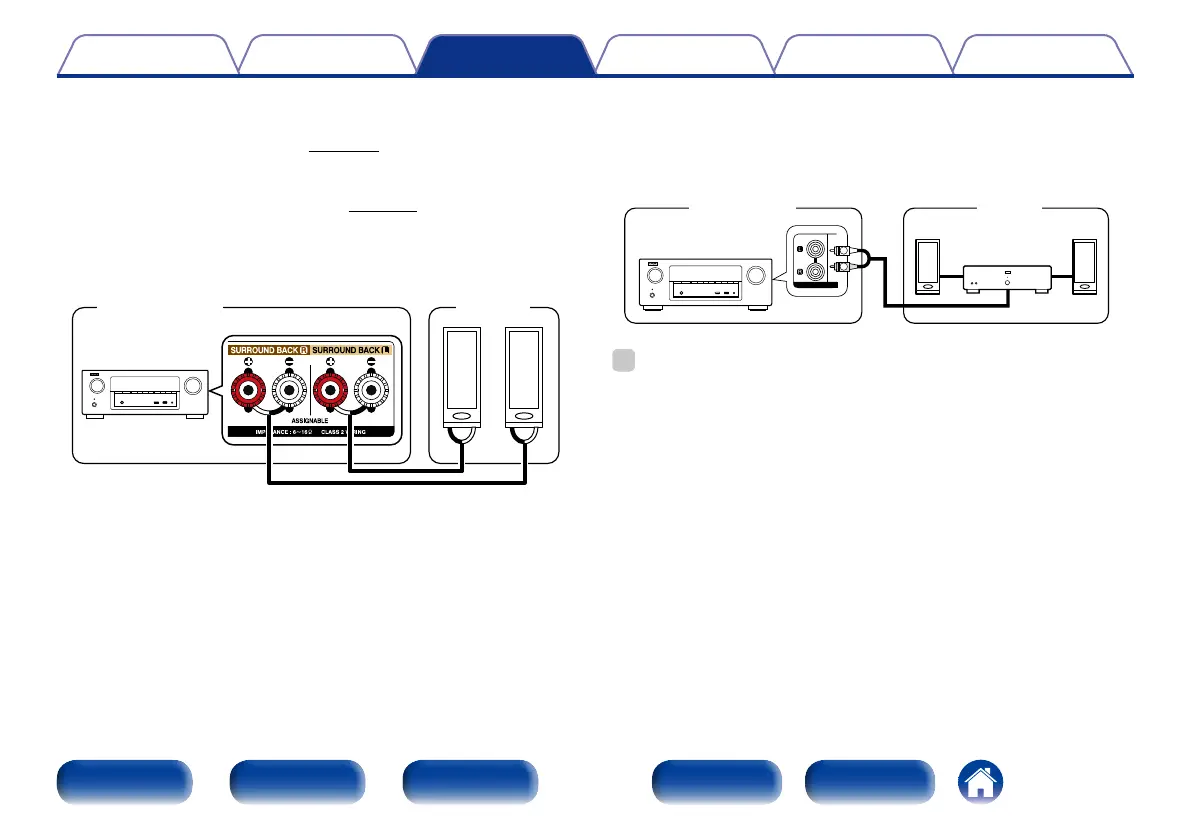

2 Connection 2 : Connection through the speaker
output terminals
•Set the “Assign Mode” (vpage 162) setting to “ZONE2”, and
outputs ZONE2 audio from SURROUND BACK speaker terminals
(The default setting is “ZONE2”).
•If you set the “Assign Mode” (vpage 162) setting to “ZONE2”,
the main zone home theater system can play back up to 5.1-channels.
Even if you play back audio recorded in 6.1 or 7.1-channels, this unit
automatically downmixes the audio to 5.1-channels.
ZONE2
w q w q
(L) (R)
MAIN ZONE
This unit
2 Connection 3 : Connection using an external
amplifier
The audio signals of this unit’s ZONE2 audio output connectors are
output to the ZONE2 amplifiers and played on these amplifiers.
ZONE2
MAIN ZONE
AUX IN
R
L
ZONE2
PRE OUT
This unit
Power
amplifiers
%
•We recommend using high quality pin-plug (RCA type) cables for audio connections
in order to prevent noise.
•If you select a same input source for MAIN ZONE and ZONE2, audio playback may
be restricted.
To Next Page
