2 About the Bi-amp connection

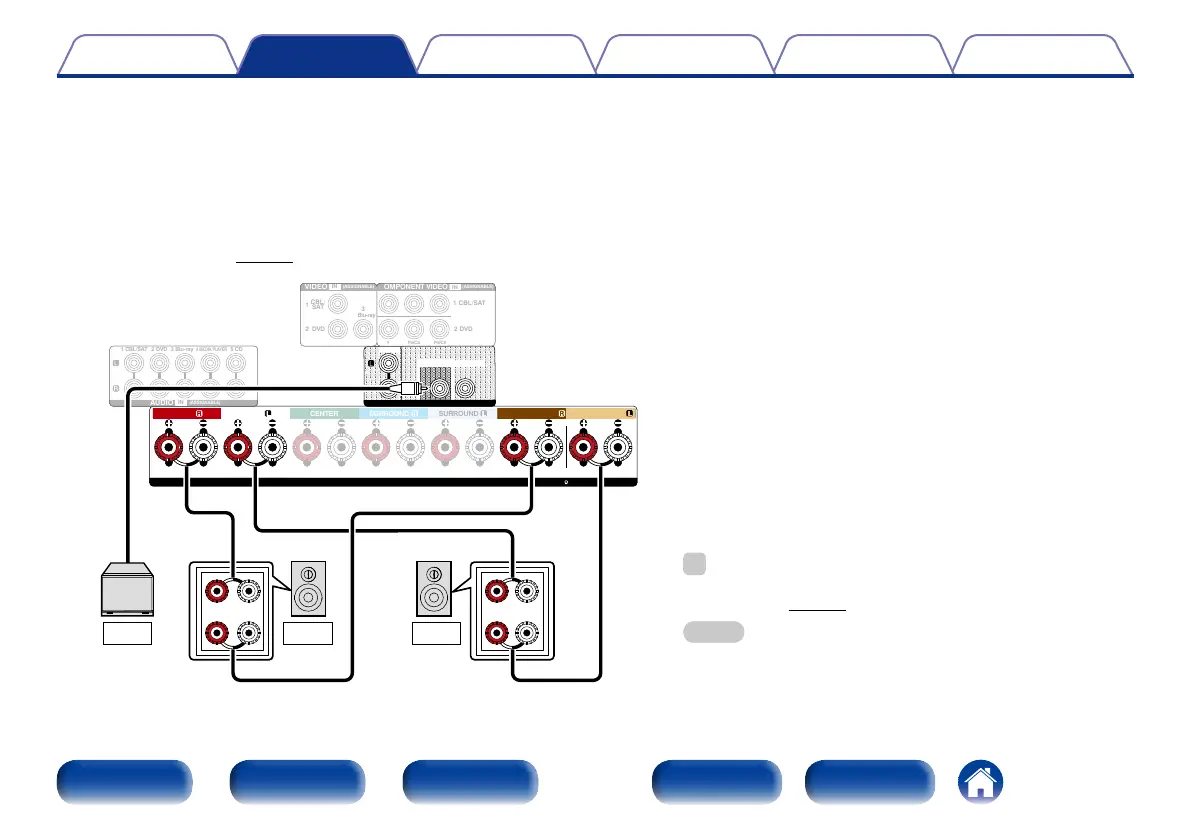

Some audiophile loudspeakers can be connected to an amplifier with two separate amp-to-speaker connections per each speaker. One amplifier
channel’s output is hooked up to the speaker’s bass driver (woofer), while the other amplifier drives the upper range transducers (tweeter, or in
some cases midrange and tweeter). This connection method has one amplifier channel driving one half of the bi-amp speaker, and avoids electrical
interference between the speaker’s bass and treble drivers and the driving amplifier channels. You can assign 4 amp channels to connect to one pair
of bi-amp capable speakers. Bi-amp capable speakers always have two sets of speaker input connector pairs, one for the bass range and one for
the treble range. If you’re unsure about whether or not your speakers are bi-amp capable, consult the owner’s manual that came with the speakers.
•For how to connect the front, center, and surround speaker and the subwoofer to this unit, see “Connecting 7.1-channel speakers using surround
back speakers” (vpage27).
wq wq
(R) (L)
CBL
/
SAT
1 CBL/SAT
2 DVD
Y
P
B
/
CB
DVD
1
2
3
PR
/
CR
ZONE2
SUBWOOFER2
SUBWOOFER1
PRE OUT
Blu-ray
VIDEO
IN
COMPONENT VIDEO
IN
(
ASSIGNABLE
)
(
ASSIGNABLE
)
ASSIGNABLE
IMPEDANCE : 6～16 Ω CLASS 2 WIRING
SPEAKERS
FRONT
FRONT SURROUND SURROUNDCENTER
SURROUND BACK
SURROUND BACK
3 Blu-ray
4 MEDIA PLAYER
1 CBL
/
SAT
2 DVD 5 CD
IN
AUDIO
(
ASSIGNABLE
)
FLFR
SW1
%
•When using this connection, also set “Assign Mode” in the menu to
“Bi-AMP” (vpage162).
NOTE
•When making bi-amp connections, be sure to remove the short-
circuiting plate or wire between the speaker’s woofer and tweeter
terminals.
