Denon AVR-X3300W Service Manual

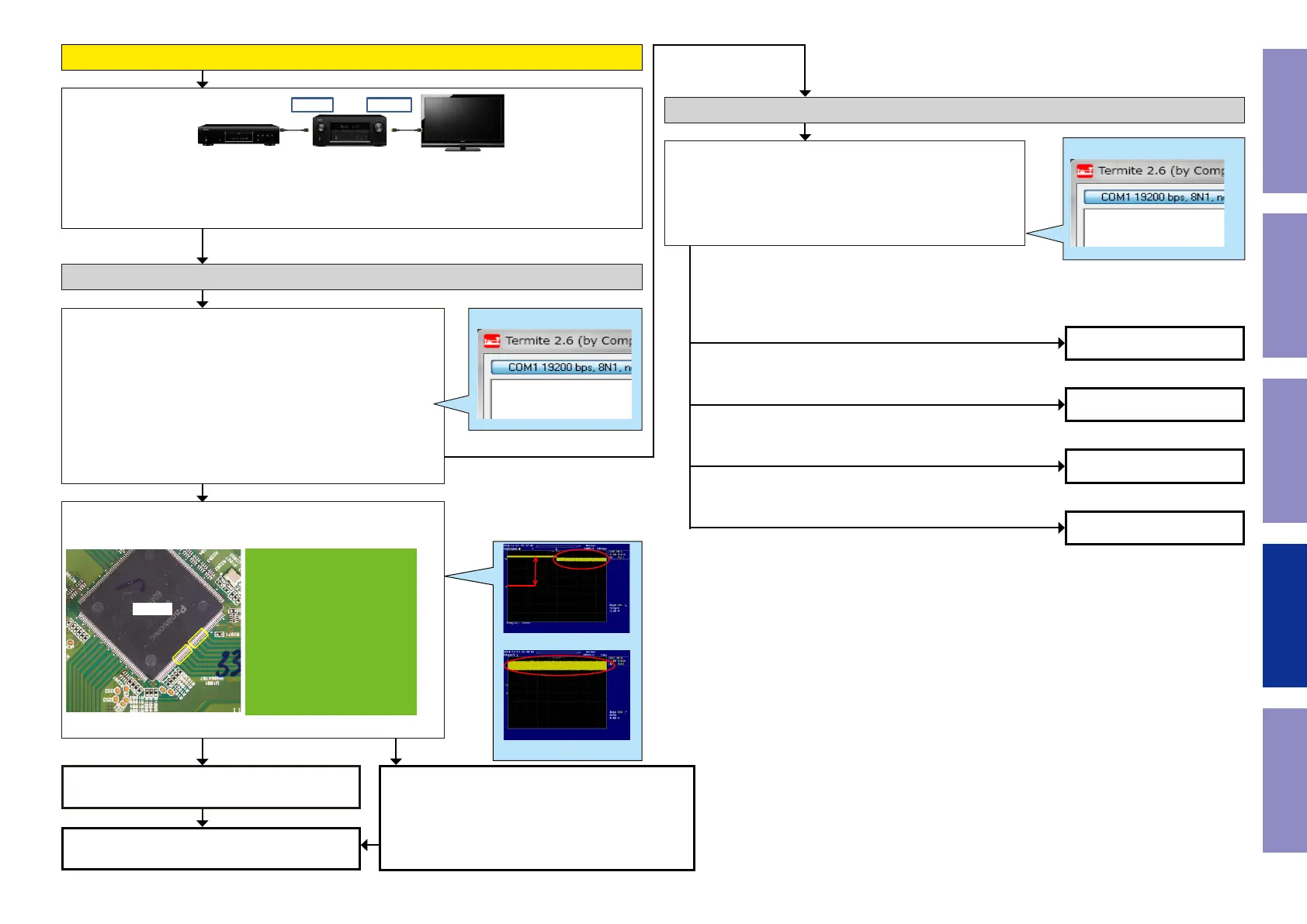

When the results of check item (38) are "the communication results are OK"
Turn Video Conversion "OFF" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion = Off)
b
In order to check, connect the player to the HDMI terminal and congure the player as AVR source.
Next, turn on the power for the player and TV and start playback on the player.
HDMI OUT
HDMI IN 1/5
NO
YES
Check item(42). Check the TMDS CLK detection status of the regis-
ter.
Send the following command from Termite.exe.
Send the command "i 0006 00FF 0001".
When the following value is returned, go to Yes.
HDMI IN1 "72" HDMI IN5 "71"
When the following value is returned, go to No.
HDMI IN1 "70", HDMI IN5 "70"
Checking the TMDS status register (Switcher1/2 -> HDMI Tx)
Example
i 0006 00FF 0001
72
Check item (44). Checking the TMDS input waveform. :
Check the TMDS waveform at the following test point.
Is the waveform like the sample?
HDMI IN1
124/125/127/128/130/131/133/134 pin
HDMI IN5
137/138/140/141/143/144/146/147 pin
U1001
HDMI Tx (U1001) is faulty.
Replace with a new device.
TMDS Signal
3.3V
Example of waveform in check ①
TMDS
Example of waveform in check ②
Check item(43). Check the HPD and RXSENSE register value of
the HDMI TX device.
Send the following command from Termite.exe.
Send the command "i 0000 0040 0001".
Check the value.
Move to the branch destination according to the value returned.
Checking the HPD/RXSENSE status register. (HDMI OUT)
Example
i 0000 0040 0001
30
"10"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
"30"
(Detection of HPD is OK / Detection of RXSENSE is OK )
"20"
(Detection of HPD is not OK / Detection of RXSENSE is OK )
"00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Go to check item (48)
Go to check item (45)
Go to check item (49)
Go to check item (50)
Recheck from check item (4).
If it does not work, replace the PCB.
Case of HDMI IN1
HDMI Switcher2 (U1000) is faulty.
Replace with a new device.
Case of HDMI IN5
HDMI Switcher1 (U1003) is faulty.
Replace with a new device.
NO
YES
101
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X3300W Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	7.2
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	105 W
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	600 W
Product color	Black
Audio decoders	DTS-HD, DTS-HD Master Audio, Dolby TrueHD
Multi-Zone quantity	2
Apple docking compatibility	-
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
HDMI in	8
Audio (L/R) in	5
Remote control in	1
Composite video in	3
Composite video out	0
Connectivity technology	Wired
Speakers connectivity type	Clamp terminals
Audio formats supported	AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA

Weight and Dimensions

Depth	389 mm
Width	434 mm
Height	167 mm
Weight	10800 g
