Denon AVR-X4300H Service Manual

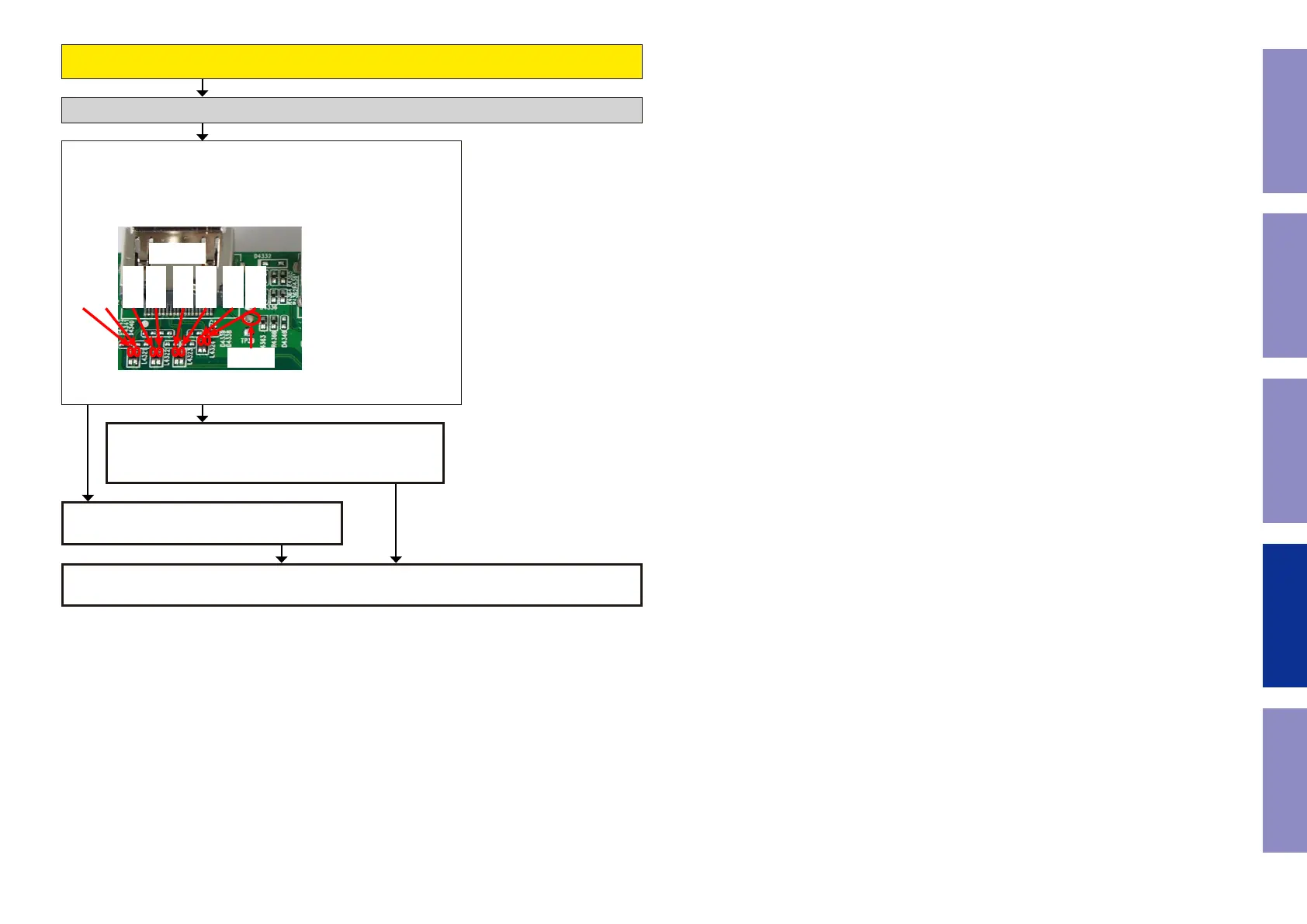

When the results of check item (52) are "00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Check item(58). Checking the HPD and RXSENSE. :
Does the test point of RXSENSE close to the HDMI output terminal
(JK432) indicate the (3.3V)?
Does the voltage of HPD test point close to the HDMI output terminal
(JK432) indicate "Hi" (3-5 V)?
JK432
D2+
D2-
D1+
D1-
D0+
D0-
CK+
CK-
HPD
Checking the HPD/RXSENSE status register. (Monitor2)
HDMI Tx (IC431) is faulty.
Replace with a new device.
Recheck from check item (5).
If it does not work, replace the PCB.
Check for a short circuit in the TMDS/ HPD line.
If there is no problem, the HDMI Tx (IC431) is faulty.
Replace with a new device.
NOYES
118
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X4300H Specifications

General

Display	-
Product color	Black
Audio decoders	DTS Neo:X, DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	11.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
HDMI in	8
Remote (IR) input	1
Composite video in	4
Digital audio coaxial in	2
Headphone connectivity	3.5 mm
Number of HDMI outputs	3
Multichannel audio output type	RCA
Supported video modes	1080p, 2160p
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Power consumption (standby)	0.1 W
Power consumption (typical)	710 W
Card reader integrated	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	236 mm
Weight	13500 g
