Denon AVR-X4300H Service Manual

Proceeding : TOP COVER → REAR PANEL → DIGITAL PCB → VIDEO PCB
→ INPUT PCB → TUNER PCB
See "EXPLODED VIEW" for instructions on removing the TUNER PCB.
Proceeding : TOP COVER → FRONT ASSY → RADIATOR ASSY → REAR PANEL
→ DIGITAL PCB → VIDEO PCB → INPUT PCB → TUNER PCB
→ SPK PCB
(1) Remove the screws.
(2) Remove the screws. Remove the connector.
Proceeding : TOP COVER → SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER → TRANS
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).

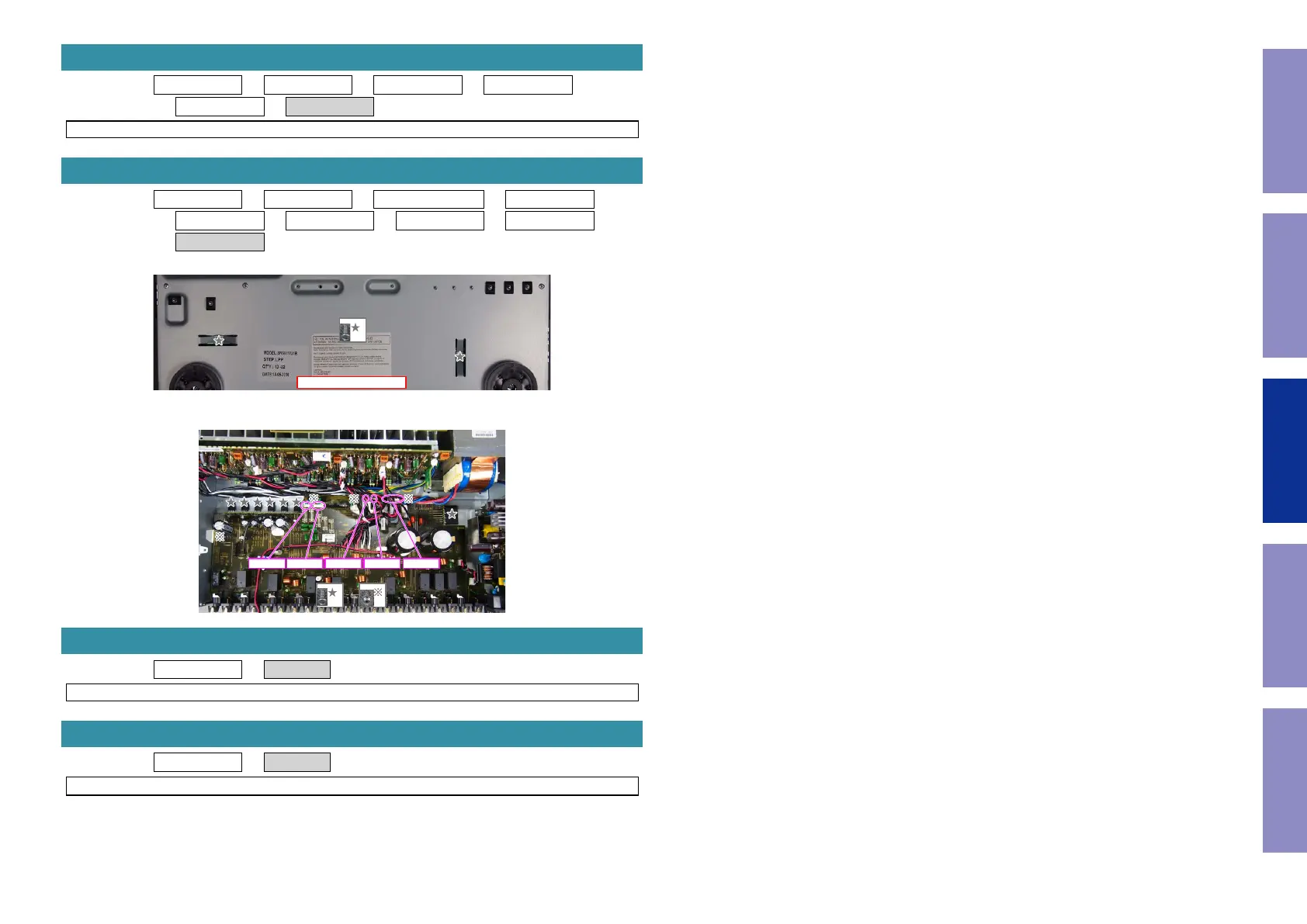

7. TUNER PCB
8. SPK PCB
View from the bottom
x2
x4x7
CN941 CN940 CN712 CN711 CN971
9. SMPS PCB
10. TRANS
76
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X4300H Specifications

General

Display	-
Product color	Black
Audio decoders	DTS Neo:X, DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	11.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
HDMI in	8
Remote (IR) input	1
Composite video in	4
Digital audio coaxial in	2
Headphone connectivity	3.5 mm
Number of HDMI outputs	3
Multichannel audio output type	RCA
Supported video modes	1080p, 2160p
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Power consumption (standby)	0.1 W
Power consumption (typical)	710 W
Card reader integrated	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	236 mm
Weight	13500 g
