Denon AVR-X4300H Service Manual

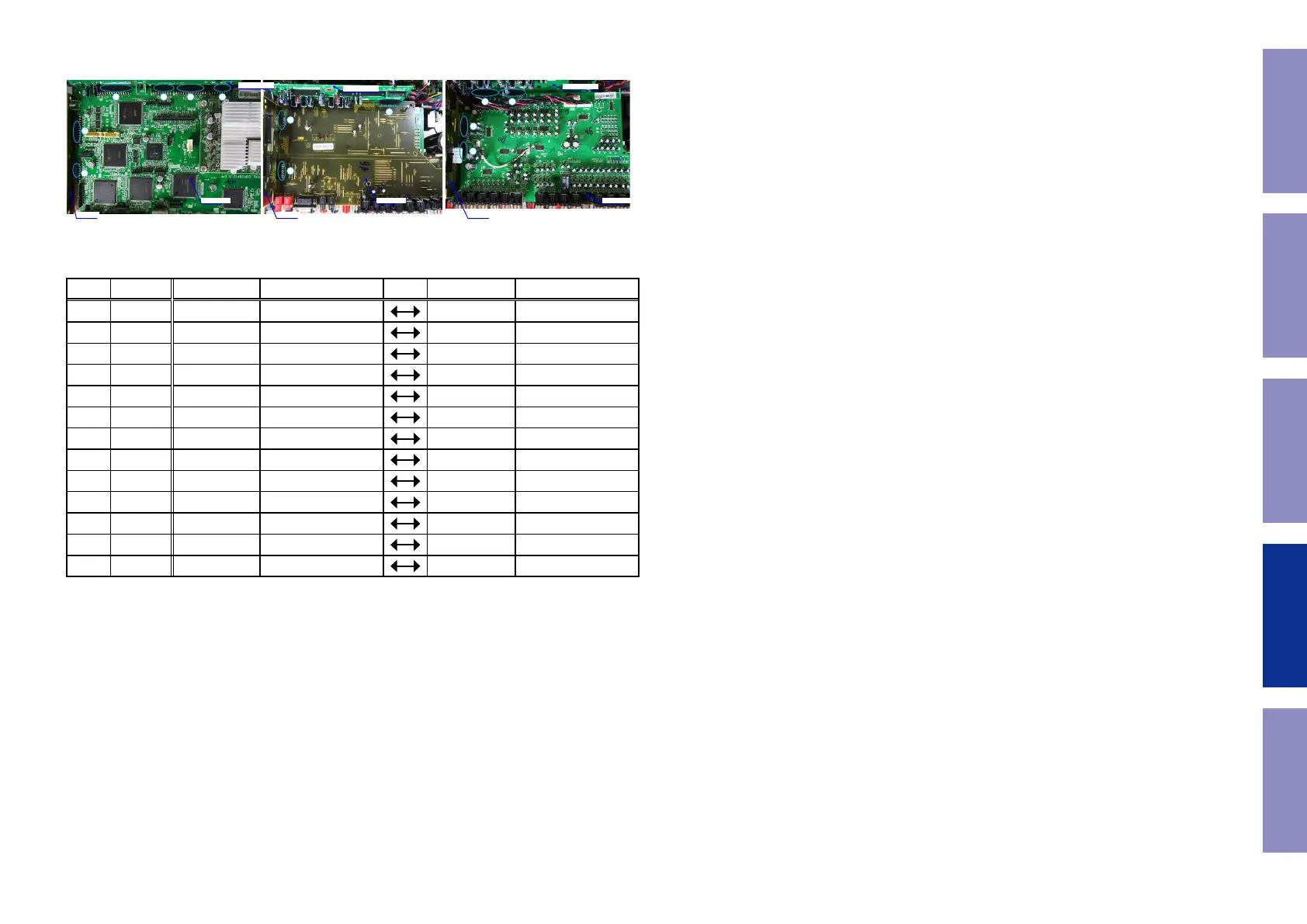

(4) Connect the expansion cables.
Board-to-Board Connections
No. Pin Ref. No. PCB Ref. No. PCB
q
15pin CN27A SIDE CNT
BN27A DIGITAL
w
25pin CN23A SIDE CNT
BN23A DIGITAL
e
27pin CN24A FRONT CNT
BN24A DIGITAL
r
15pin CN26A FRONT CNT
BN26A DIGITAL
t
25pin CN25A FRONT CNT
BN25A DIGITAL
y
15pin CN21A FRONT CNT
BN21A DIGITAL
u
15pin CN27C SIDE CNT
BN27B VIDEO
i
7pin CN28C SIDE CNT
BN28B VIDEO
o
19pin CN21B FRONT CNT
BN21B VIDEO
Q0
11pin CN64C SIDE CNT
BN64C INPUT
Q1
19pin CN23C SIDE CNT
BN23C INPUT
Q2
27pin CN24C FRONT CNT
BN24C INPUT
Q3
21pin CN26C FRONT CNT
BN26C INPUT
FRONT CNT
FRONT CNT
FRONT CNT
SIDE CNT SIDE CNT SIDE CNT
INPUTVIDEODIGITAL
1
2
3 4 5 6
7
8
9
10
11
12 13
183
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X4300H Specifications

General

Display	-
Product color	Black
Audio decoders	DTS Neo:X, DTS-HD Master Audio, Dolby Pro Logic IIz, Dolby Surround, Dolby TrueHD
Audio amplifier	Yes
Connector contacts plating	Gold
Apple docking compatibility	Not supported
Receiver type	Surround
Audio output channels	11.2 channels
Power output per channel (1KHz@6 Ohm)	235 W
Power output per channel (20-20KHz@8 Ohm)	125 W
Audio formats supported	AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
AM band range	520 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, TuneIn
HDMI in	8
Remote (IR) input	1
Composite video in	4
Digital audio coaxial in	2
Headphone connectivity	3.5 mm
Number of HDMI outputs	3
Multichannel audio output type	RCA
Supported video modes	1080p, 2160p
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Power consumption (standby)	0.1 W
Power consumption (typical)	710 W
Card reader integrated	No

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	236 mm
Weight	13500 g
