2D Code Handy Terminal
“2: CONNECTOR”: Connector communication environment
settings
1. Select “2: CONNECTOR” at the SET COMMUNICATION menu and then
press the ENT key.

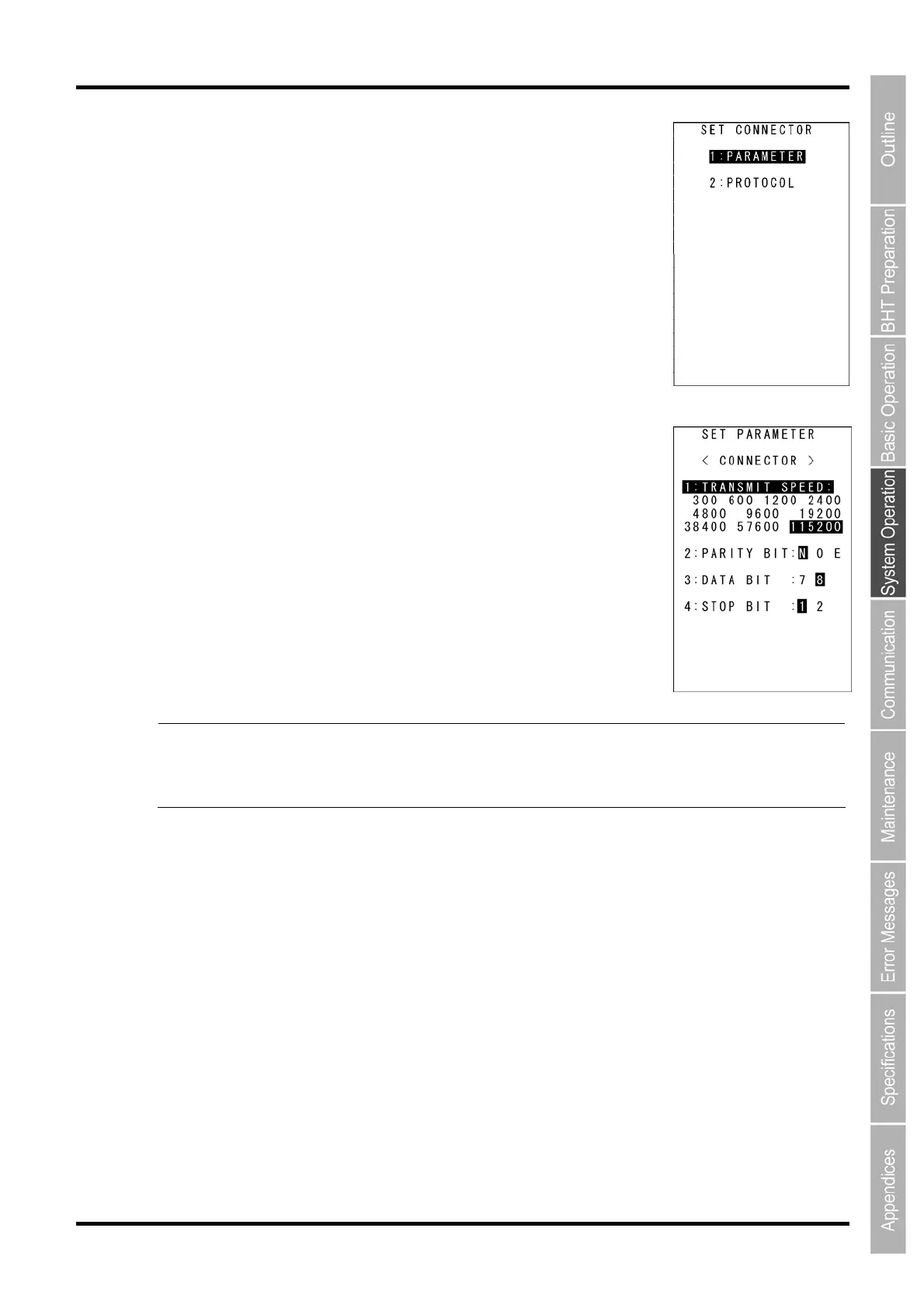

The SET CONNECTOR menu screen displays as shown on the right.
2. Use the cursor keys ([▲] [▼]) or numerical keys ([1] [2]) to highlight “1:
PARAMETER” or “2: PROTOCOL”, and then press the ENT key.
Press the C key to return to the SET SYSTEM menu.
“1: PARAMETER”: Setting the communication parameters
Select “1: PARAMETER” to display the screen shown on the right.
The highlighted settings will be the current settings.
“1: TRANSMIT SPEED”: Sets the transmission speed.
“2: PARITY BIT”: Sets the vertical parity: none, odd, or even.
“3: DATA BIT”: Sets the character length.
“4: STOP BIT”: Sets the stop bit length.
To change the setting, use the cursor keys ([▲] [▼]) or numerical keys ([1]
[2] [3] [4]) to highlight the item to be set, highlight the setting value using the
cursor keys ([◄] [►]), and then press the ENT key.
Press the C key to return to the SET CONNECTOR menu.
- Point - Selecting the BHT-Ir protocol ignores the vertical parity, character length, and stop bit
length settings.
Selecting YMODEM requires the vertical parity, character length, and stop bit length to be
set to N, 8 and 1, respectively.
