EN Installation

03/2020 15 / 84

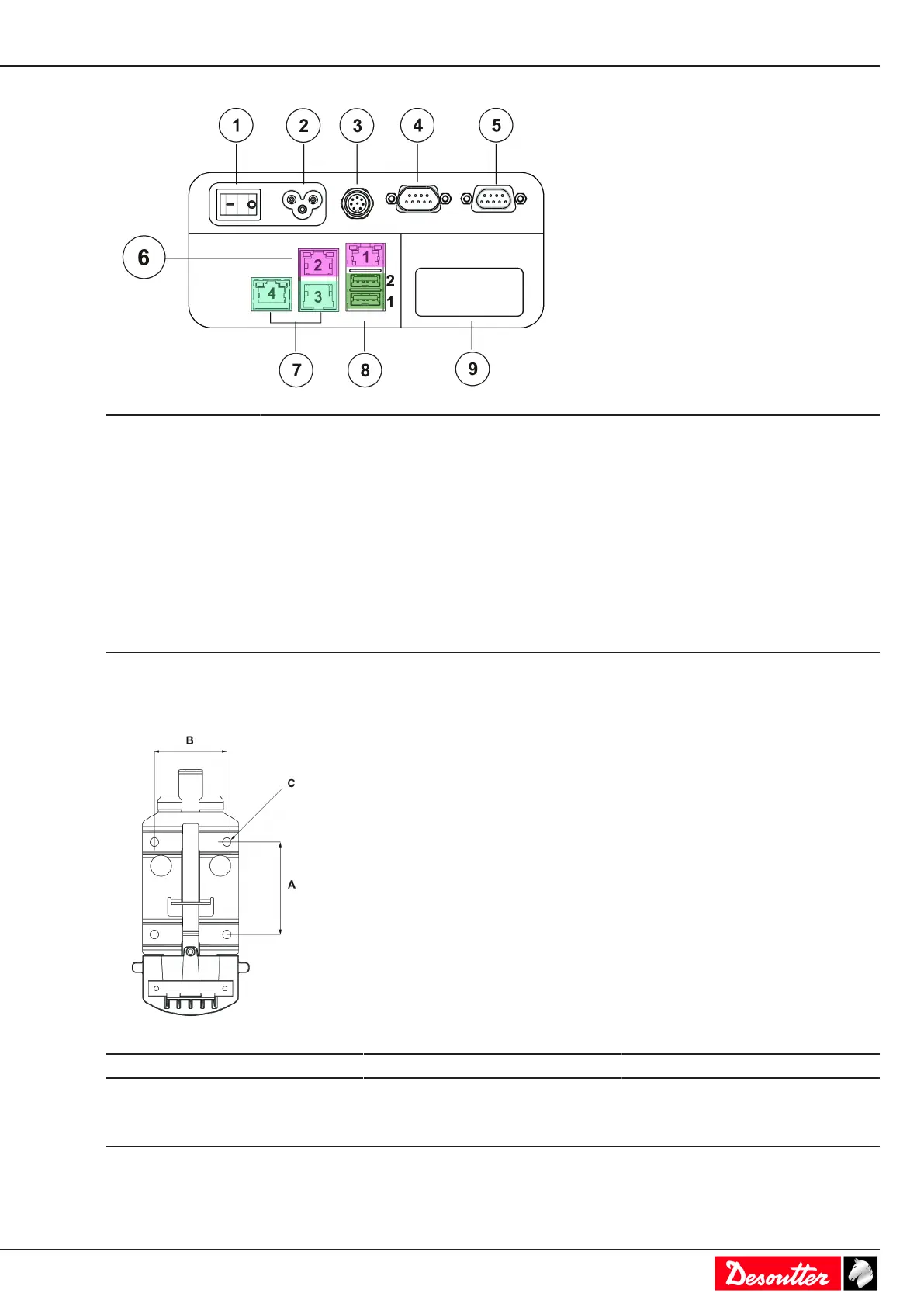

Inside panel

1 ON/OFF switch

2 Plug for power cord

3 24 V DC connector

4 RS232 port

5 eBUS port

6 Ethernet ports 1 and 2

7 Ethernet ports 3 and 4

Port 4 is a PoE Ethernet port.

"PoE" stands for "Power over Ethernet"

8 2 USB ports

9 Fieldbus module slot

Installing the wall mounting kit

Use the following drilling template to properly install the wall-mounting kit.

mm in.

A 70 2.76

B 55 1.16

C 6.5 0.26

Mount the wall-mounting kit on the rail or wall.
