Operation
03/2020
47 / 84

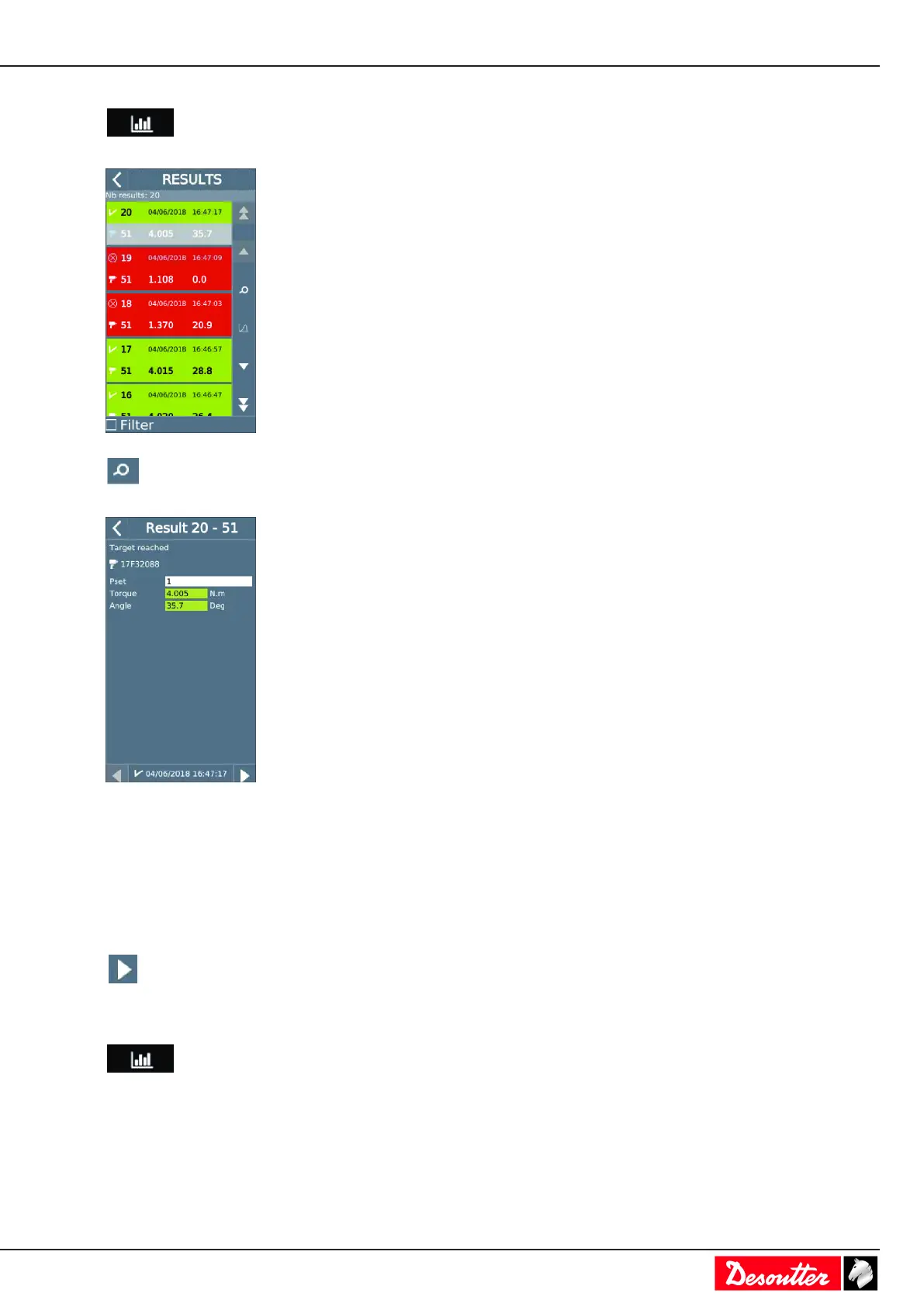

Searching for a specific result
Go to the start screen and tap this icon.
Select a result and tap this icon.
The following information is displayed:
•
stop source
•
tool serial number
•
Pset number
•
torque value
•
angle value
Tap this icon to see the next result.
Filtering results
Go to the start screen and tap this icon.
46
48
