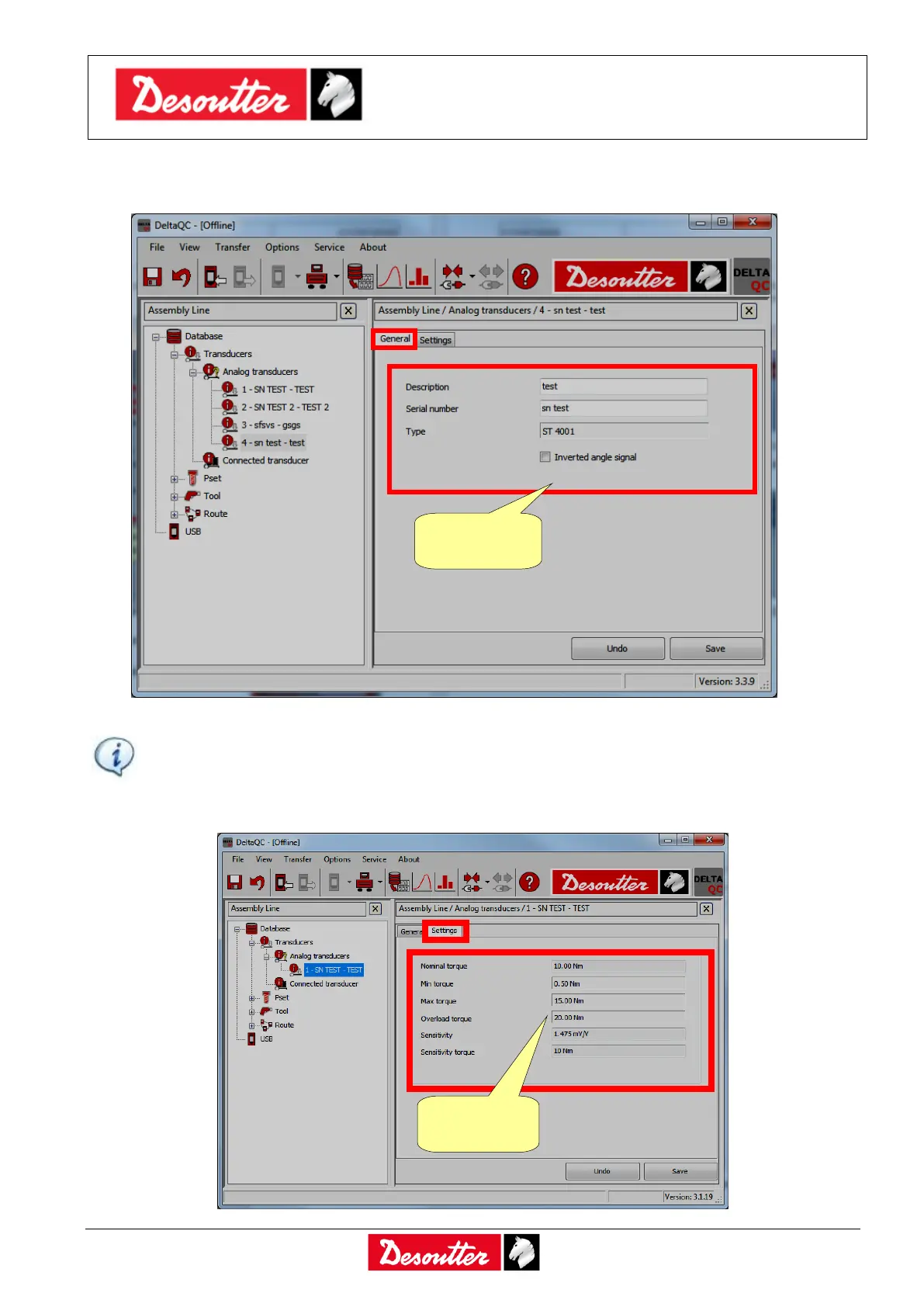

After entering the Description and Serial number (refer to the screen above) and clicking OK, the
following page is shown:
NOTE: In the General section, Description and Serial number are the only editable areas.
Furthermore, by flagging the “Inverted angle signal” option, it is possible to solve those
cases where the analog transducers give an inverted/negative angle reading.
Finally, after checking the transducer parameters, click Save.
