0065-0647-OM Rev E 7550 OWNER’S MANUAL
PARTS IDENTIFICATION, CONT.
FINAL ASSEMBLY – FRONT VIEW

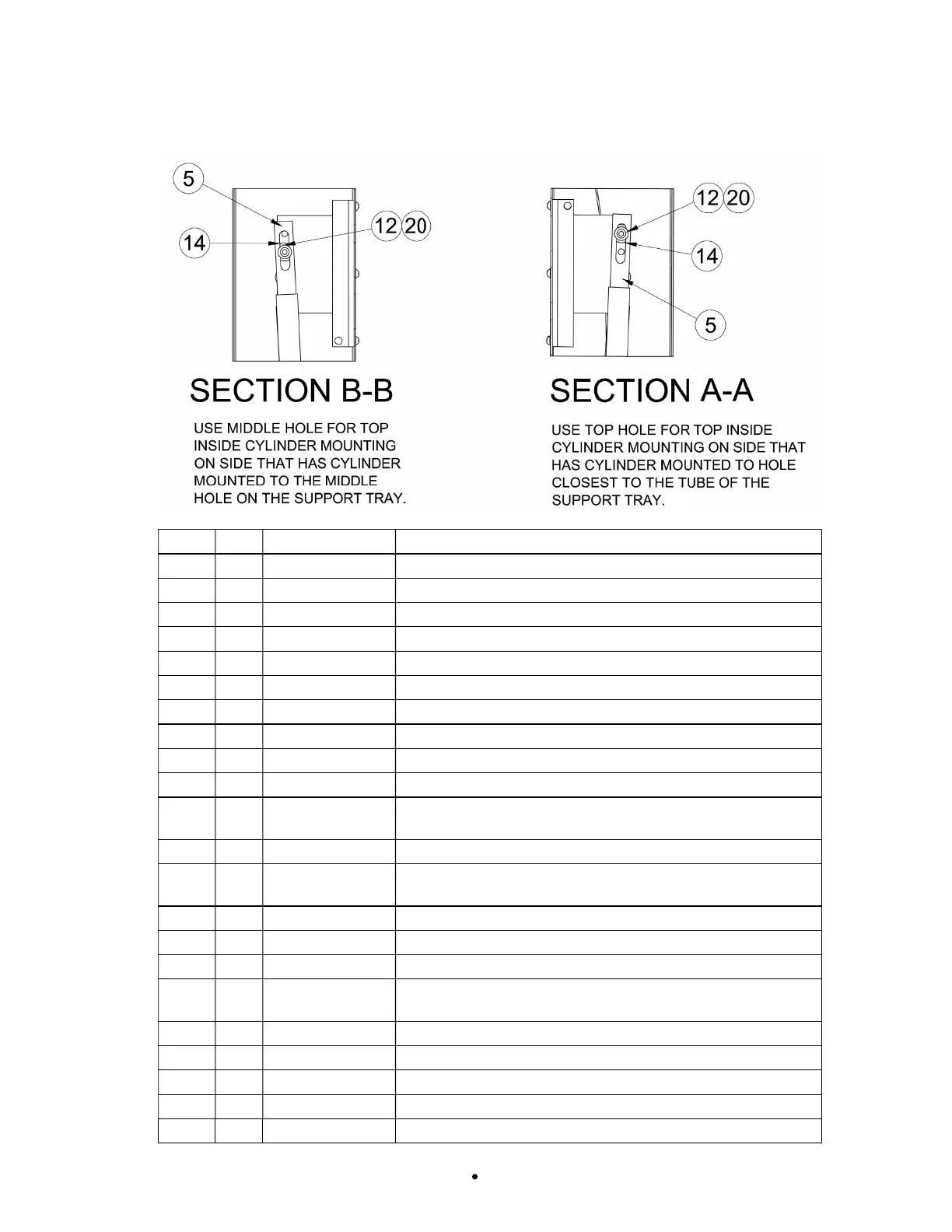

SECTION B-B and SECTION A-A
Item Qty.
Part Number Description
1 1 0065-0844-0A FRAME ASSEMBLY
2 1 0065-0846-08 MAT-DECK, 7550 GRAY
3 1 0065-0843-0A SUPPORT TRAY ASSEMBLY
4 2
0065-B610-08 BUSHING
5 2 0065-B613-08 CYLINDER SLIDE
6 2 0065-B621-18 BUMPER MOUNT
7
2 0065-C609-08 PIVOT BLOCK
8
1 0065-0840-08 WEIGHBRIDGE, NO WC STOPS, 7550
9 2 0065-0862-08 FRAME COVER
10
2 6021-1058 SCW TRUSS-HEAD MACHINE-SCW 10-32 X .375
11 4 6021-1801
SCW FLAT-HEAD, SOCKET CAP .25-20 X .375
BLACK OXIDE
12
2 6021-1801 SCW SHOULDER SOCKET HEAD 5/16-18 X 1.0”
13 2 6031-0219
CYLINDER, GAS SPRING, 191 LBS,
TWO SOCKET, 8 INCH STROKE
14
2 6680-0021 SPACER NYLON 1.000 OD X .450 ID X .219 LONG
15
1 6980-0014 CABLE TIE, 4”
16 2 8529-B215-08 SUPPORT, TRAY
17 2 6031-0221
CYLINDER, GAS SPRING, 191 LBS,
ONE SOCKET, 8 INCH STROKE
18
.001 6050-3049 GREASE, FOOD GRADE, MOLYKOTE G-4500 14oz
19
1 6610-5007 CABLE CLIP 1" x 1"
20
.001 6560-1125 ADHESIVE LOCTITE 290 THRD LCKR, WICKING
21 24 6021-1006 SCW ROUND-HEAD SELF-TAP 10-32 X .500 S.S.
22
1 593GR986 SERIAL TAG ASSEMBLY
