0065-0647-OM Rev E 7550 OWNER’S MANUAL
PARTS IDENTIFICATION, CONT.

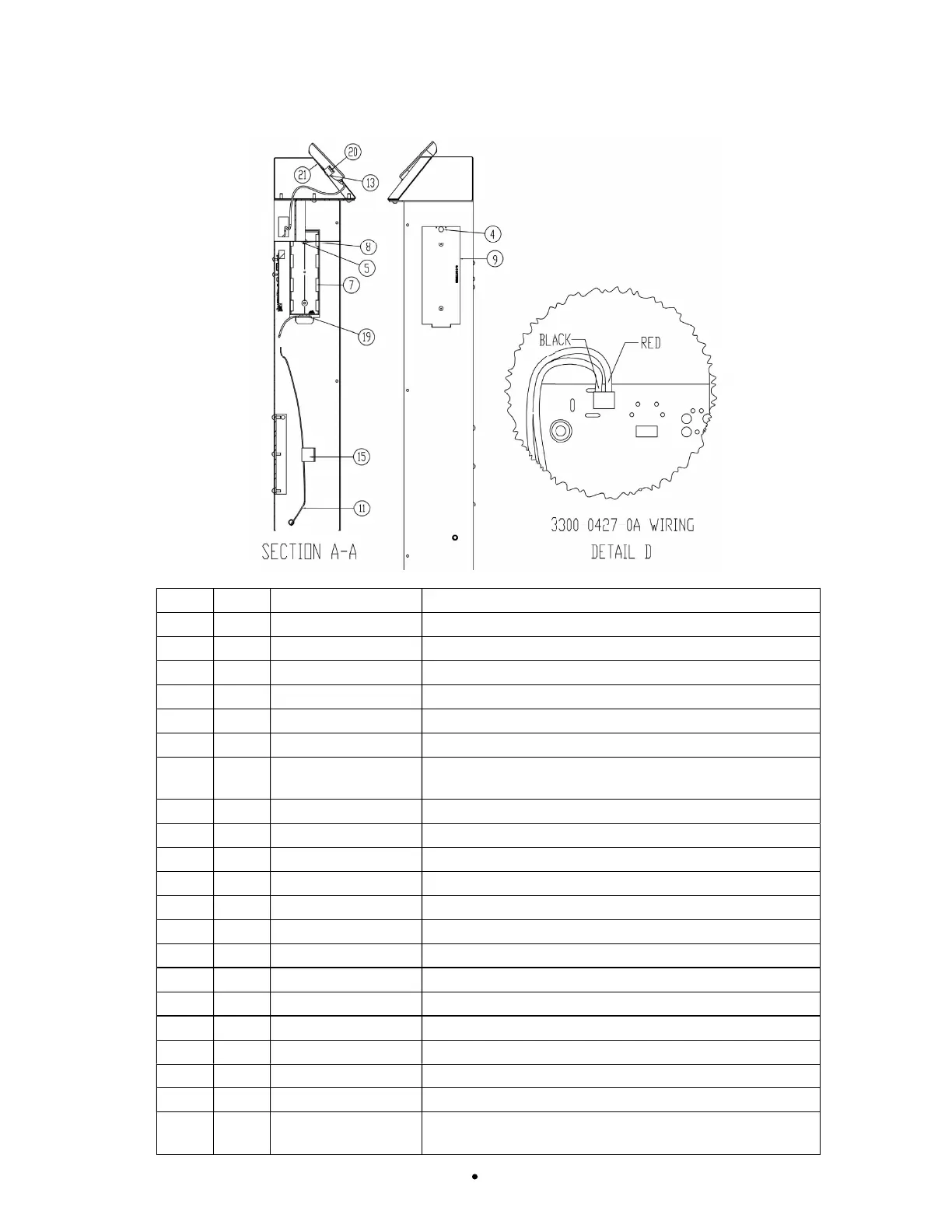

FRAME ASSEMBLY, 0065-0844-0A – SECTION A-A and DETAIL D
ITEM QTY PART NUMBER DESCRIPTION
1 1 0065-0841-0A FRAME WELDMENT
2 1 0065-C624-0A CYLINDER MOUNT WELDMENT LEFT
3 1 0065-C624-1A CYLINDER MOUNT WELDMENT RIGHT
4 1 6021-1065 SCREW, THUMB, MACHINE-SCREW, 06-32 X .375
5 2 6024-0126 WASHER FLAT FOR 5/32 POP RIVET
6 2 6031-0220 BALL STUD, GAS SPRING, 13 MM DIA, 5/16 - 18
7 1 6610-5119
BATTERY HOLDER, 6 "C" CELL, 9V SNAP
CONNECTOR
8 2 6680-0214 RIVET POP, BH AL 5/32 DIA x .126-.187 GR
9 1 8555-0529-18 BATTERY COVER, 7550 GRAY
10 1 3300-0321-4A PCB ASS’Y 855/7550 ANALOG/CONTROLLER
11 1 3300-0427-0A CABLE, POWER JACK 7550
12 1 0065-0856-0A TOP COVER WITH 855 MOUNT WELDMENT
13 1 0065-0855-08 ICON MOUNTING STRAP FOR 7550
14 20 6021-1006 SCW ROUND-HEAD SELF-TAP, 10-32 X .500 S.S.
15 2 6610-5007 CABLE CLIP 1" X 1"
16 1 SUB-ASSY, DISPLAY, 7550
17 4 6021-0654 SCREW, PAN-HEAD, MACHINE SCW, 06-32 X .250
18 1 3300-0365-0A CONTROLLER TO DISPLAY CABLE
19 1 3300-0366-0A CABLE: BATTERY
20 2 6013-0295 NUT, #10-32 HEX, ZINC PLATED
21 2 6021-1293
SCREW, FLAT-HEAD, THREAD CUTTING TYPE 25,
#4-24 X 5/16, PHILLIP DRIVE, ZINC PLATED
To Next Page
