0065-0647-OM Rev E 7550 OWNER’S MANUAL
PARTS IDENTIFICATION, CONT.
SUPPORT TRAY ASSEMBLY, 0065-0843-0A

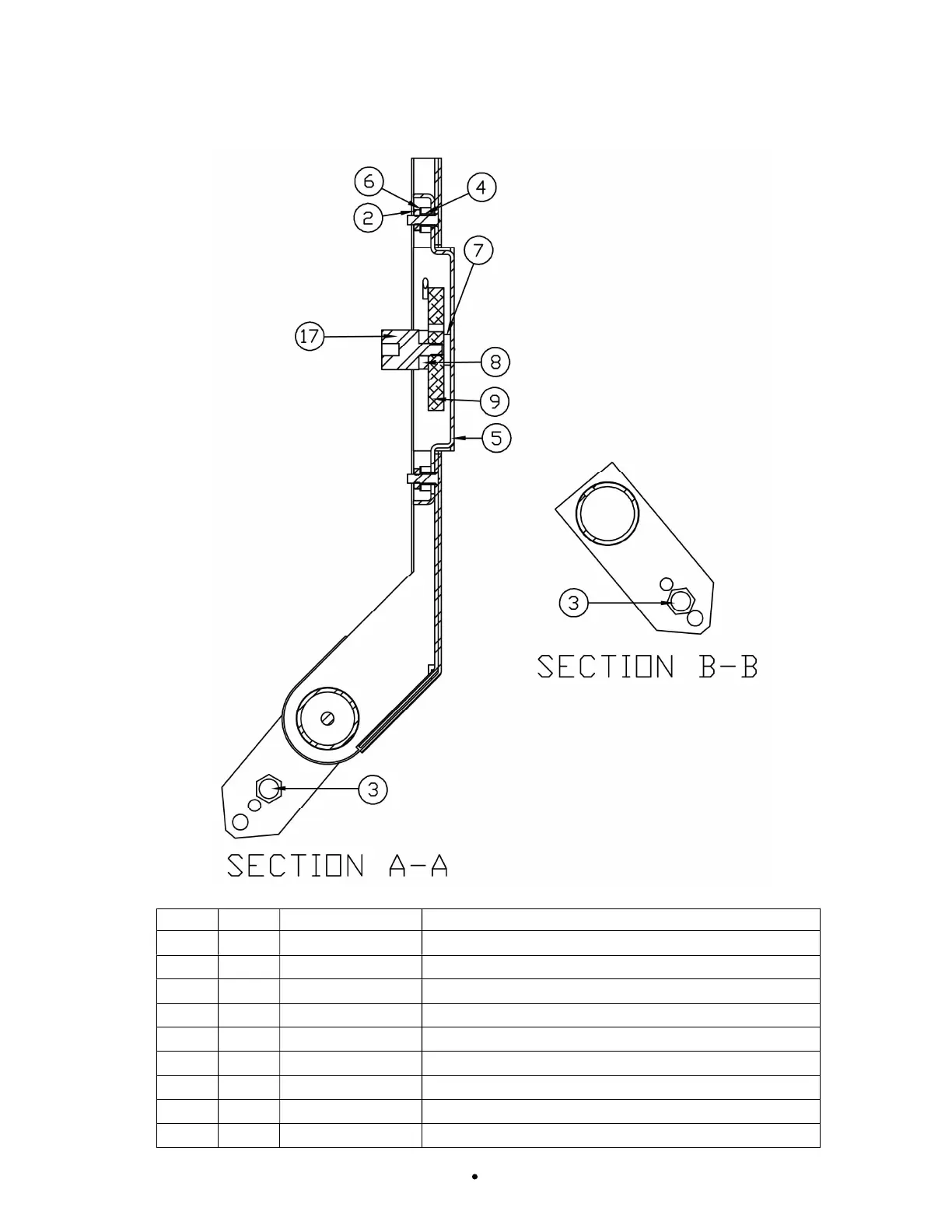

SECTION A-A and SECTION B-B
ITEM QTY PART NUMBER DESCRIPTION
2 8 6013-0295 NUT #10-32 HEX Z/P
3 4 6031-0220 BALL STUD, GAS SPRING, 13 MM DIA, 5/16" - 18
4 8 0031-B014-08 SPACER
5 4 0065-0870-0A FOOT WELDMENT, FP-240
6 8 0065-B635-08 LOAD CELL MOUNT SPRING
7 8 0065-B637-08 LOAD CELL WASHER
8 4 3300-0440-08 LOAD CELL SPACER
9 4 FP-240 LOAD CELL, FLAT PLATE, 240LBS
17 4 6031-0222 1/4-20 VIBRATION MOUNT
To Next Page
