Service and Maintenance

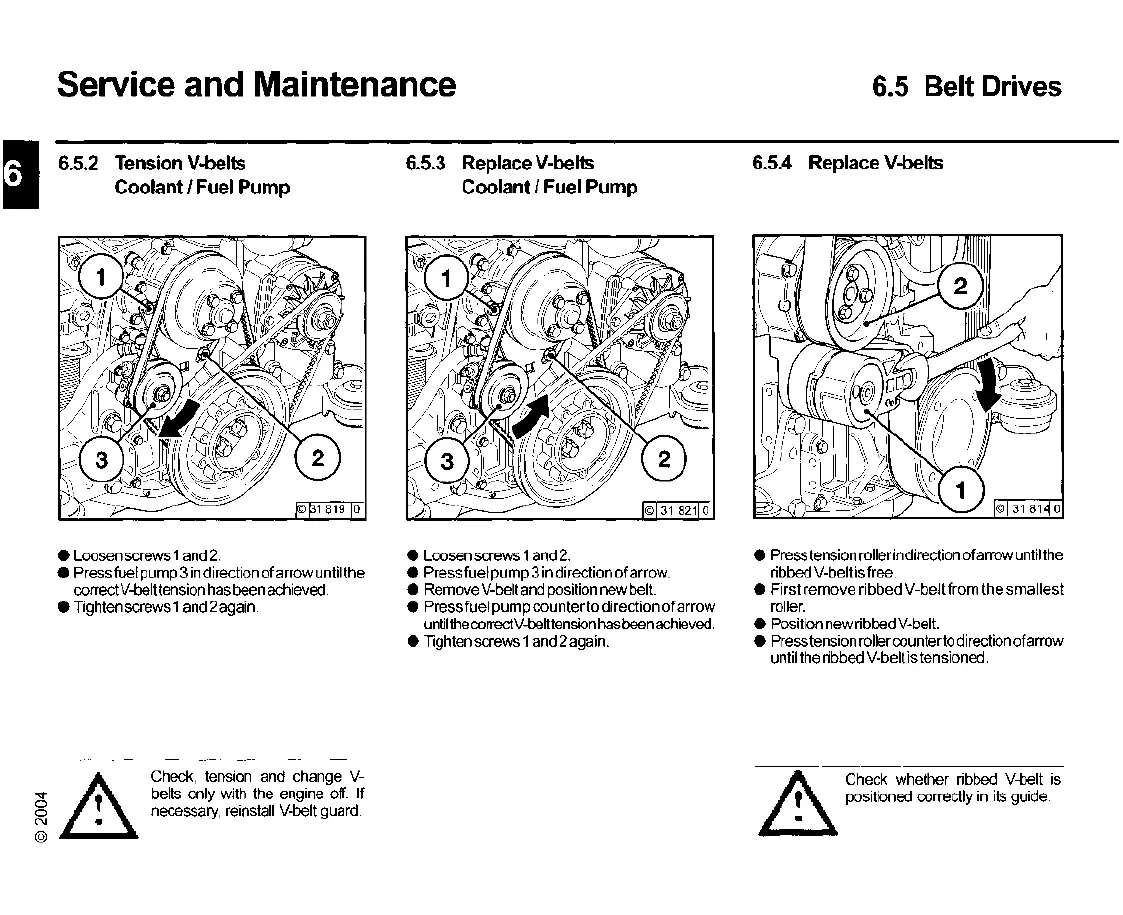

6.5 Belt Drives
I
6.5.2 Tension V-belts
Coolant
I Fuel Pump
• Loosen screws 1and2.
•
Press fuel pump 3 in direction ofarrow until the
correct V-belt tension has been achieved.
• Tighten screws 1 and 2 again.
6.5.3 Replace V-belts
Coolant
I Fuel Pump
• Loosen screws 1and2.
• Press
fuel pump 3 in direction of arrow.
• Remove V-belt and position new belt.
• Press fuel pump counterto direction ofarrow
until the correctV-belttension has been achieved.
• Tighten screws 1and2again.
6.5.4 Replace V-belts
• Press tension roller in directionofarrow until the
ribbed V-belt is free.
• First remove ribbed V-beltfrom the smallest
roller.
• Position new ribbed V-belt.
• Press tension roller countertodirectionofarrow
until the ribbed V-belt is tensioned.
Check, tension and change V-
belts only with the engine off. If
necessary, reinstall V-belt guard.
A Check whether ribbed V-belt is
ili positioned correctly in its guide.
