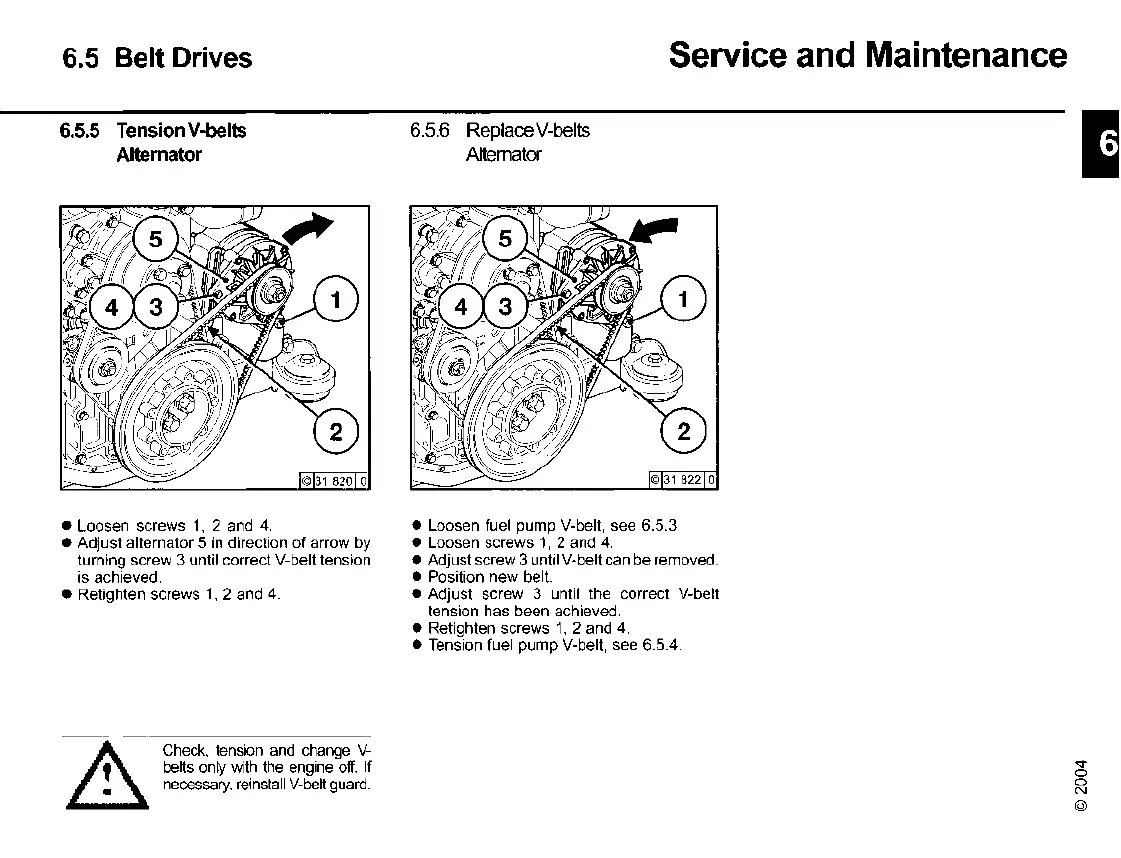

6.5 Belt Drives
6.5.5 TensionV-belts
Alternator
• Loosen screws
1,
2 and
4.
• Adjust alternator 5
in
direction
of
arrow by
turning screw 3 until correct V-belt tension
is achieved.
• Retighten screws
1,
2 and
4.
Service
and
Maintenance
6.5.6
Replace
V-belts
Alternator
• Loosen fuel pump V-belt, see 6.5.3
• Loosen screws
1,2
and
4.
• Adjust screw 3 until V-belt can be removed.
• Position new belt.
• Adjust screw 3 until the correct V-belt
tension has been achieved.
• Retighten screws
1,
2 and
4.
• Tension fuel pump V-belt, see 6.5.4.
E
Check, tension
and
change
V-
belts only
with
the engine
off.
If
necessary, reinstall V-belt guard.
~
