Service
and
Maintenance
I
.
6.5.
7

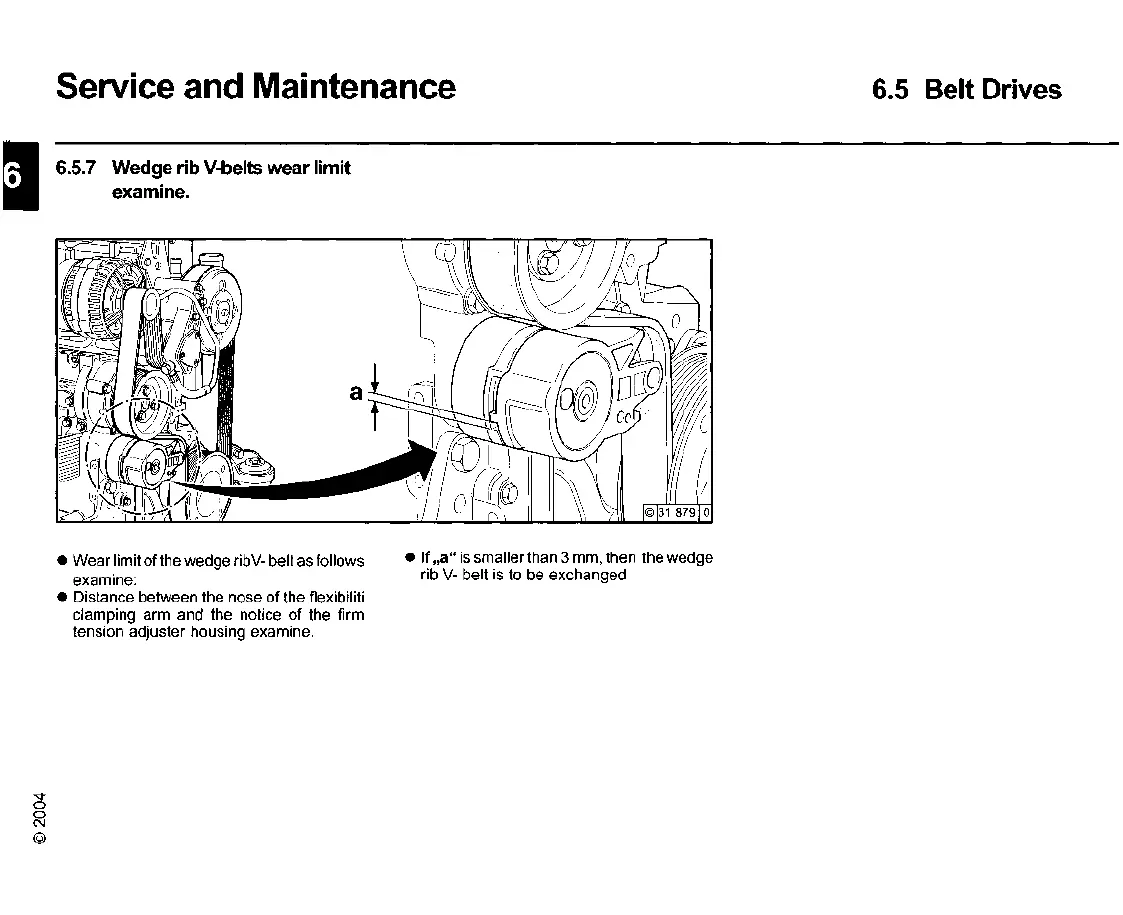

Wedge ribV-belts wearlimit
examine.
6.5 Belt Drives
• Wear limit
of
the wedge ribV- belt as follows
examine:
• Distance between the nose
of
the flexibiliti
clamping arm and the notice
of
the firm
tension adjuster housing examine.
~
o
o
N
@
• If
"a"
is smallerthan 3 mm, then the wedge
rib
V-
belt is to be exchanged
