6.6
Adjustments

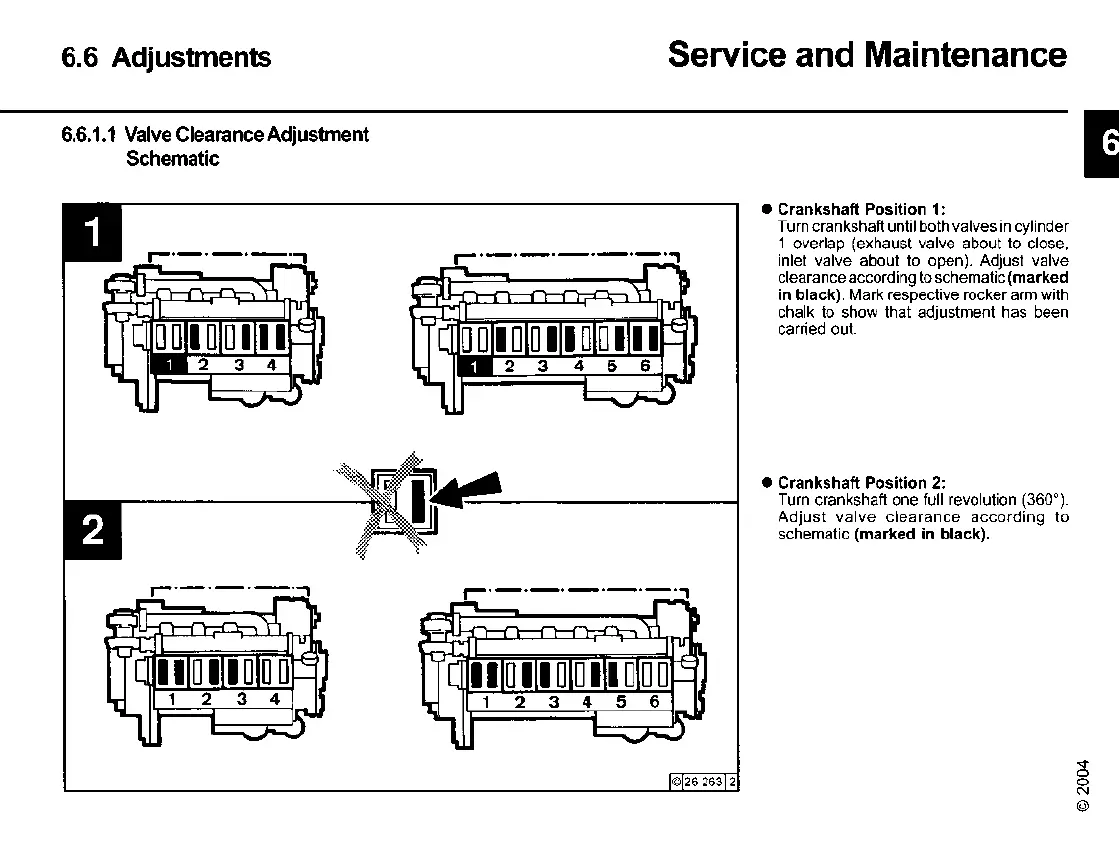

6.6.1.1
Valve ClearanceAdjustment
Schematic
Service and Maintenance
E
• Crankshaft Position 1:
Turn crankshaft until both valves
in
cylinder
1 overlap (exhaust valve about to close,
inlet valve about to open). Adjust valve
clearance according to schematic
(marked
in black).
Mark respective rocker arm with
chalk to show that adjustment has been
carried out.
• Crankshaft Position 2:
Turn crankshaft one full revolution (360°).
Adjust
valve
clearance
according
to
schematic
(marked in black).
-q-
o
o
N
©
