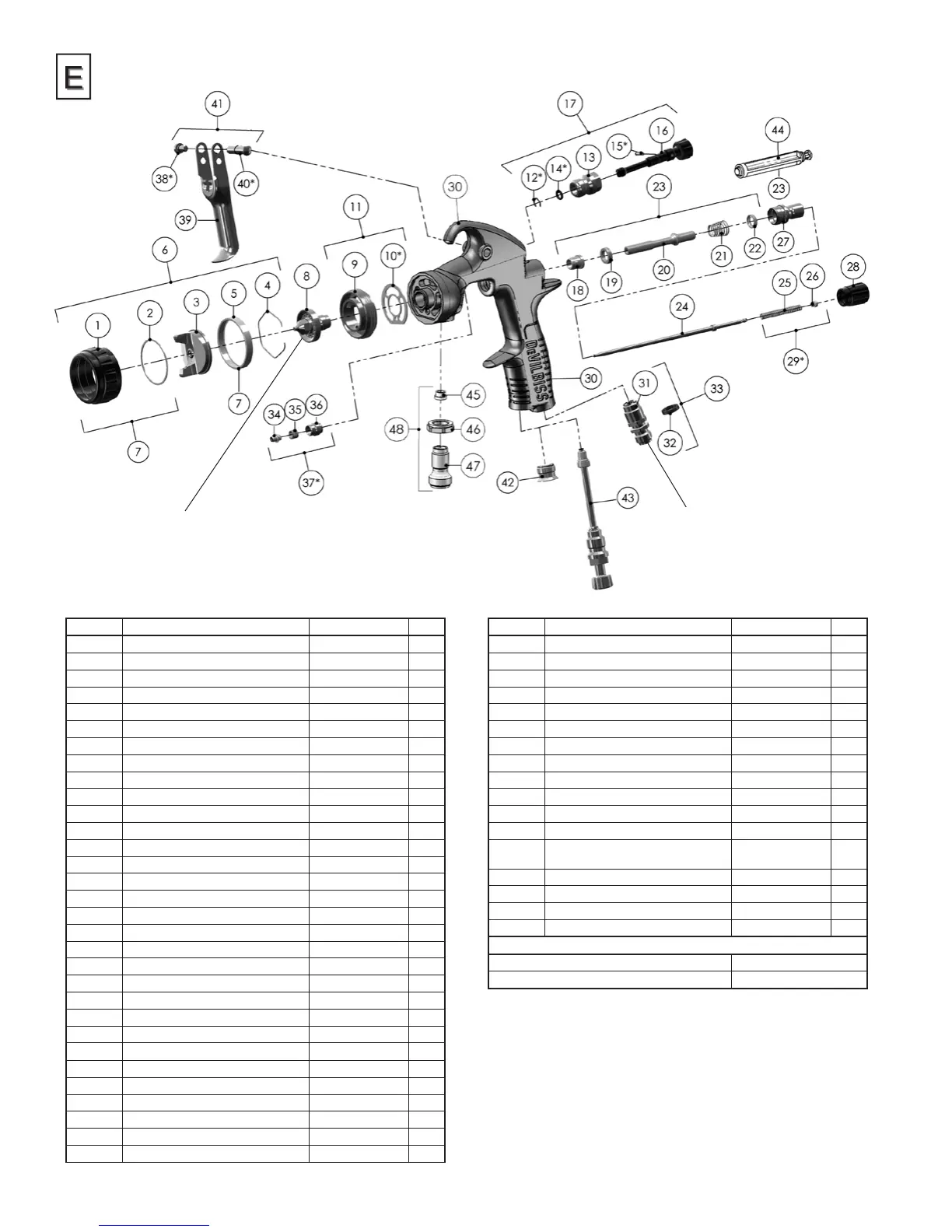

REF. NO. DESCRIPTION PART NO. QTY
1 Air Cap Retaining Ring 1
2 Slip Ring 1
3 Air Cap 1
4 Air Cap Retaining Clip JGA-156-K10 1
5 Retaining Ring Seal 1
6 Aircap & Ring See chart 1 p11 1
7 Air Cap Retaining Ring & Seals 702725 1
8 Fluid Nozzle See chart 2 p11 1
9 Spray head 1
*10 Spray head Seal 702726 1
11 Spray head kit SN-69-K 1
*12 Circlip 1
13 Valve Body 1
*14 O Ring 1
*15 Spreader Valve Pin 1
16 Spreader Valve Adjusting Knob 1
17 Spreader Valve Assembly PRO-408-BL-K 1
18 Front Valve Seal 1
19 Valve Seat 1
20 Spindle 1
21 Air Valve Spring 1
22 Rear Valve Seal 1
23 Air Valve Kit 703530 1
24 Fluid Needle See chart 2 p11 1
25 Needle Spring 1
26 Spring Pad 1
27 Housing & Seal Kit SN-66-K 1
28 Fluid Adjusting Knob SN-67-BK-K 1
*29 Needle Spring Kit PRO-472-K3 1
30 Gunbody 1
31 Air Inlet 1
REF. NO. DESCRIPTION PART NO. QTY
32 Colour ID Ring Kit (4 Colours) 702735 1
33 Air Inlet Kit 702734 1
34 Needle Packing 1
35 Packing Spring 1
36 Packing Nut 1
*37 Packing, Spring and Packing Nut Kit 702731 1
*38 Trigger Screw 1
39 Trigger 1
*40 Trigger Stud 1
41 Trigger, Stud & Screw Kit SP-617-CR-K 1
42 Plug 1
43 Cheater Valve (optional) 702737 1
44 Air Valve Service Tool (only included in
the Air Valve Kit 23)
45 Seal 1
46 Lock Nut 1
47 Fluid Inlet 1
48 Fluid Inlet Kit ADV-7-K 1
SERVICE PARTS
Spray Gun repair kit (includes items marked *) PRO-470
Seal and Pin Kit, kit of 5 (items 12, 14 and 15) GTI-428-K5
Air Inlet
Torque to 15 ft-lbs (20 Nm)
Use medium strength thread sealant
(i.e. Devcon #2242 Blue or equivalent)
on threads
Fluid Nozzle
Torque to 13–15 ft-lbs (18–20 Nm)
