AIR VALVE INSTRUCTIONS
Servicing Air Valve
Reasons to service air valve:
A) Air valve not functioning properly
(may need cleaning).
B) Routine maintenance.
C) Air leaks.

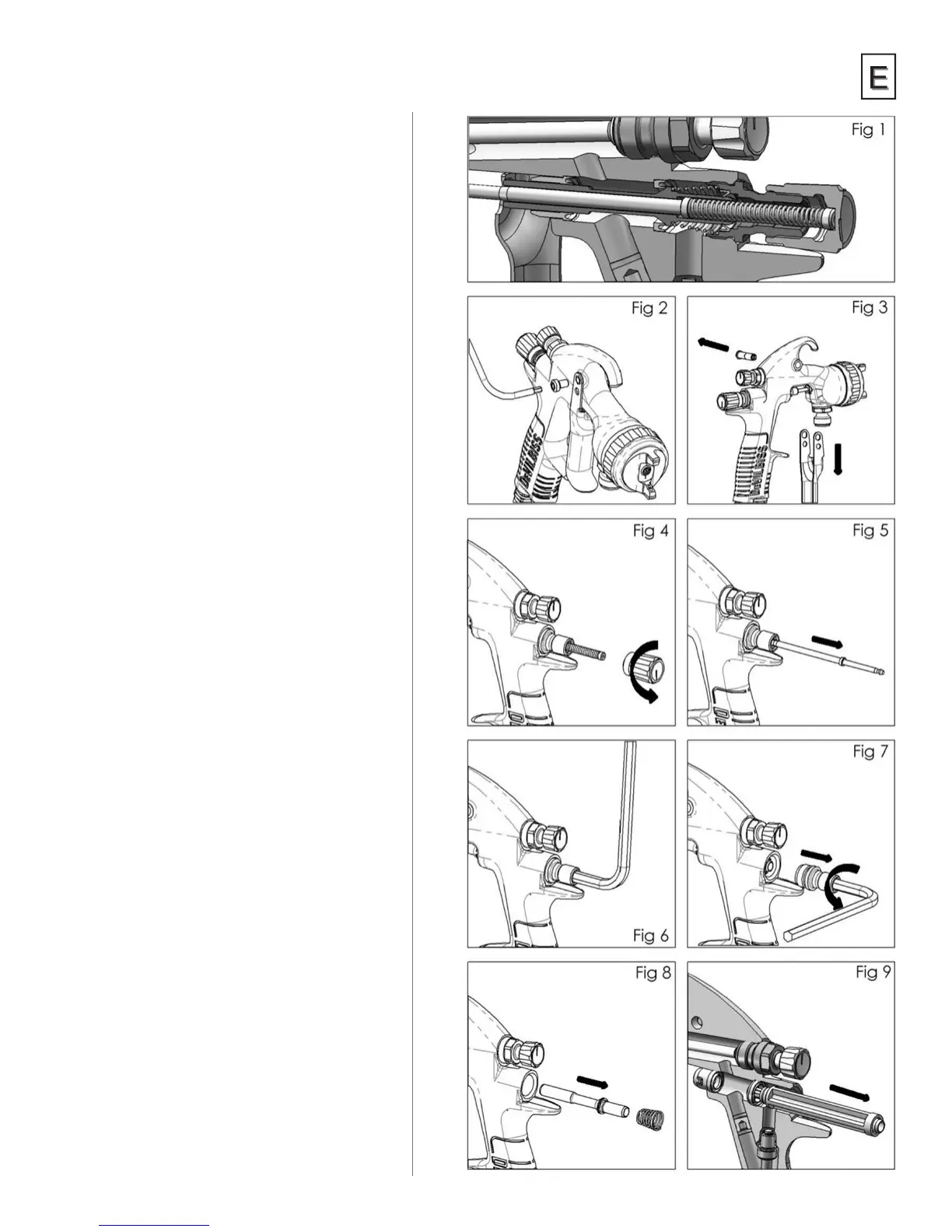

1. Remove trigger screw (38) with Star T20 tool.
(See g 2).
2. Remove trigger stud (40) and remove trigger
(39) (See g 3).
3. Remove uid adjusting knob (28) and spring
(29). (See g 4).
4. Remove uid needle (24) (See g 5).
5. Using a 6mm hex key, remove valve housing
(27). (See Figs 6 and 7).
6. Remove spring (21) and valve spindle (20). (See
Fig 8).
7. Using service tool (44), engage groove behind
the valve seat (19) (See Fig 9).
To Next Page
