TB-1022
4

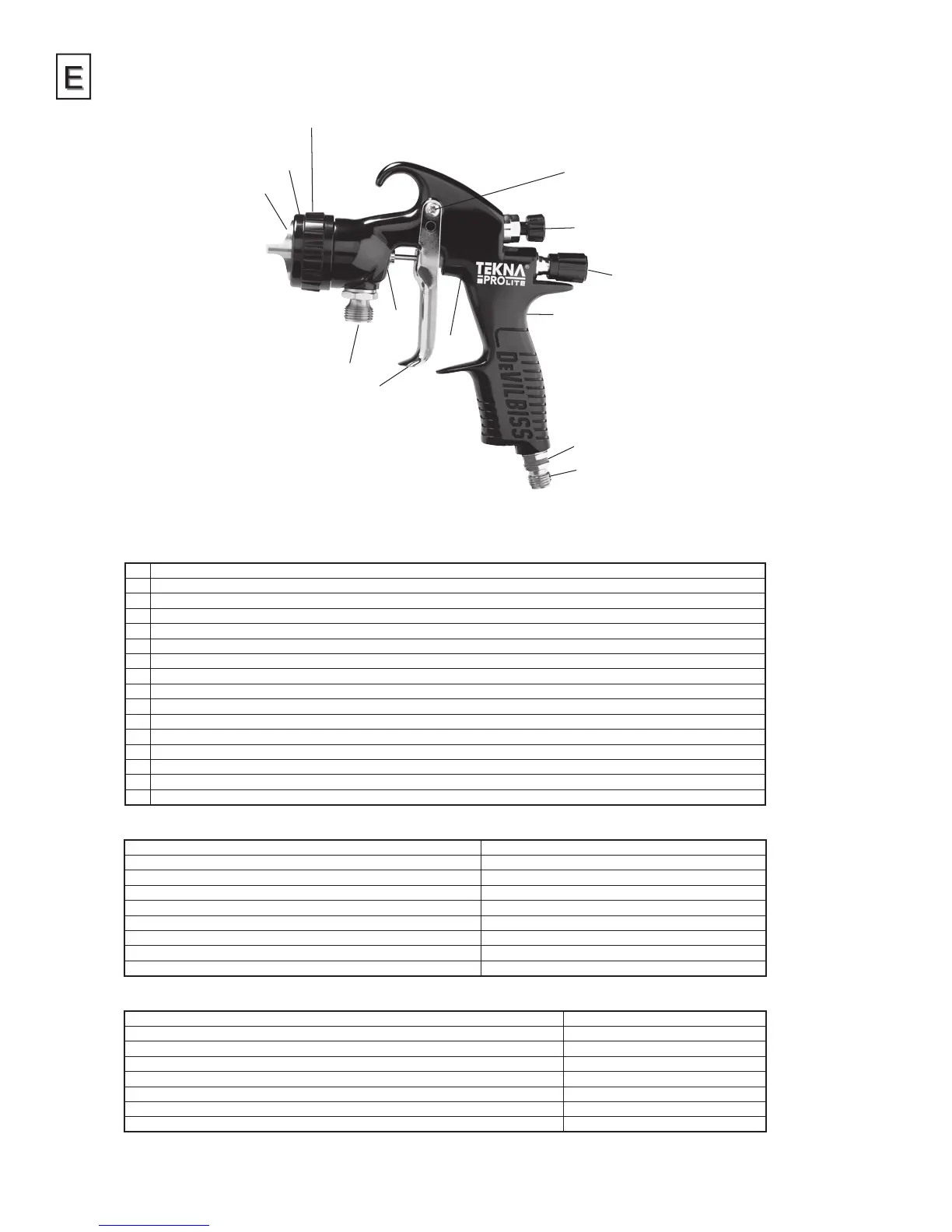

Construction Features
1 Air Cap (nickel plated brass for long durability)
2 Air Cap Retaining Ring (allows easy rotation of air cap)
3 Fluid Nozzle (not visible, ideal for automotive topcoat systems)
4 Fluid Needle (not visible)
5 Fluid Inlet (3/8 BSP thread)
6 Air Inlet (universal thread, accepts G 1/4 & 1/4 NPS)
7 Self Adjusting Needle Packing (packing not visible, for long packing life)
8 Trigger (ergonomic for comfort)
9 Trigger Stud & Screw (easy replacement design)
10 Fan Air Adjustment (stepless regulation for at to round spray)
11 Fluid Adjustment (stepless regulation of uid volume)
12 Removable Spray Head (not visible, for long gun service life)
13 Interchangeable Colour ID System (4 coloured rings supplied)
14 Forged gun body (ergonomic, good looking & durable, easy to clean)
15 Air Valve (not visible) (design offers low pull force & low pressure drop)
16 Gun acceptable for waterborne and solvent borne applications
Materials of Construction
Gun Body Anodized QuickClean®aluminium
Air Cap Nickel plated brass
Fluid Nozzle, Fluid Needle, Fluid Inlet, Trigger Stud Stainless steel
Spray Head, Air Cap Retaining Ring, Knobs, Handle Plug Anodized aluminium
Springs, Clips, Screws Stainless steel
Seals, Gaskets Solvent resistant
Trigger Chrome plated steel
Air Inlet, Body Bushing, Spreader Valve Body, Air Valve Nut Chrome plated brass
Air Valve Assembly Aluminum
Specifications & Technical Data
Air Supply Connection Universal 1/4" BSP and 1/4" NPS
Maximum Static Air Inlet Pressure P1 = 12 bar (175 psi)
Nominal Gun Air Inlet Pressure for HVLP Models – HV40 cap (with gun triggered) 1.2 bar (17 psi) (for compliance)
Nominal Gun Air Inlet Pressure for High Efciency Models – TE40 cap (with gun triggered) 2.0 – 3.5 bar (29 – 50 psi)
Air Consumption See Chart 1 on page 11
Fluid Supply Connection 3/8" BSP
Service Temperature 0 to 40°C (32 to 100°F)
Gun Weight (gun only) 500g (17.6 oz.)
1
2
3, 4, 12
5
9
10
11
14
13
6
8
7
15
