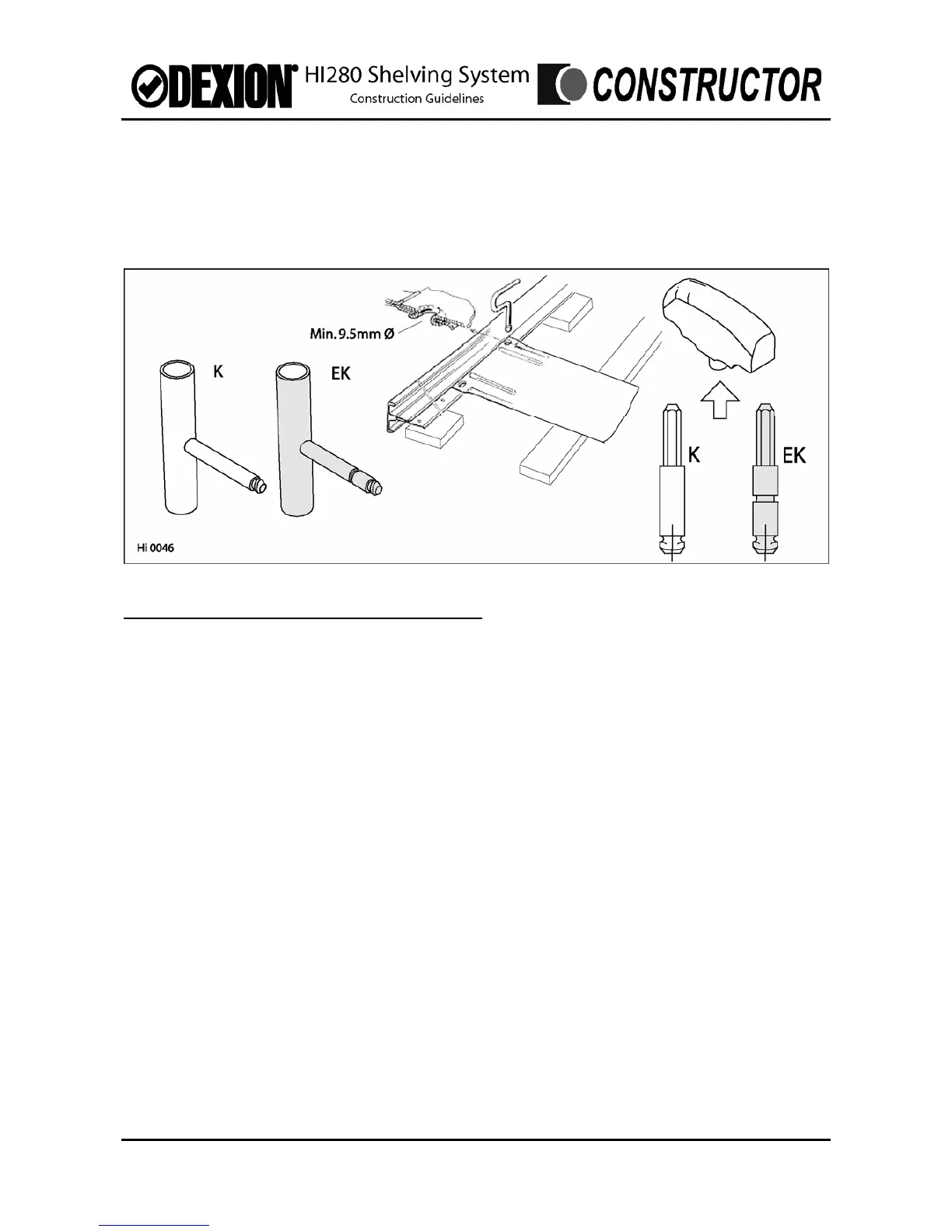

When swaged connections are being used it is important to use the correct type of tool
corresponding with the type of upright (i.e. use the ‘K’ tool for the ‘K’ upright, and the ‘EK’ for the
‘EK’ upright).
If the resultant hole through the swage measures less than 9.5mm diameter, the tool is worn and
needs replacing. Each tool has an approximate life of 1000 swages. The ‘K’ tools have a silver
appearance, and the ‘EK’ tools a yellow appearance with a groove around the shaft.
Build Procedure, Line and Level, and Fix Down
Assembled frames will be raised into position, with beams and shelves being fitted at appropriate
levels.
The exact sequence adopted will vary according to the style of each installation, ie. height, access
equipment available, and the phasing, either across or along the shelving runs.
Generally smaller, low rise installations can be raised manually, whilst larger and taller installations
will need the assistance of specialist lifting equipment such as fork trucks and scissor lifts.
The job specific ‘Method Statement’ prepared by the designer and construction department will
detail the appropriate sequence, paying particular attention when to line, level and fix down.
Building Hints
Use only the correct levelling plates, that correspond to the baseplate.
They must never be used to form a stack higher than 20mm.
Issue: June 2005 Section B – Construction Guidelines Page B.6
