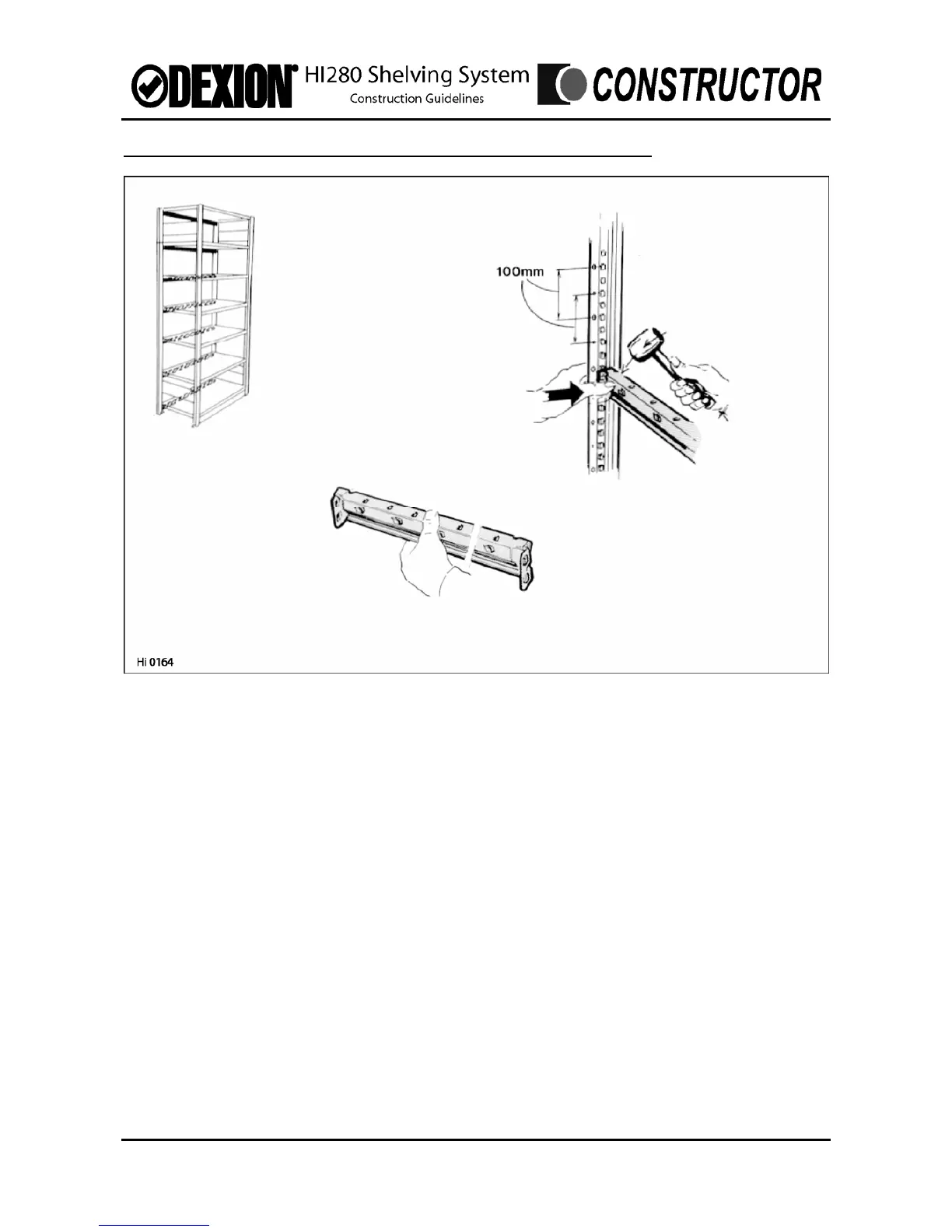

ASSEMBLY INSTRUCTIONS – SHELF BEAM or MEDIUM SPAN BEAM
Note: Before assembling, check that the hooks on both the upright and beams are not
damaged.
Use the oval and round holes in the upright as a visual guide for aligning the shelves.
The height to the top of the beam, corresponds to the desired shelf height.
A. The short span shelf beam has 2 hooks at either end and supports the rear of the shelf,
and is therefore only positioned between the rear uprights.
B. The medium span beams which have 3 hooks at either end are used in pairs, the first
being fitted between the rear uprights with the second between the front uprights.
C. Check and ensure all connections are secure.
Issue: June 2005 Section C –Assembly Instructions Page C.7
