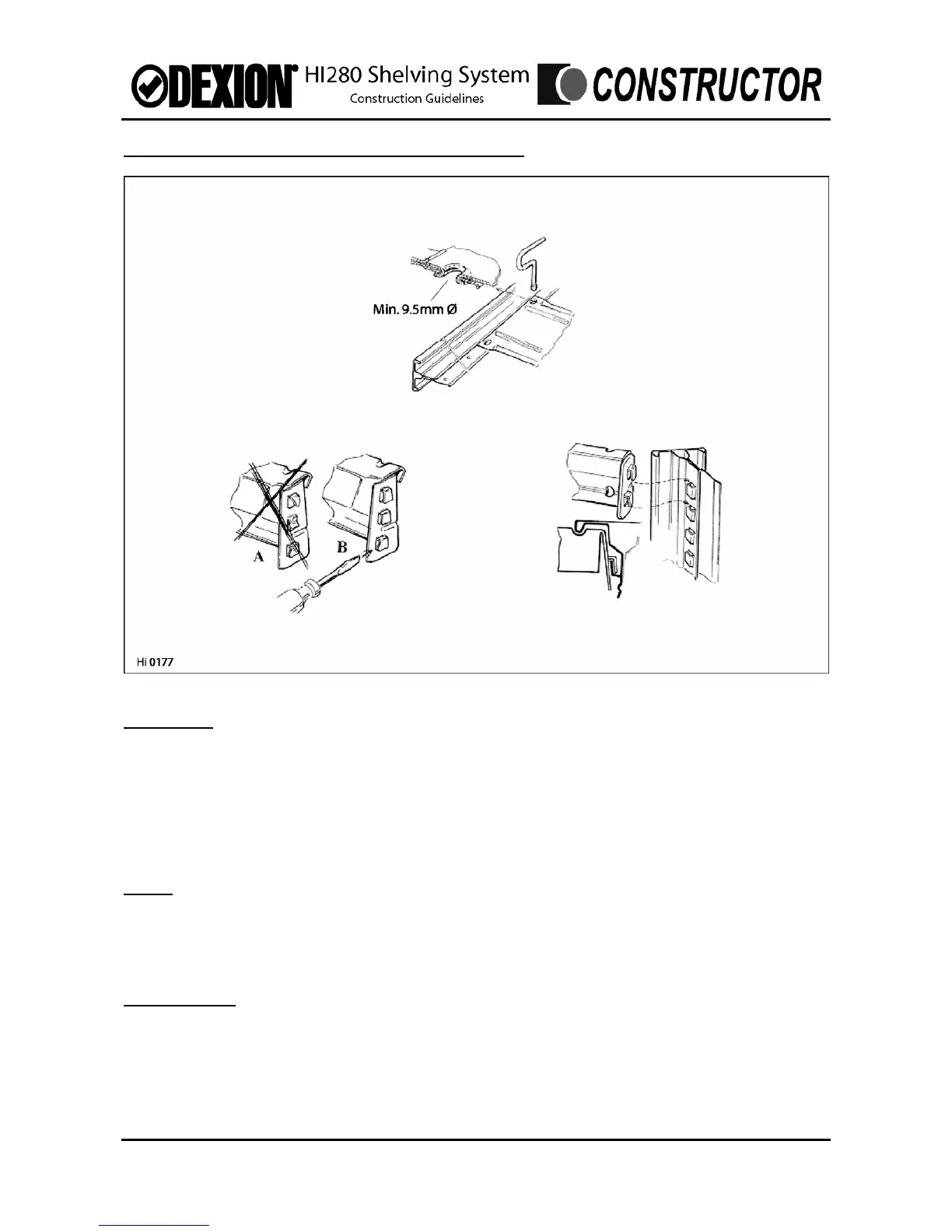

ASSEMBLY INSTRUCTIONS – IMPORTANT CHECKS
Swage Tool
Check the condition of the swage tool for wear. If the resultant hole through the swage measures
less than 9.5mm diameter, the tool is worn and should be replaced.
Ensure the correct tool is being used, use the ‘K’ tool for the ‘K’ upright and the ‘EK’ tool for the
‘EK’ upright.
The ‘K’ tool has a silver appearance and the ‘EK’ tool a yellow appearance with a groove around
the shaft.
Hooks
Check the condition of the hooks on beams, shelves, and uprights before assembling parts.
A slightly deformed hook (B) may be carefully adjusted with for instance a screwdriver. Otherwise
(A) the part shall be replaced.
Hook Location
Ensure hooks on beams, shelves etc. are correctly located before loading the shelving.
Issue: June 2005 Section C –Assembly Instructions Page C.2
