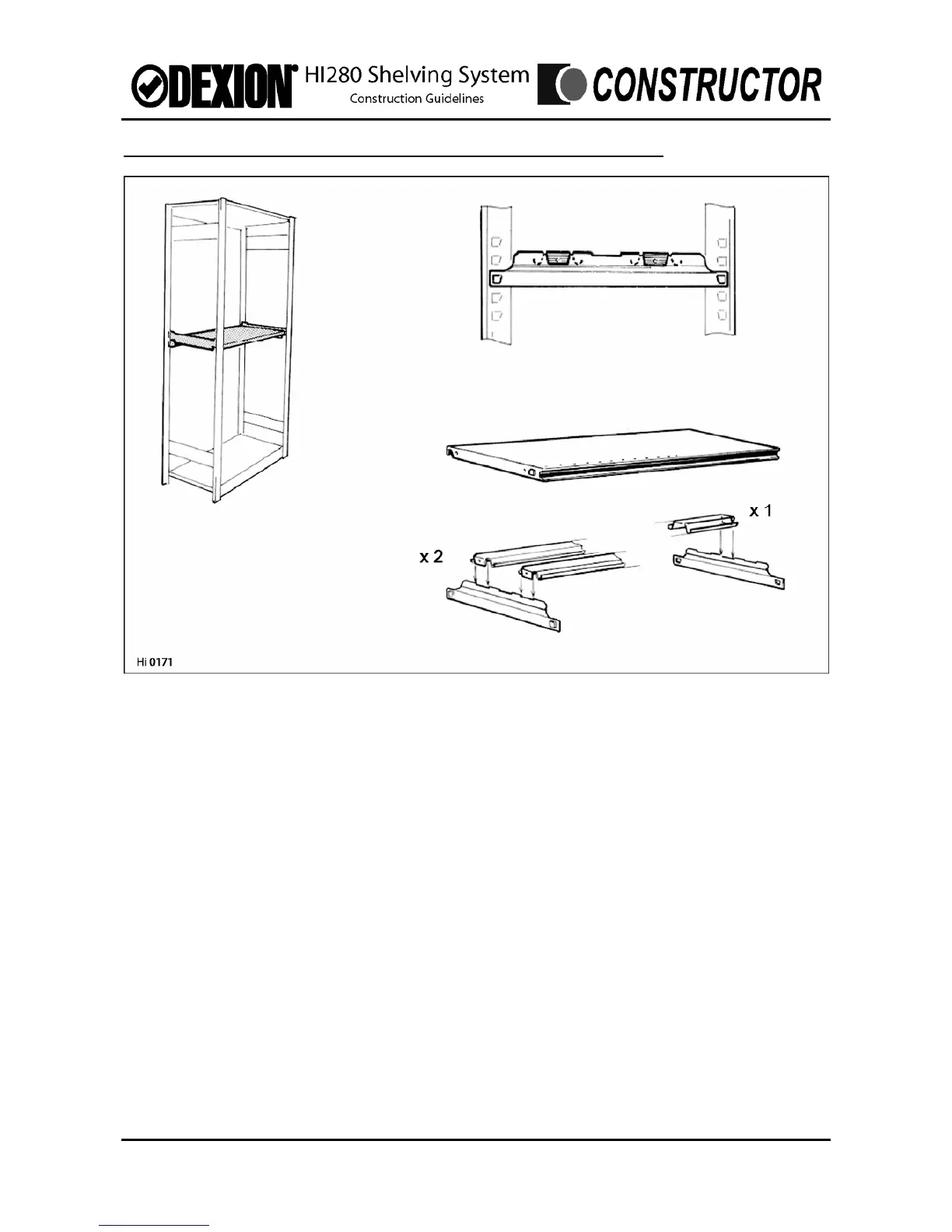

ASSEMBLY INSTRUCTIONS – SHORT SPAN SHELF REINFORCEMENT
Note: Shelf reinforcement is an option that can be used to increase the strength of a shelf.
The number of reinforcement bars (none, one, or two) will depend on the required
loading.
The reinforcement is fitted before the shelf is installed.
A. Assemble the shelf beam at the required height between the rear uprights.
B. Assemble the reinforcement supports between the rear and front uprights, and hang
the reinforcement bars over the supports.
When using 1 reinforcing bar, the bar is placed in the middle.
When using 2 reinforcing bars, the bars are placed at the end positions.
C. Assemble the shelf as previously described.
D. Check and ensure all connections are secure.
Issue: June 2005 Section C –Assembly Instructions Page C.9
