ASSEMBLY INSTRUCTIONS – MESH BACK CLADDING
Note: The clip used for attaching mesh back cladding is the same as that used for the solid
sheet cladding.

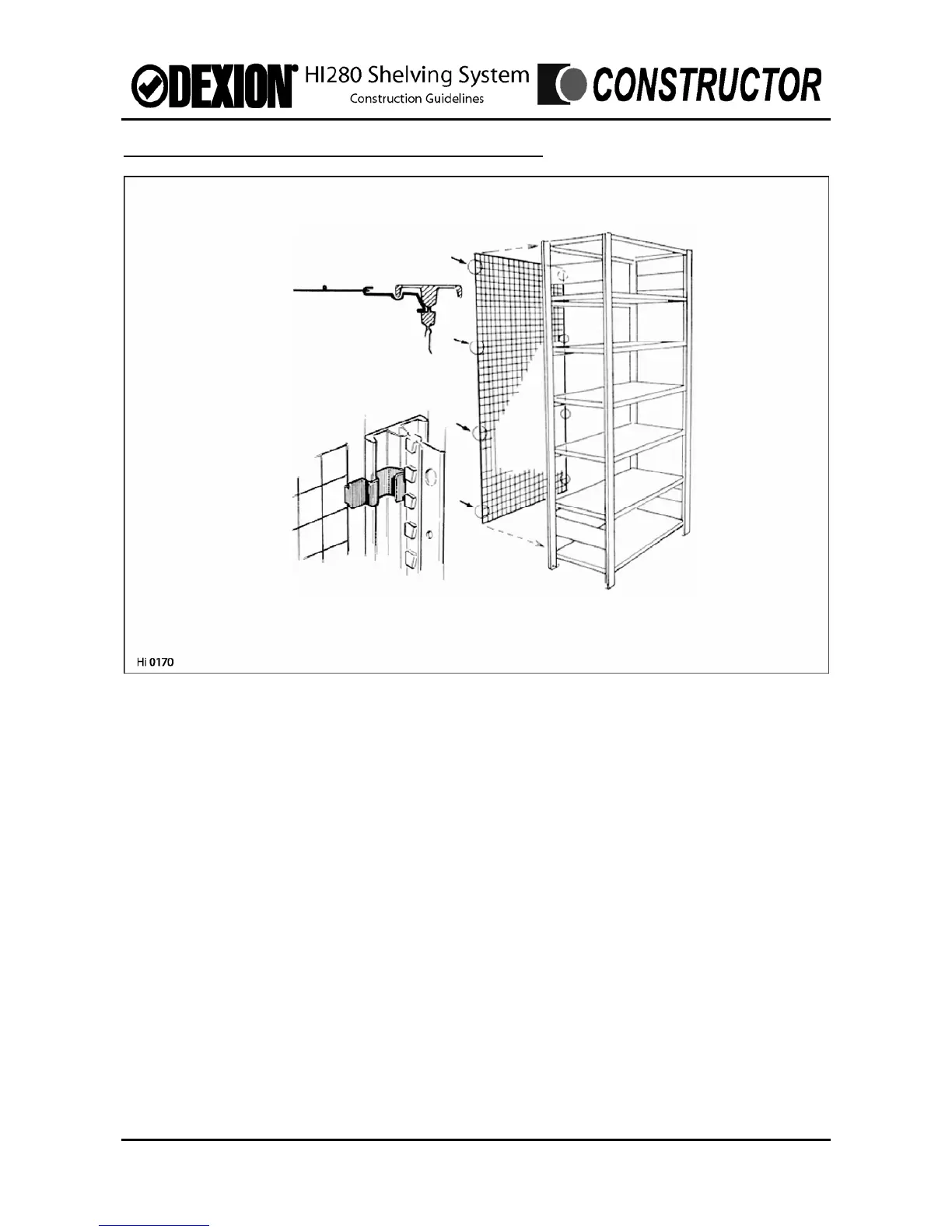

A. Place the mesh sheet between the rear uprights.
B. Hook the clips around the wire, and press the clip into upright as shown above.
C. Each panel is secured with 8 clips, 4 either side. Positioned at top, bottom, and evenly
spaced in between.
Issue: June 2005 Section C –Assembly Instructions Page C.14
