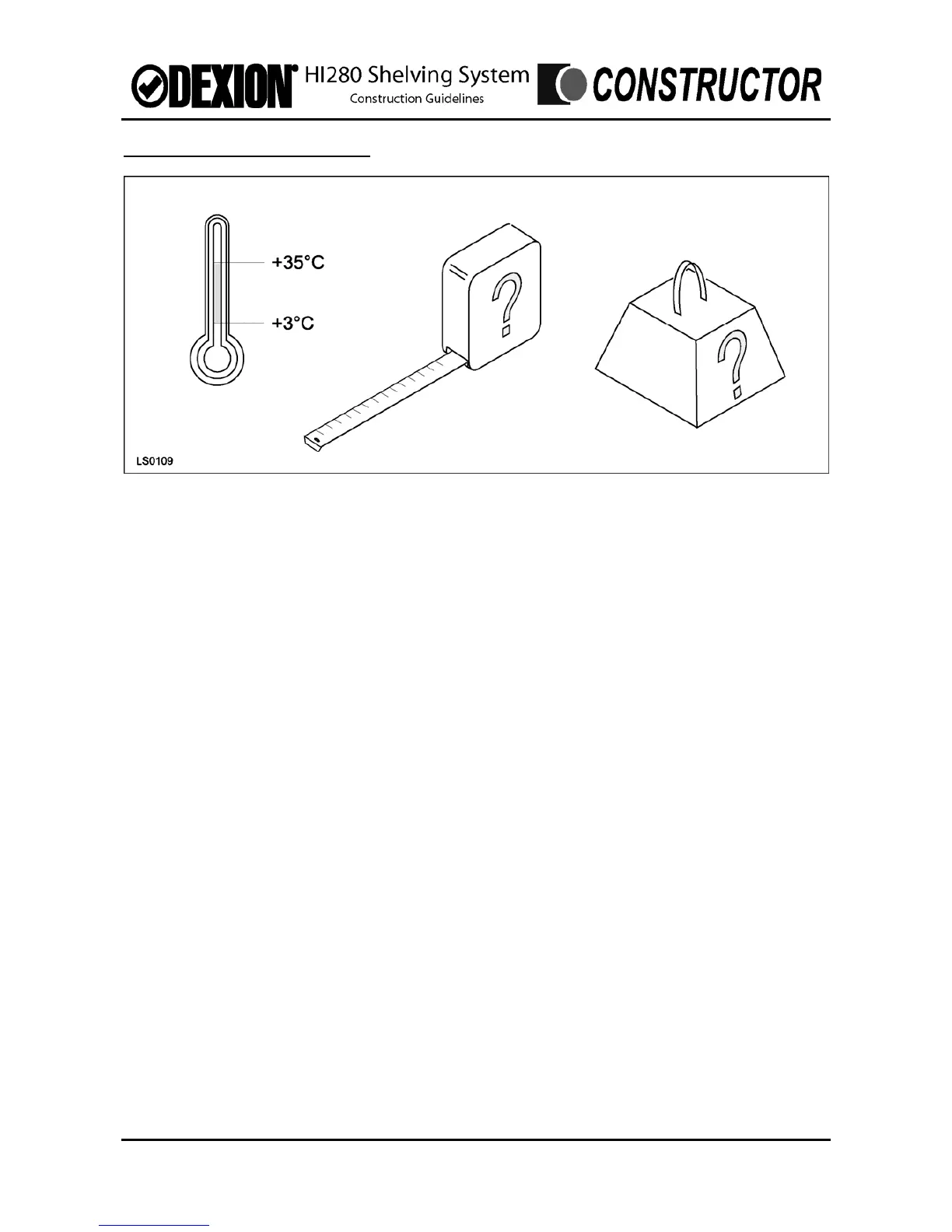

PARAMETERS OF THE SYSTEM
The Dexion HI280 product has been designed to operate within the following standard parameters.
Consult product support if considering applications outside of this range.
Hand Loaded HI280 is a hand loaded shelving system, which is NOT suitable for loading by
fork lift truck. (It is not a pallet racking system).
Loads Loads should be stable and self supporting, with a maximum unit weight within
the safe working recommendations of the EU manual handling directive.
Rack Height Low rise, standard heights of, 1000, 1600, 2100, 2300, 2500, and 3000mm.
High rise, heights 3100 to 12,000mm in 100mm increments.
Shelf Pitches Short span bays, shelf pitches up to 800mm, in 25mm increments.
Medium span bays, shelf pitches up to 1500mm, in 25mm increments.
Bay Lengths Short span bay lengths of 900, 1000, and 1290mm.
Medium span bay lengths of 1500, 1750, 2000, 2250 and 2500mm.
Frame Widths Short span frame widths of 300, 400, 450, 500, 600, and 800mm.
Medium span frame widths of 500, 600, 800, and 1000mm.
Warehouse Floor The floor which is the responsibility of the client should generally be of a solid
CONCRETE construction designed to accept the point loads imposed by the
shelving legs. Installations on other types of floor, such as timber, bitumen and
tarmac, should be specifically designed to suit the strength of that floor.
Dry Conditions Components and load data are based on dry internal warehouse applications.
Temperature +3°c to +35°c. Although the system principally has a pre-galvanised finish
Range there are some painted components, and the medium span can incorporate
chipboard shelving. Therefore applications in Chill and Cold stores with
temperatures below +3°C, where moisture is likely to be present, need to have
their material finish checked for suitability. Chipboard decking must not be
allowed to become damp.
Issue: June 2005 Section A – Product Introduction Page A.2
