ASSEMBLY INSTRUCTIONS – BASE PLINTH
Note: Before assembling, check that the hooks on both the upright and base plinth are not
damaged.

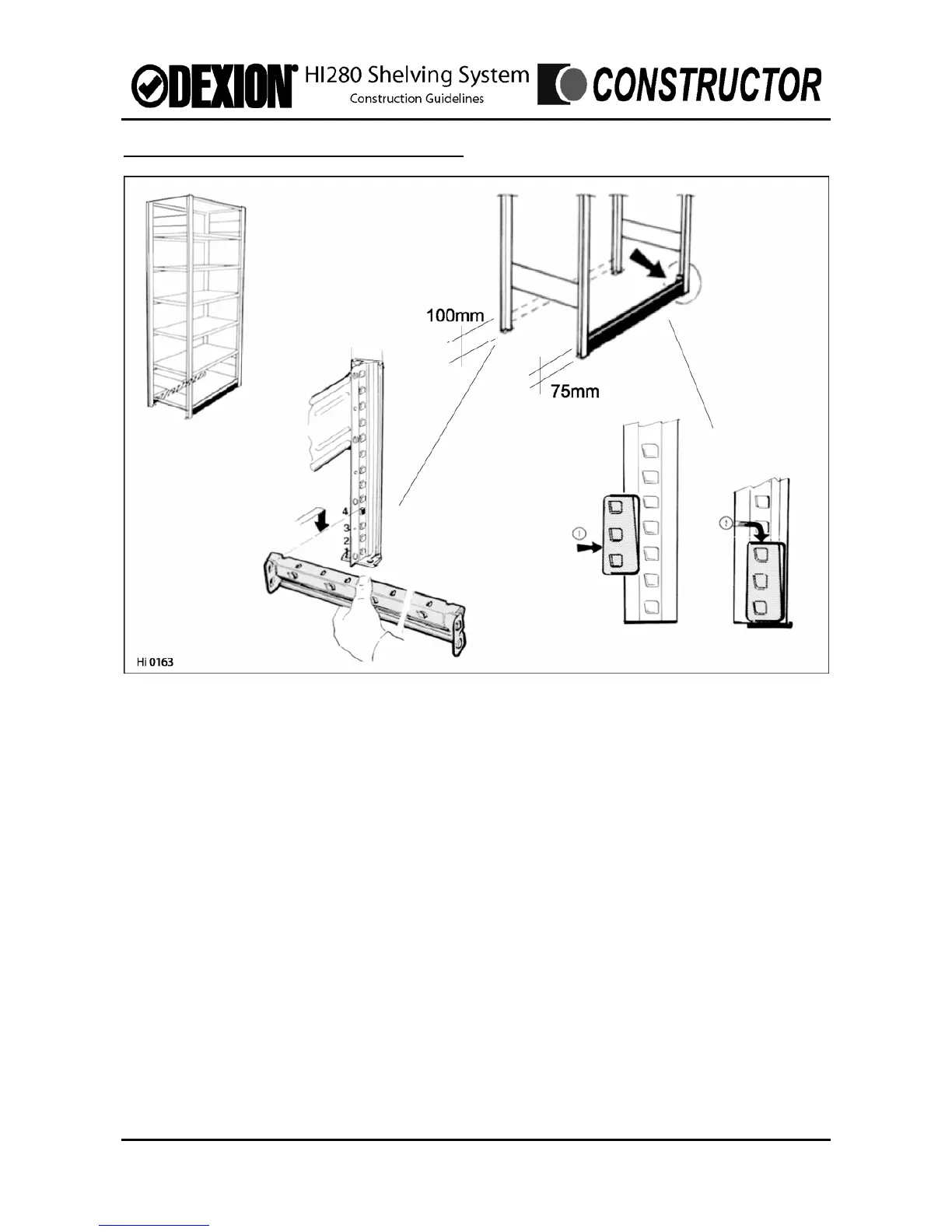

A. The base plinth (which has 3 hooks at either end) is positioned between the front
uprights at a height of 75mm.
B. The back of the bottom shelf is supported as normal with a shelf beam. This shelf
beam (which only has 2 hooks at either end) is positioned between the back uprights at
a height of 100mm (i.e. the fourth hook up).
C. Check and ensure all connections are secure.
Issue: June 2005 Section C –Assembly Instructions Page C.6
