ASSEMBLY INSTRUCTIONS – MESH FRAME CLADDING
Note: Mesh can only be fitted to a frame that is already either battened or battened and
braced. Mesh does not replace these items.
When using swage connections ensure the swage tool corresponds to the type of
upright, i.e. the ‘K’ tool for the ‘K’ upright and the ‘EK’ tool for the ‘EK’ upright.
A. To allow the mesh to pass the batten, the mesh should be installed on the concave
side of the batten (as shown above) with the horizontal bars touching the batten. This
ensures the vertical bars are next to the shelf which eases installation.
B. Each mesh sheet must be secured with 8 fixing brackets, (4 to each upright), these are
positioned at the top, bottom, and the rest evenly distributed in between.

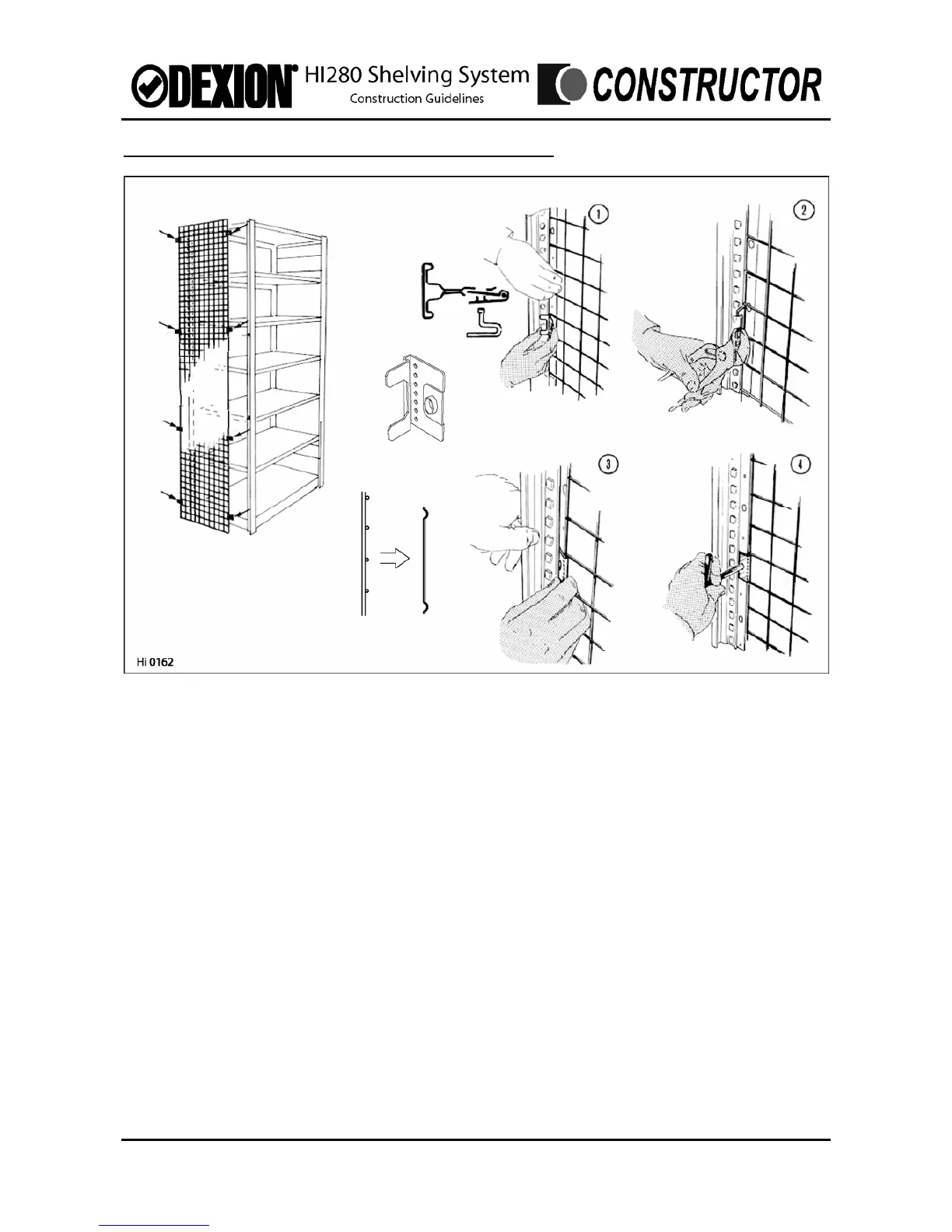

C. Lay the mesh panel alongside an already assembled frame. Fold four brackets around
the mesh wire so that they are aligned with the oval holes in the upright web. (1)(2).
D. Insert the bracket into the U-shaped part of the upright, securing each one in the oval
hole in the upright, by rotating the swage tool through 180°. (3)(4).
E. Assemble the remaining 4 brackets to the second upright.
F. Check and ensure all connections are secure.
Issue: June 2005 Section C –Assembly Instructions Page C.5
