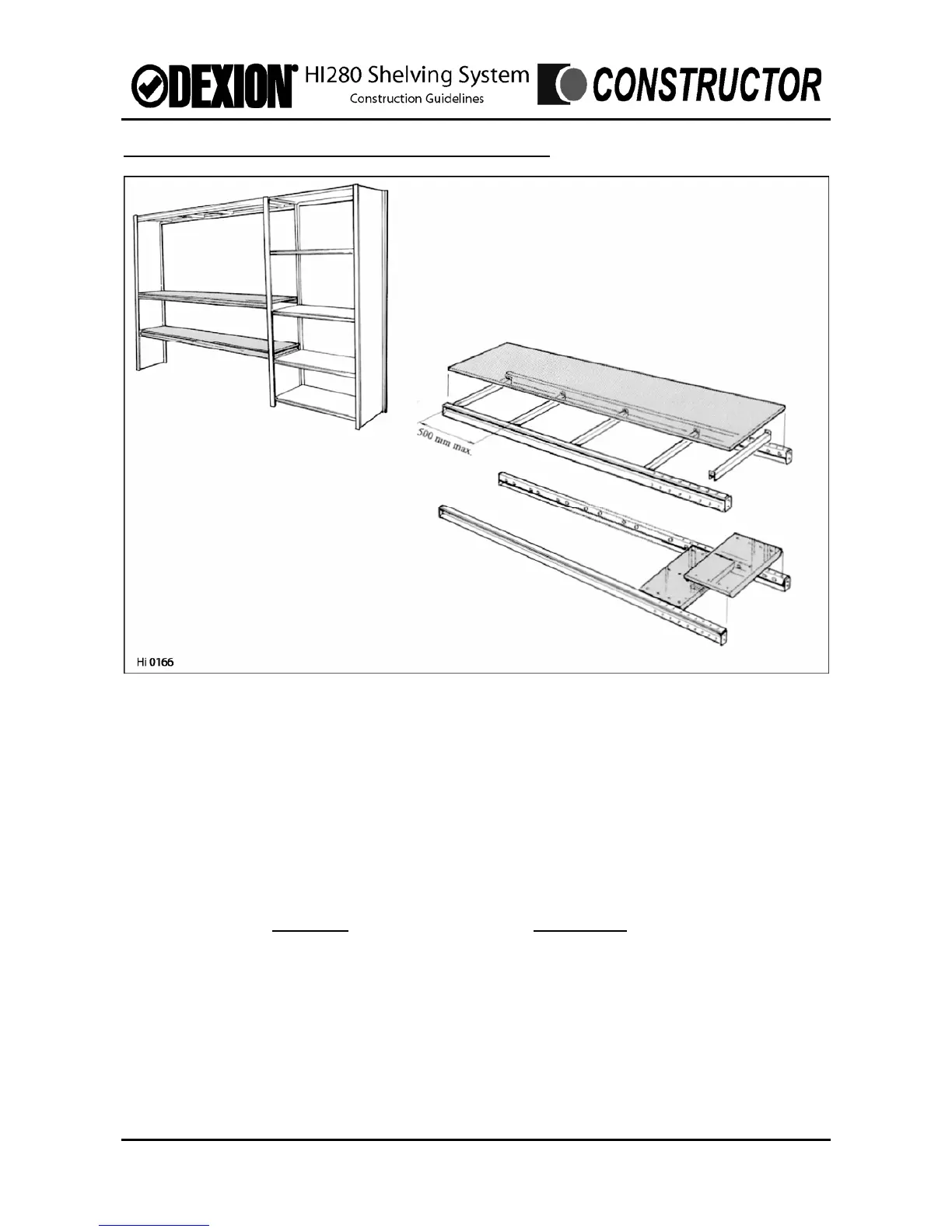

ASSEMBLY INSTRUCTIONS – MEDIUM SPAN SHELVES
Note: Before assembling, check that the hooks on the rear of the beams are not damaged.
A. Install the beams as previously described, and ensure the bay is square before
attempting to install the shelves.
B. Chipboard shelves.
Hang the cross beams over the hooks on the rear of the medium span beams, placing
one at either end, and the rest at a maximum spacing of 500mm.
C. Steel in-fill shelves.
The shelves are hung directly from the hooks on the rear of the medium span beams.
Use the following combination of shelves according to bay length:
Bay length In-fill shelves
1500mm 246-246-246-246-246-246
1750mm 129-246-246-246-246-246-246-129
2000mm 246-246-246-246-246-246-246-246
2250mm 129-246-246-246-246-246-246-246-246-129
2500mm 258-246-246-246-246-246-246-246-246-258
D. Check and ensure all connections are secure.
Issue: June 2005 Section C –Assembly Instructions Page C.10
