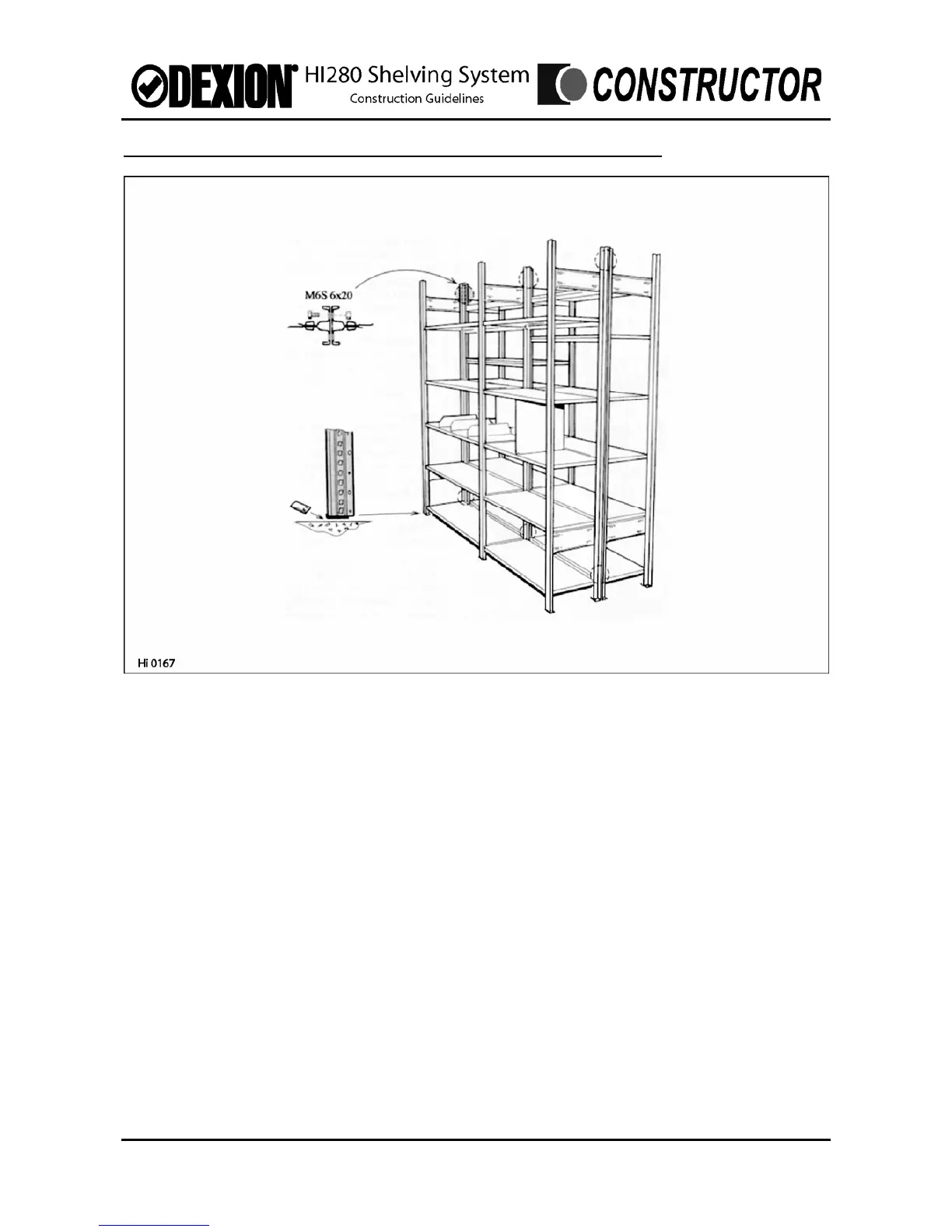

ASSEMBLY INSTRUCTIONS – ASSEMBLING A DOUBLE ENTRY RACK
Note: A double entry rack is when two single rows of shelving are placed back to back.
A. Racks up to 3000mm high.
Connect the back uprights together at the top, and at the bottom using M6x20mm long
fixings through the holes in the face of the uprights.
B. Racks 3100 to 12,000mm high.
Connect the back uprights together at the top, at the bottom, and at maximum 2000mm
centres up the rack, using M6x20mm long fixings through the holes in the face of the
uprights. When using type K uprights these intermediate fixing will need to have holes
drilled on site.
C. If necessary place levelling plates under the rack uprights to ensure the racks are level
and plumb.
Issue: June 2005 Section C –Assembly Instructions Page C.11
