ASSEMBLY INSTRUCTIONS – DRAWERS and TRAYS
Note: All racks fitted with either drawers or trays MUST be securely fixed to the floor to
eliminate the risk of overturning.
The expansion slides, and slide holders both come in left and right hand options.

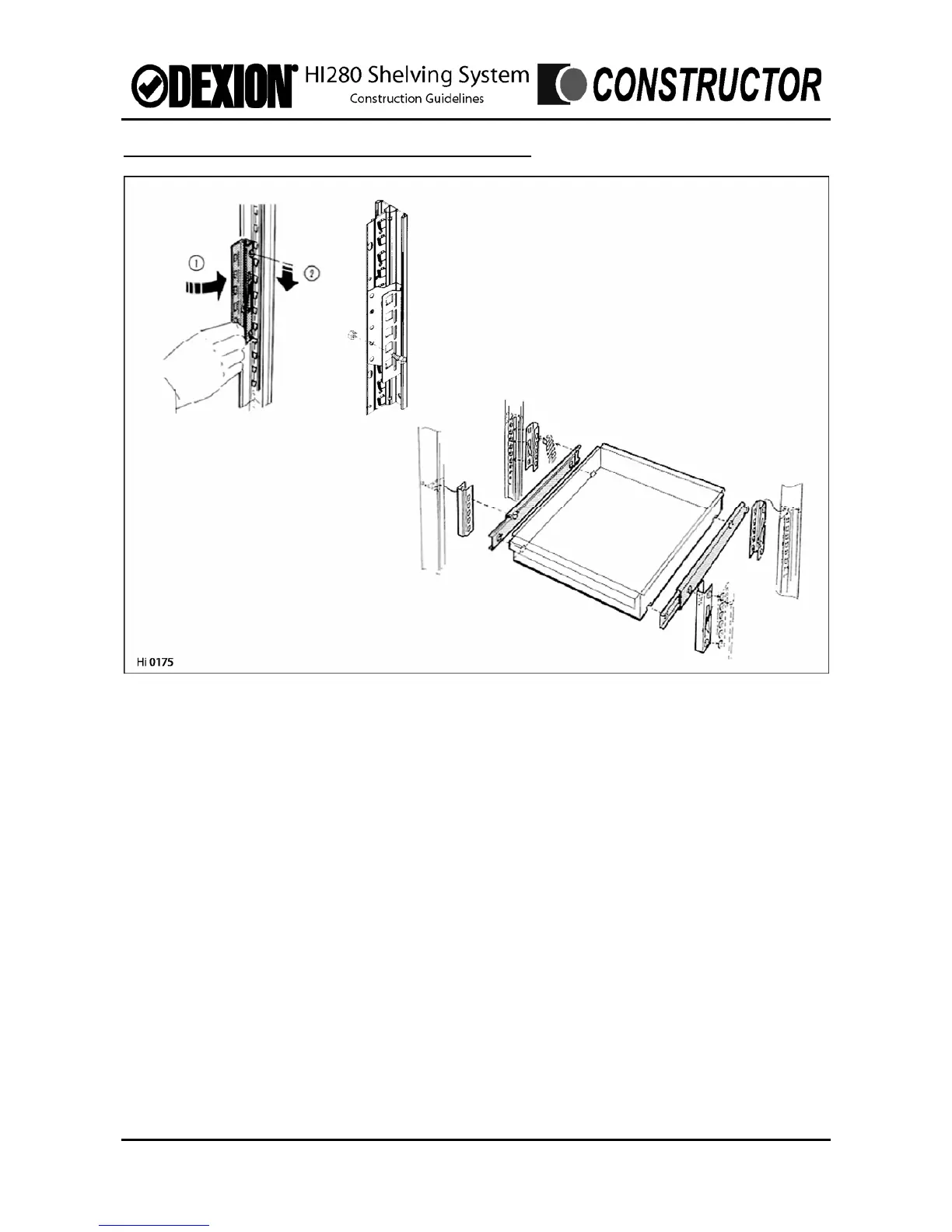

A. Assemble 4 expansion slide holders (1)(2), making sure they are securely fixed to the
upright with a M5x16mm long nut and bolt through the web of the upright.
If you have two or more within the height start with the bottom holder.
B. Assemble the expansion slides by first inserting the tongue at the back of the slide into
the rear holder. Then hang the front of the slide into the front holder.
C. Pull out both slides and hang the drawer/tray from the hooks on the slides.
D. Check and ensure all connections are secure.
Issue: June 2005 Section C –Assembly Instructions Page C.18
