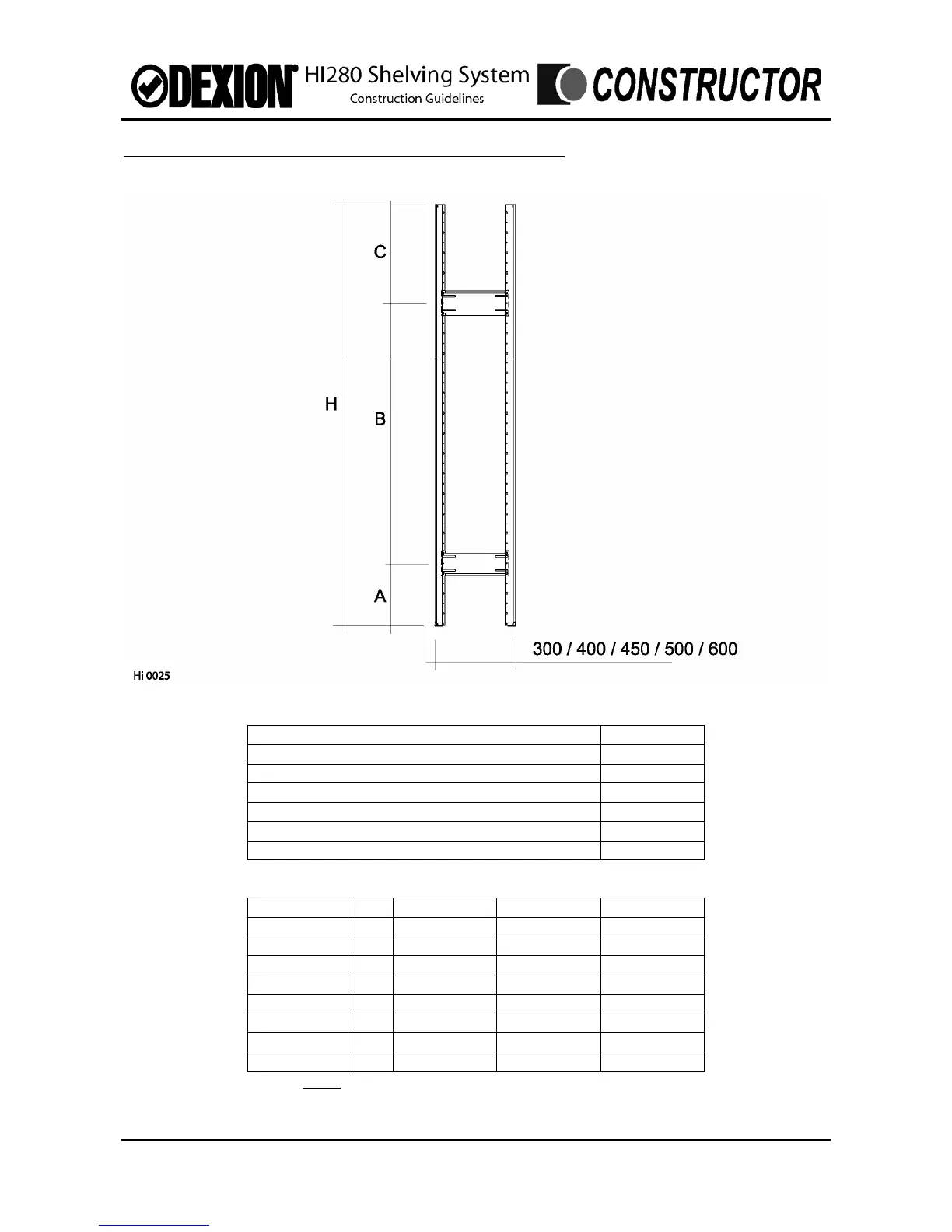

LOW RISE - 2 LIGHT DUTY BATTENS (swaged or riveted).
Component take-off Quantity
Upright 2
Baseplate 2
Upright to baseplate fixing (when required) 2
Light duty batten 2
Rivet 4.8 x 7mm (only for riveted frames) 8
Frame First Batten Top
Height Batten Centres Batten
‘H’ ‘A’ ‘B’ ‘C’
1000mm 211 600 189
1600mm 311 800 489
2100mm 311 1300 489
2300mm 311 1500 489
2500mm 311 1700 489
Note: Riveted battens must be lowered by 50mm
Issue: June 2005 Section E – Frame Assembly Schedule Page E.3
