SECTION F – FULL WIDTH BACK CLADDING SCHEDULE

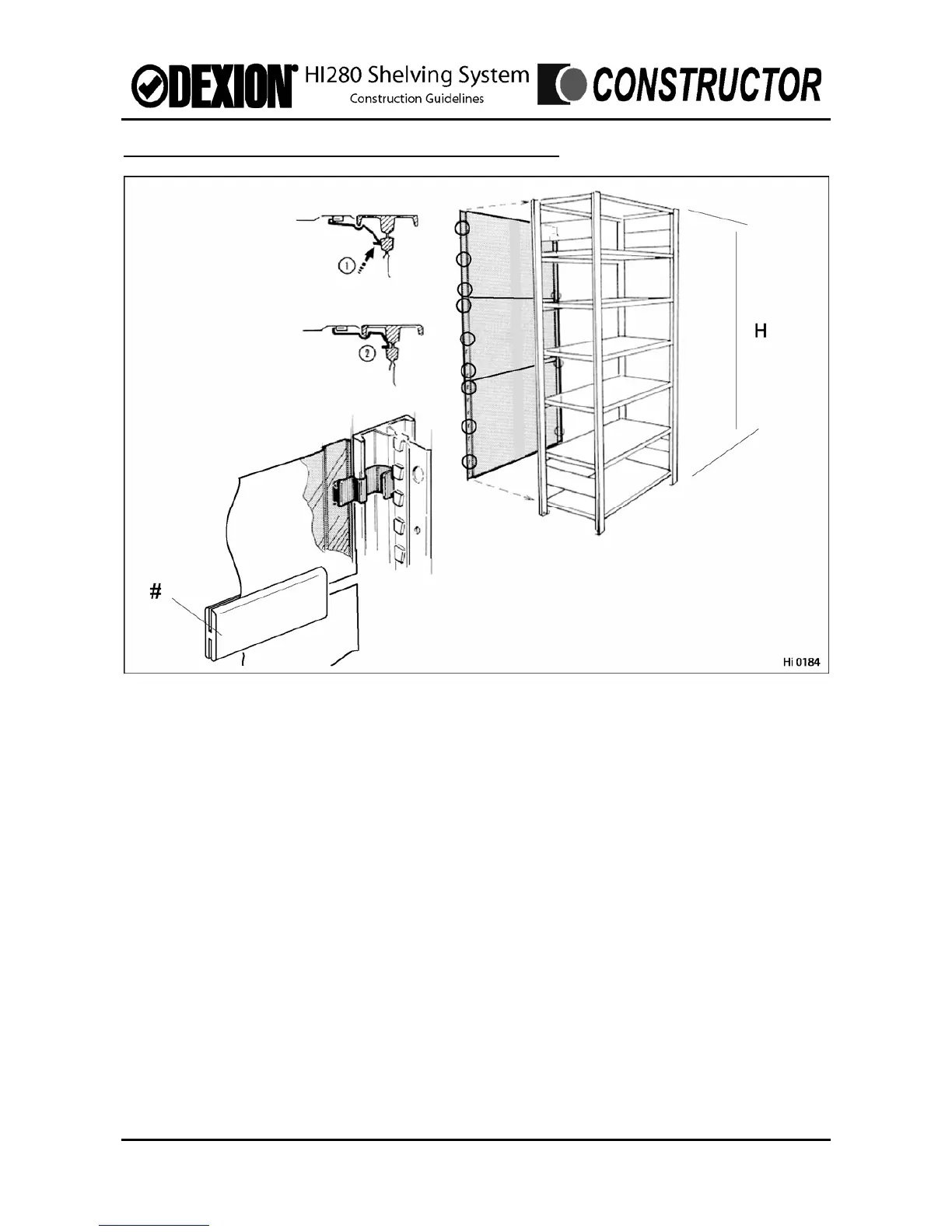

This section details the combination of ‘Full Width Back Cladding Panels’ required to equip each
rack height.
Individual panels have a nominal height of either 800, 1000, 1200, or 1300mm.
Each panel is secured to the uprights with 6 back cladding clips, three either side of the panel.
The hook on the clip passes through the rectangular hooks punched along the edges of the panel.
Cladding trim is used to cover the gap between these panels. The length of this trim is 140mm less
than the bay length.
The schedules are detailed on the following pages.
Issue: June 2005 Section F – Full Width Back Cladding Schedule Page F.1
