Dexter Laundry V-Series User Manual

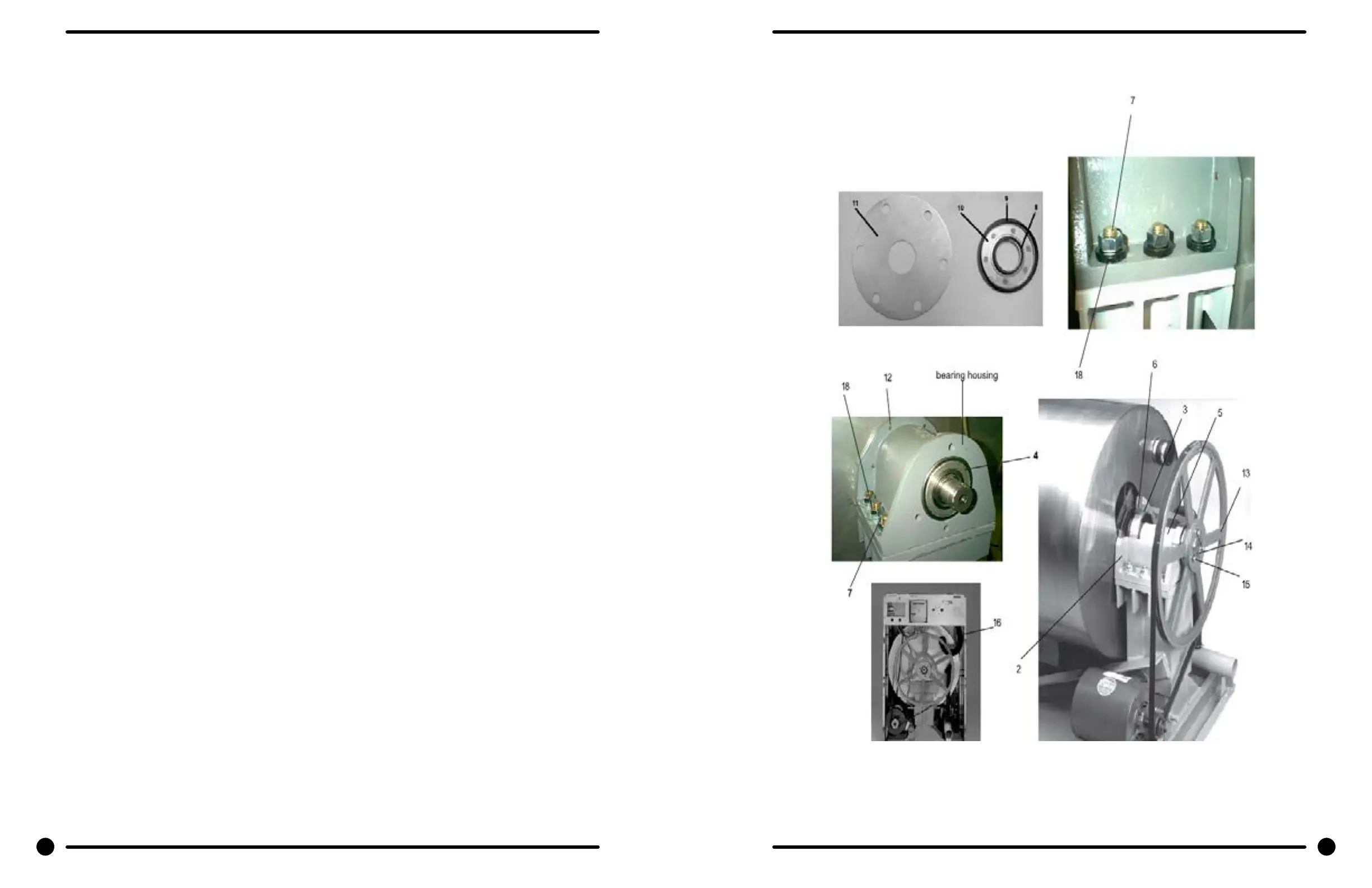

Cylinder, Seals, & Bearings Part # WCVD-55, WCVD-75
Key Part Number
1 9848-116-001
1 9848-125-001
* 9869-009-001
* 9869-015-001
* 9803-187-001
2 9241-181-004
3 9036-159-006
4 9036-159-005
5 9538-170-001
6 9487-238-004
7 9545-057-002
7 8641-581-033
7 8641-582-020
7 8640-418-003
8 9532-140-008
9 9532-140-007
10 9950-052-001
11 9487-261-004
12 9545-059-004
12 8641-581-034
13 9453-176-005
14 9053-078-002
15 9545-029-011
15 8641-582-003
16 9241-466-002
17 8654-117-017
18 8641-588-001
18 8641-588-002
Description................................................................................................Qty
Cylinder, Assy WCVD-55.................................................................................1
Cylinder, Assy WCVD-75.................................................................................1
Tub and Cylibnder Assy. WCVD-55..................................................................1
Tub and Cyclinder Assy. WCVD-75..................................................................1
Housing&Bearing Assembly WCVD-55,WCVD-75 (includes items #2-#6)...........1
Housing, Bearing...........................................................................................1
Bearing, Front...............................................................................................1
Bearing, Rear................................................................................................1
Spacer, Bearing.............................................................................................1
Ring-Retainer, Internal...................................................................................1
Screw, Bearing Housing, 3/4-10 x 3 WCVD-55,WCVD-75..................................6
Washer, Flat- To Frame WCVD-55...................................................................6
Washer, External Tooth WCVD-55...................................................................6
Nut 3/4-10 WCVD-55,WCVD-75......................................................................6
Seal, Secondary (small) WCVD-55,WCVD-75...................................................1
Seal, Primary (large) WCVD-55,WCVD-75........................................................1
Ring, Seal Mtg WCVD-55,WCVD-75.................................................................1
Ring, Seal Tub Back WCVD-55,WCVD-75.........................................................1
Screw, 7/16-14 x 1 SS (Tub Back to Bearing Housing) WCVD-55, WCVD-75......6
Washer, Flat WCVD-55,WCVD-75....................................................................6
Pulley, Driven WCVD-55,WCVD-75..................................................................1
Bushing, Taper WCVD-55,WCVD-75................................................................1
Screw 3/8-16-2.............................................................................................3
Lockwasher spring 3/8..................................................................................3
Hose, Fill 19” WCVD-75..................................................................................2
Clamp...........................................................................................................4
Washers Spherical 3/4 (Male half) WCVD-75 Required.....................................6
Washers Spherical 3/4 (Female half) WCVD-75 Required.................................6
