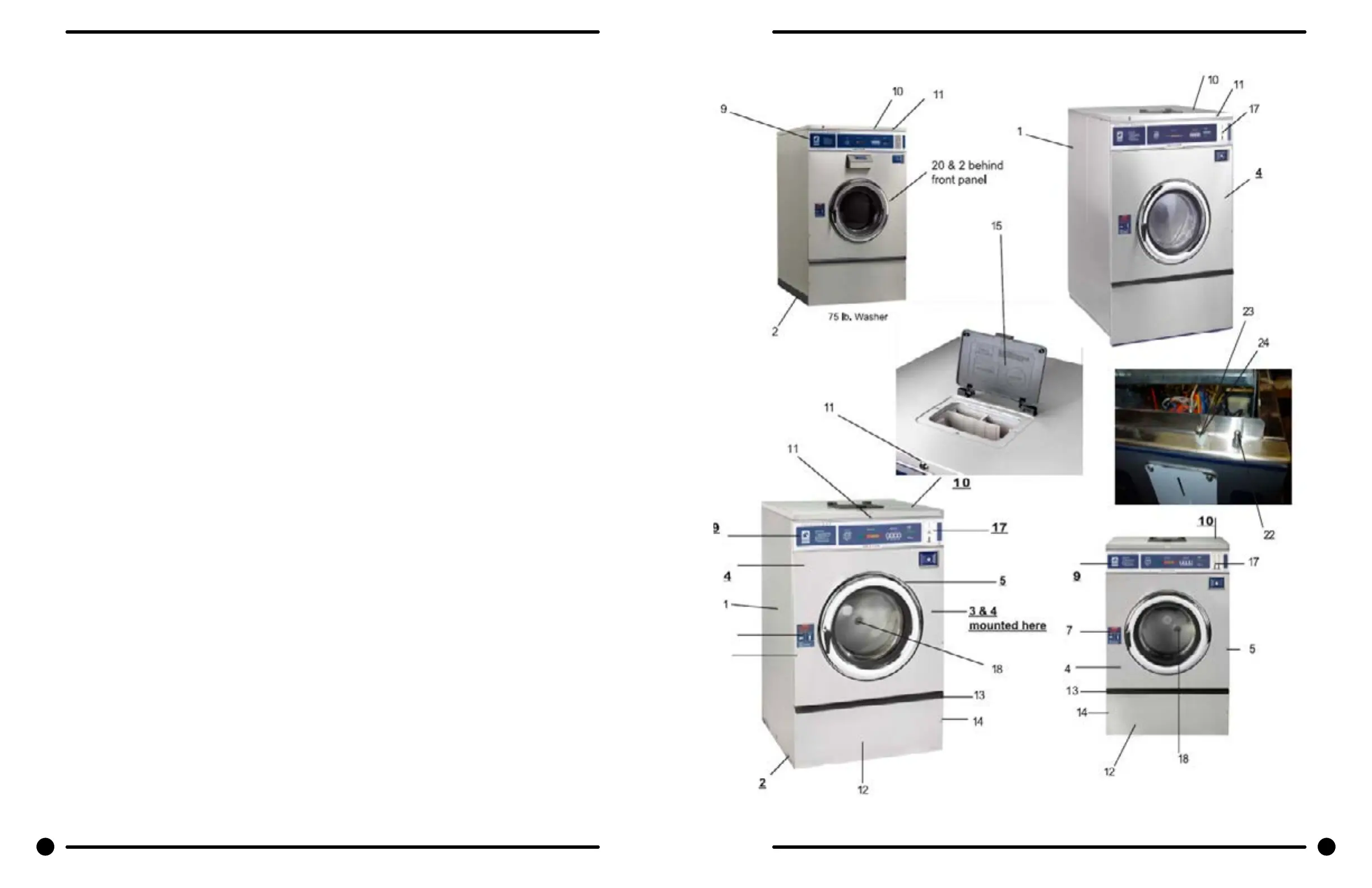

Cabinet and Front Panel Group Part # by Model
Key Part Number
1 9454-656-001
1 9454-672-001
1 9454-635-005
1 9454-635-006
1 9989-449-001
1 9454-760-001
2 9545-018-013
2 9545-018-013
2 9545-018-018
2 8640-414-006
2 8640-414-006
3 9029-066-001
* 8640-413-002
* 9545-008-031
4 9454-659-001
4 9454-671-001
4 9454-763-001
4 9454-728-001
4 9454-669-001
5 9059-063-002
5 9059-063-004
* 9051-053-001
* 9545-008-024
* 8640-399-005
6 9545-008-014
6 8641-585-001
* 8640-399-008
* 9545-008-023
7 8502-624-002
8 9989-474-001
8 9989-476-001
8 9989-473-001
8 9989-475-001
* 9545-008-026
9 9412-113-001
9 9412-112-001
9 9412-114-001
9 9412-115-001
9 9412-130-001
10 9454-761-001
10 9454-762-001
10 9454-736-001
10 9454-733-001
10 9454-735-001
10 9454-734-001
11 8650-012-003
11 8650-012-003
* 6292-006-007
* 9095-038-001
* 8640-426-001
* 8641-581-008
12 9108-096-001
12 9108-099-001
* 9108-097-001
12 9108-097-001
Description .................................................................................Qty
Panel, Side (Left or Right) - stainless WCVD-25.................................2
Panel, Side (Left or Right)-stainless WCVD-55...................................4
Panel, Right Side-stainless WCVD-18................................................1
Panel, Left Side - stainless WCVD-18................................................1
Panel, Side (Left or Right)-stainless WCDV-40...................................2
Panel, Side ( Left or Right)-stainless WCVD-75..................................4
Screw, (Side Panel to Base) WCVD-25...............................................6
Screw, (Side Panel to Base) WCVD-40/55/75.....................................8
Screw, (Side Panel to Base) WCVD-18...............................................6
Nut, Hex 1/4-20 UNC WCVD-18/25...................................................6
Nut, Hex 1/4-20 UNC WCVD-40/55/75..............................................8
Bracket, Side Panel WCVD-18/25/40.................................................1
Nut, Hex WCVD-18/25/40.................................................................2
Screw WCVD-18/25/40.....................................................................2
Panel Assy, Front WCVD-25..............................................................1
Panel Assy, Front WCVD-55..............................................................1
Panel Assy, Front WCVD-75..............................................................1
Panel Assy, Front WCVD-18..............................................................1
Panel Assy, Front WCVD-40..............................................................1
Band, Edge ProtectorWCVD-25/40/55/75..........................................1
Band, Edge Protector WCVD-18........................................................1
Bumper Loading Door WCVD-75.......................................................1
Screw, Hex- To Control Panel...........................................................2
Nut, Spring- To Control Panel 10/32.................................................2
Screw, Flat Head- Front to Sides......................................................2
Washer, Finish................................................................................2
Nut, Spring- To Front Panel..............................................................2
Screw, Guide...................................................................................2
Label, Door Opening........................................................................1
Panel, Control (Mounts Nameplate) WCVD-2..,...................................1
Panel, Control (Mounts Nameplate) WCVD-55, WCVD-75...................1
Panel, Control (Mounts Nameplate) WCVD-18....................................1
Panel, Control (Mounts Nameplate) WCVD-40....................................1
Screw, Control Panel to Sides...........................................................4
Nameplate Decal, Control Panel (one piece) WCVD-25.......................1
Nameplate Decal, Control Panel (one piece) WCVD-18.......................1
Nameplate Decal, Control Panel (one piece) WCVD-40.......................1
Nameplate Decal, Control Panel (one piece) WCVD-55.......................1
Nameplate Decal, Control Panel (one piece) WCVD-75.......................1
Panel Top Front WCVD-75................................................................1
Panel Top Rear WCVD-75.................................................................1
Panel Top WCVD-55.........................................................................1
Panel Top WCVD-18.........................................................................1
Panel Top WCVD-40.........................................................................1
Panel, Top WCVD-25........................................................................1
Lock, Top (w/Key) WCVD-18,WCVD-25,WCVD-40..............................1
Lock, Top (w/key) WCVD-55, WCVD-75...........................................2
Key, Top- # 6324............................................................................1
Cam, Lock-Top.................................................................................1
Nut, 9/32........................................................................................1
Washer............................................................................................1
Door, Lower Service WCVD-18..........................................................1
Door, Lower Service WCVD-55,WCVD-75...........................................1
Door, Lower Service WCVD-40..........................................................1
Door, Lower Service WCVD-25..........................................................1
96 97
Part # 8533-050-001 2/22 Part # 8533-050-001 2/22
96 97
Water Inlet &
Rear Channel
Cylinder, Seals,
& Bearings
To Next Page
