Key Part Number
1 9857-154-001
1 9857-151-001
1 9857-150-001
1 9857-149-001
1 9857-152-001
1 9857-160-001
2 9839-015-001
3 9545-008-026
4 8641-582-006
5 9003-270-001
5 9003-271-001
6 9545-008-026
7 8711-004-001
9 9545-045-001
10 8641-582-005
11 8220-001-282
11 8220-062-025
11 8220-062-032
12 8639-621-007
13 8641-582-006
14 8652-130-037
15 9473-006-001
16 9538-157-011
17 8640-411-003
* 9627-796-001
* 9627-796-002
19 9627-795-001
19 9627-795-002
* 9627-794-001
* 9627-793-001
* 8220-064-023
* 8220-064-040
23 9053-067-002
* 9527-002-002
* 9527-002-003
26 9483-004-002
26 9483-004-002
26 9483-004-003
27 9545-012-008
28 8640-413-002
29 8220-117-001
29 8220-118-001
30 9545-044-006
31 8640-411-003
32 9897-034-001
33 9545-045-007
* 9558-027-001
* 9558-027-002
35 9539-457-002
35 9539-457-001
35 9539-488-001
36 9545-045-001
36 9545-008-026
Description
Trough Assy, Controls (all parts below #2 - #43 & trough)..................WCVD-55
Trough Assy,Controls(all parts below #2-#43 & trough) .....................WCVD-25
Trough Assy,Controls(all parts below #2-#43 & trough) ................WCVD-18-12
Trough Assy,Controls(all parts below #2-#43 & trough) ................WCVD-18-10
Trough Assy, Controls (all parts below #2 - #43 & trough) .................WCVD-40
Trough Assy, Controls (all parts below #2 - #43 & trough) .................WCVD-75
Trough only ALL..........................................................................................1
Screw, Trough Sides ALL...............................................................................4
Lockwasher Exttooth #10 ALL.....................................................................4
Angle Support Trough WCVD-18,WCVD-25.....................................................1
Angle Support Trough WCVD-40,WCVD-55.....................................................1
Screw, Trough Bracket WCVD-18,WCVD-25,WCVD-40,WCVD-55......................4
Transformer, Control (Operating Voltage to 115 volts) ALL except WCVD18-10...
Screw, Mtg #8Bx1/4"...................................................................................2
Lockwasher..................................................................................................2
Wire Assembly Red 20" WCVD-18, WCVD-25..................................................2
Wire Assembly Red 28" WCVD-40, WCVD-55..................................................2
Wire Assembly Red 41" WCVD-75..................................................................2
Screw GRN. #10-32x 1/2"............................................................................1
Lockwasher #10..........................................................................................1
Lug, Grounding............................................................................................1
PCB assembly Relay Main ............................................................................1
Spacer Plastic #8x3/8".................................................................................6
Nuts Hexkeps #6-32.....................................................................................6
Harness Drain/Therm/Sol WCVD-18,WCVD-25................................................1
Harness Drain/Therm/Sol WCVD-40,WCVD-55,WCVD-75.................................1
Harness P19/Water Valve WCVD-18,WCVD-25................................................1
Harness P19/Water Valve WCVD-40,WCVD-55,WCVD-75................................1
Harness P8/P16 ALL.....................................................................................1
Harness P20/P21 ALL...................................................................................1
Wire Assembly Yel 32" WCVD-18,WCVD-25,WCVD-40,WCVD-55......................2
Wire Assembly Yel 64" WCVD-75...................................................................2
Bushing, Wire 7/8 ALL.................................................................................2
Stando Twistlock ALL.................................................................................3
Stando Twistlock ALL.................................................................................2
Dynamic Braking Resistor WCVD-18-10,WCVD-18-12......................................1
Dynamic Braking Resistor WCVD-25,WCVD-40,..............................................2
Dynamic Braking Resistor WCVD-55, WCVD-75..............................................2
Screws #10-32x1/2" (pnhdcr).......................................................................4
Nuts, #10-32 UNF 2B...................................................................................4
Wire Assembly Jumper Blk. ALL except WCVD-18...........................................2
Wire Assembly Jumper BLK. WCVD-18...........................................................2
Screw #6-32x5/16"......................................................................................4
Nuts Hex #6-32............................................................................................4
Terminal Block Assy, POWER ALL...................................................................1
Screw, Mtg 8Bx3/8"......................................................................................2
Strip, Terminal Marker WCVD-18,WCVD-40,WCVD-55,WCVD-75.......................1
Strip, Terminal Marker WCVD-25....................................................................1
Switch, Pressure WCVD-18............................................................................1
Switch, Pressure WCVD-40,WCVD-25,WCVD-55..............................................1
Switch, Pressure WCVD-75............................................................................1
Screw, Mtg #8Bx1/4" WCVD-18,WCVD-25,WCVD-40.......................................2
Screw, Mtg. WCVD-55, WCVD-75...................................................................2

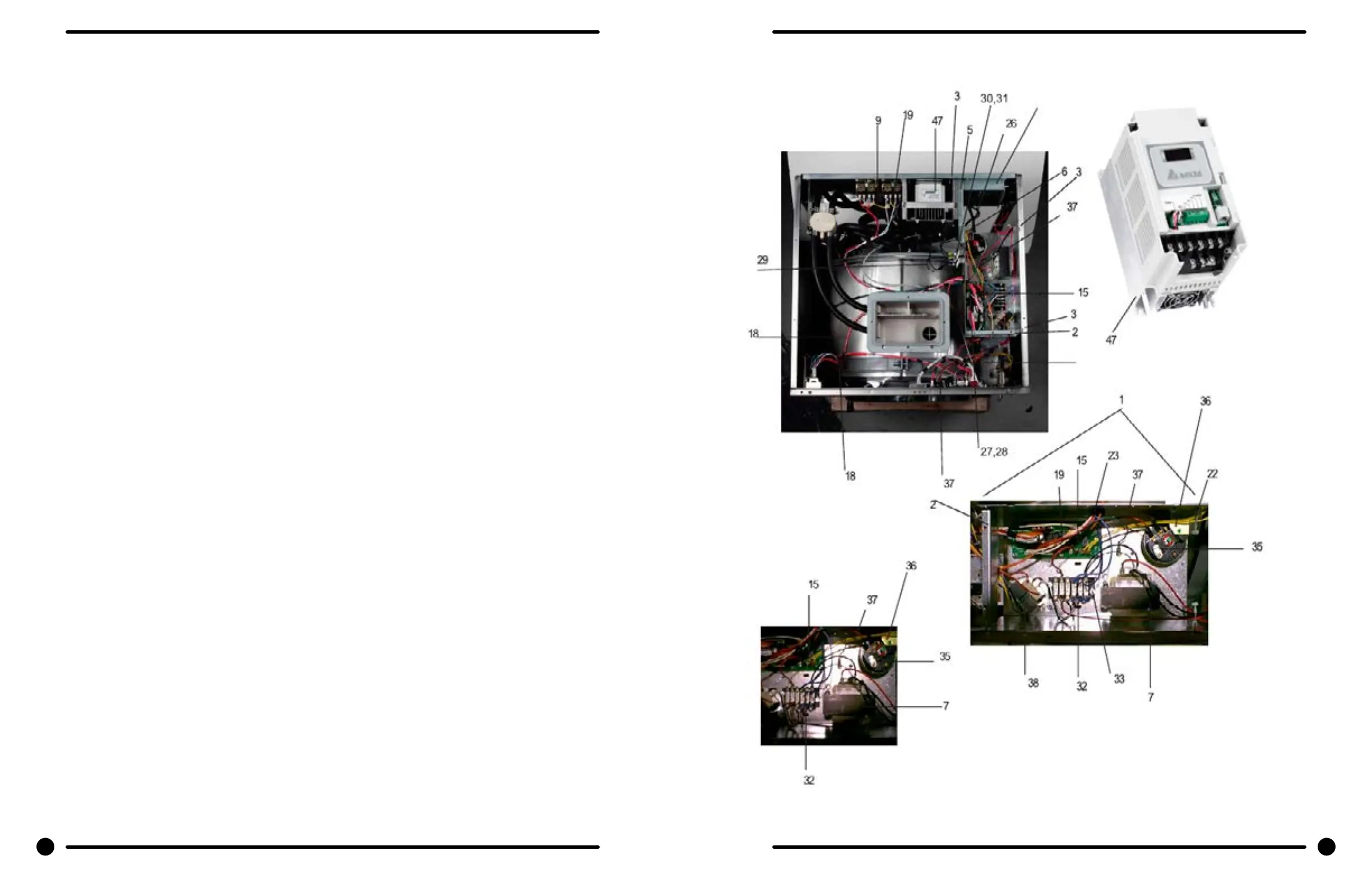

Eletrical Compenents - Top Compartment
124 125
Part # 8533-050-001 2/22 Part # 8533-050-001 2/22
