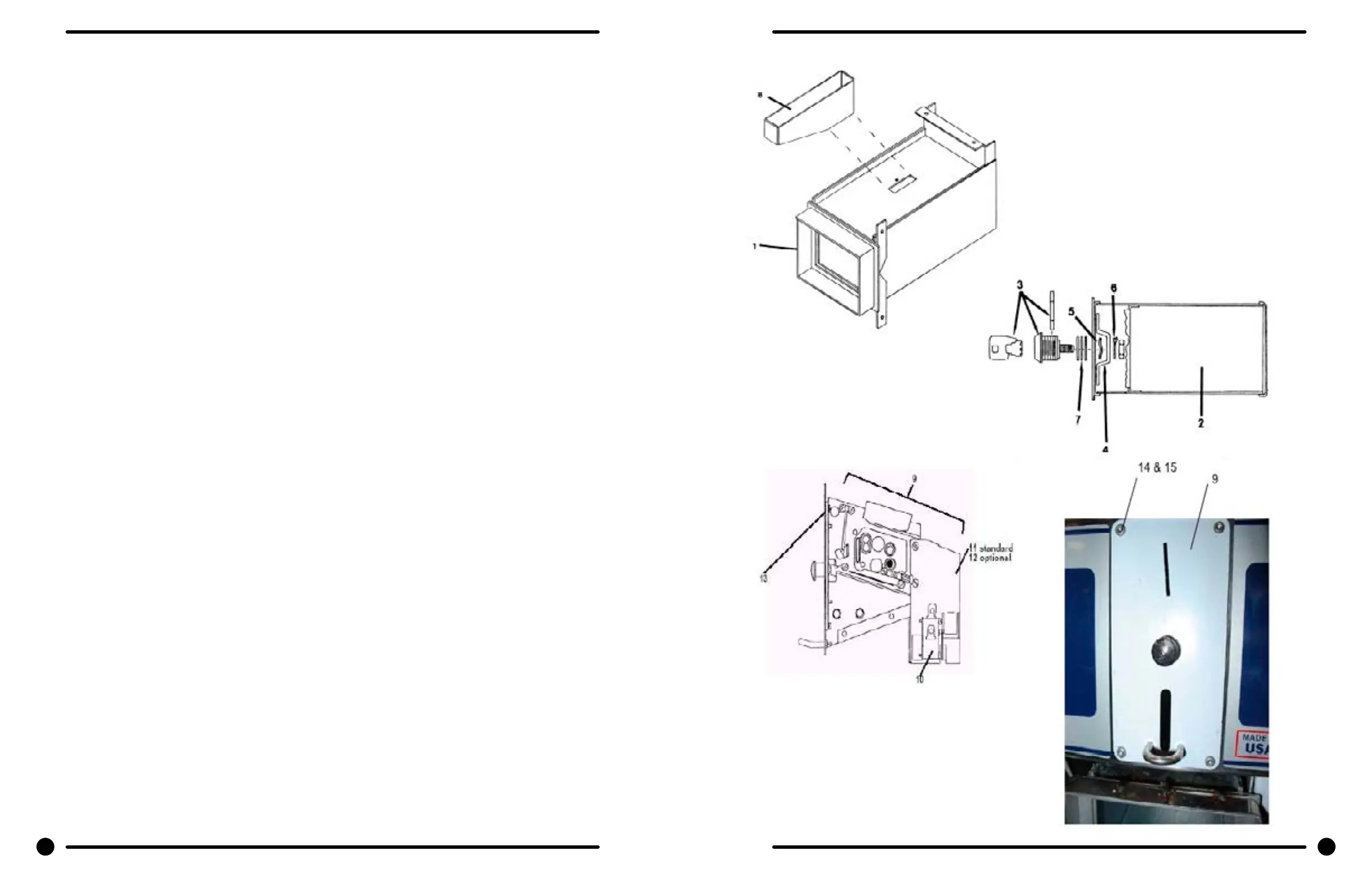

Dexter Laundry V-Series - Coin Handling Group

Key Part Number
1 9942-029-001
1 9942-030-001
1 9942-030-002
1 9942-030-003
1 9942-030-004
* 9545-008-026
* 9545-008-031
2 9732-122-001
3 9349-033-001
4 8641-569-002
5 8641-583-001
6 8641-581-008
6 8641-581-010
7 8650-012-003
* 9545-008-001
11 9119-025-002
* 8640-424-002
10 9732-126-001
12 9119-025-001
13 9486-133-001
* 9922-008-001
** 9536-079-001
** 9534-362-001
** 9545-039-001
** 8641-579-001
8 9119-028-001
8 9119-029-001
9 9021-001-001
9732-001-001
14 9545-020-004
15 8640-424-002
* Not Illustrated
Description
Vault, Assy WCVD-18...................................................................................1
Vault, Assy WCVD-25...................................................................................1
Vault, Assy WCVD-40...................................................................................1
Vault, Assy WCVD-55...................................................................................1
Vault, Assy WCVD-75...................................................................................1
Screw, 10Bx 1/2" Vault Mtg.......................................................................2
Screw, 10AB x 1/2" Vault Mtg......................................................................2
Kit, Coin Box W/Hardware (includes 3 thru 6)...............................................1
Latch, Coin Box...........................................................................................1
Washer, Wave.............................................................................................1
Washer, Keeper...........................................................................................1
Washer, Spacer- Thick..................................................................................2
Washer, Spacer- Thin..................................................................................4
Lock, Coin Box (w/key not included with 9732-122-001)................................1
Screw, Chute Mtg........................................................................................1
Coin Acceptor chute without penny rejector (standard)..................................1
Nut............................................................................................................4
Switch, Coin ( ts single coin drop)..............................................................1
Coin Acceptor chute with penny rejector (optional)........................................1
Button Coin Return Retainer.........................................................................1
Coin Blocking Solenoid assy (** included )...................................................1
Solenoid coin blocking.................................................................................1
Spring coin blocking.....................................................................................1
Screw.Blocking assy mtg.............................................................................2
Lockwashers................................................................................................2
Chute Assy.WCVD-75...................................................................................1
Chute Assy.WCVD-18,WCVD-25,WCVD-40,WCVD-55......................................1
Coin Acceptor Complete w/coin blocking solenoind........................................1
Electronic Acceptor Kit for U.S.A. models w/coin blocking...............................1
Screws - Coin Acceptor Mounting Torx Head.................................................4
Nuts - Coin Acceptor Mounting Nuts.............................................................4
NOTE: COIN BOX AND HARDWARE KIT AND COIN BOX LOCK NOT INCLUDED WITH MACHINE.
For other countries coinage call Dexter P&S or contact your local distributor.
Coin Handling Group by Part #
