Dexter Laundry V-Series User Manual

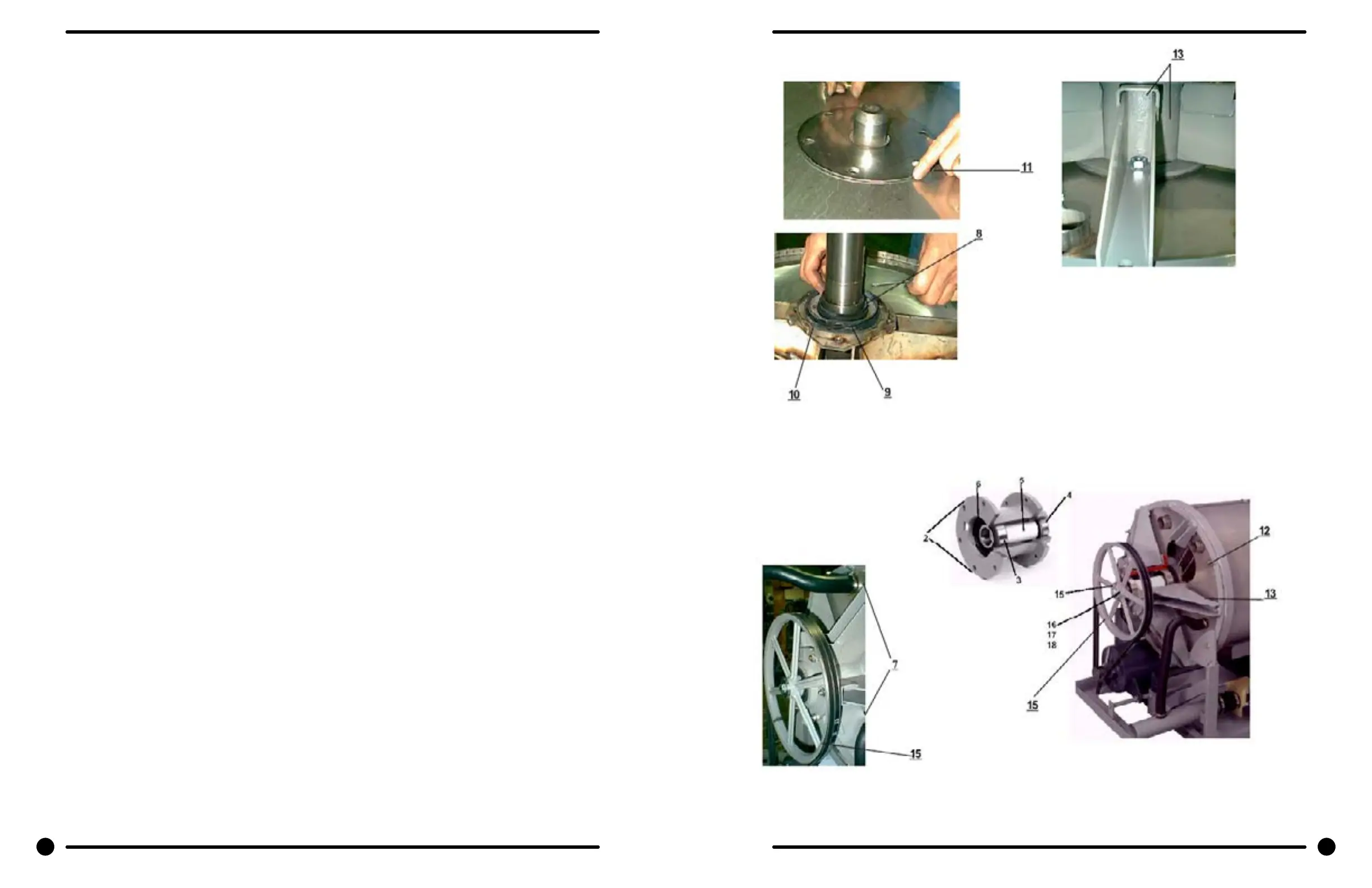

Cylinder, Seals, & Bearings Part # WCVD-18, WCVD-25, WCVD-40
Key Part Number
* 9803-179-002
2 9241-169-002
3 9036-159-002
4 9036-159-001
5 9538-158-001
6 9487-238-001
* 9803-182-001
2 9241-174-002
3 9036-159-001
4 9036-159-003
5 9538-161-001
6 9487-238-002
* 9803-186-001
2 9241-180-002
3 9036-159-005
4 9036-159-004
5 9538-167-001
6 9487-238-003
7 9732-137-001
7 9732-137-002
7 9732-137-003
9 9532-140-004
8 9532-140-005
8 9532-140-003
9 9532-140-002
8 9532-140-006
10 9950-047-001
10 9950-042-001
10 9950-048-001
11 9487-261-001
11 9487-261-002
11 9487-261-003
12 9545-017-009
12 8640-417-002
12 8641-582-016
12 9545-060-001
12 8640-425-001
12 8641-582-018
13 9991-049-002
13 9991-048-002
13 9991-056-002
16 9545-029-003
16 8640-415-004
16 9545-059-003
16 8640-416-005
15 9453-168-003
15 9453-168-004
15 9908-041-002
* 9487-234-001
* 9487-234-002
* 9487-234-003
16 8641-581-026
17 9545-017-009
18 8641-582-016
16 8641-060-001
17 8641-581-032
18 8641-582-018
Description................................................................................................Qty
Housing, Bearing- Assembly (includes items #2-#6)WCVD-25..........................1
Housing, Bearing...........................................................................................1
Bearing, Front ( LARGE )...............................................................................1
Bearing, Rear ( SMALL )................................................................................1
Spacer, Bearing.............................................................................................1
Ring, Bearing Retainer ( internal type ).........................................................1
Housing, Bearing-Assembly (includes items #2-#6) WCVD-18..........................1
Housing, Bearing...........................................................................................1
Bearing, Front ( LARGE )...............................................................................1
Bearing, Rear ( SMALL )................................................................................1
Spacer, Bearing.............................................................................................1
Ring, Bearing Retainer...................................................................................1
Housing, Bearing-Assembly (includes items #2-#6) WCVD-40..........................1
Housing, Bearing...........................................................................................1
Bearing, Front (LARGE)..................................................................................1
Bearing, Rear (SMALL)...................................................................................1
Spacer, Bearing.............................................................................................1
Ring, Bearing Retainer (Internal)....................................................................1
BackAssy, Tub 2 piece WCVD-18.....................................................................1
BackAssy, Tub 2 piece WCVD-25.....................................................................1
BackAssy, Tub 2 piece WCVD-40.....................................................................1
Seal, Primary WCVD-18..................................................................................1
Seal, Secondary WCVD-18..............................................................................1
Seal, Secondary WCVD-25..............................................................................1
Seal, Primary WCVD-25, WCVD-40.................................................................1
Seal, Secondary WCVD-40.............................................................................1
Ring, Seal Mounting WCVD-18.......................................................................1
Ring, Seal Mounting WCVD-25.......................................................................1
Ring, Seal Mounting WCVD-40.......................................................................1
Tub Back Mating Ring WCVD-18.....................................................................1
Tub Back Mating Ring, WCVD-25....................................................................1
Tub Back Mating Ring, WCVD-40....................................................................1
Bolt, 1/2” Tub End of Bearing Housing ( 1/2” x 1 1/4”) WCVD-25.....................6
Nut 1/2’.......................................................................................................6
Lockwasher 1/2” ( ext. tooth).........................................................................6
Bolt 5/8-11x11/2” Tub end of bearing housing WCVD-40.................................6
Nut 5/8”.......................................................................................................6
Lockwasher 5/8”...........................................................................................6
SupportArmAssy, Bearing Housing WCVD-18...................................................6
Support Arm Assy., Bearing Housing WCVD-25................................................6
SupportArmAssy, Bearing Housing WCVD-40...................................................6
Bolt Pulley End of Bearing Housing ( 3/8” x 1 1/2” ) WCVD-25.........................6
Nut, Flange Locking 3/8” WCVD-25................................................................6
Bolt Pulley end of bearing housing 7/16-14x2” WCVD-40.................................6
Nut, Flange Locking 7/16” WCVD-40...............................................................6
Puley, Driven WCVD-40..................................................................................1
Pulley, Driven WCVD-25.................................................................................1
Pulley, Driven WCVD-18.................................................................................1
Ring, Tolerance WCVD-25 Between shaft and pulley........................................1
Ring, Tolerance WCVD-18 Between shaft and pulley........................................1
Ring, Tolerance WCVD-40 Between shaft and pulley........................................1
Washer 1/2” WCVD-18,WCVD-25....................................................................1
Bolt 1/2-13 x 1 1/4”.....................................................................................1
Lockwasher 1 /2” Ext. tooth...........................................................................1
Bolt 5/8-11x11/2” WCVD-40..........................................................................1
Washer 5/8”.................................................................................................1
Lockwasher 5/8 Ext. tooth ...........................................................................1
