Dexter Laundry V-Series - Page 52

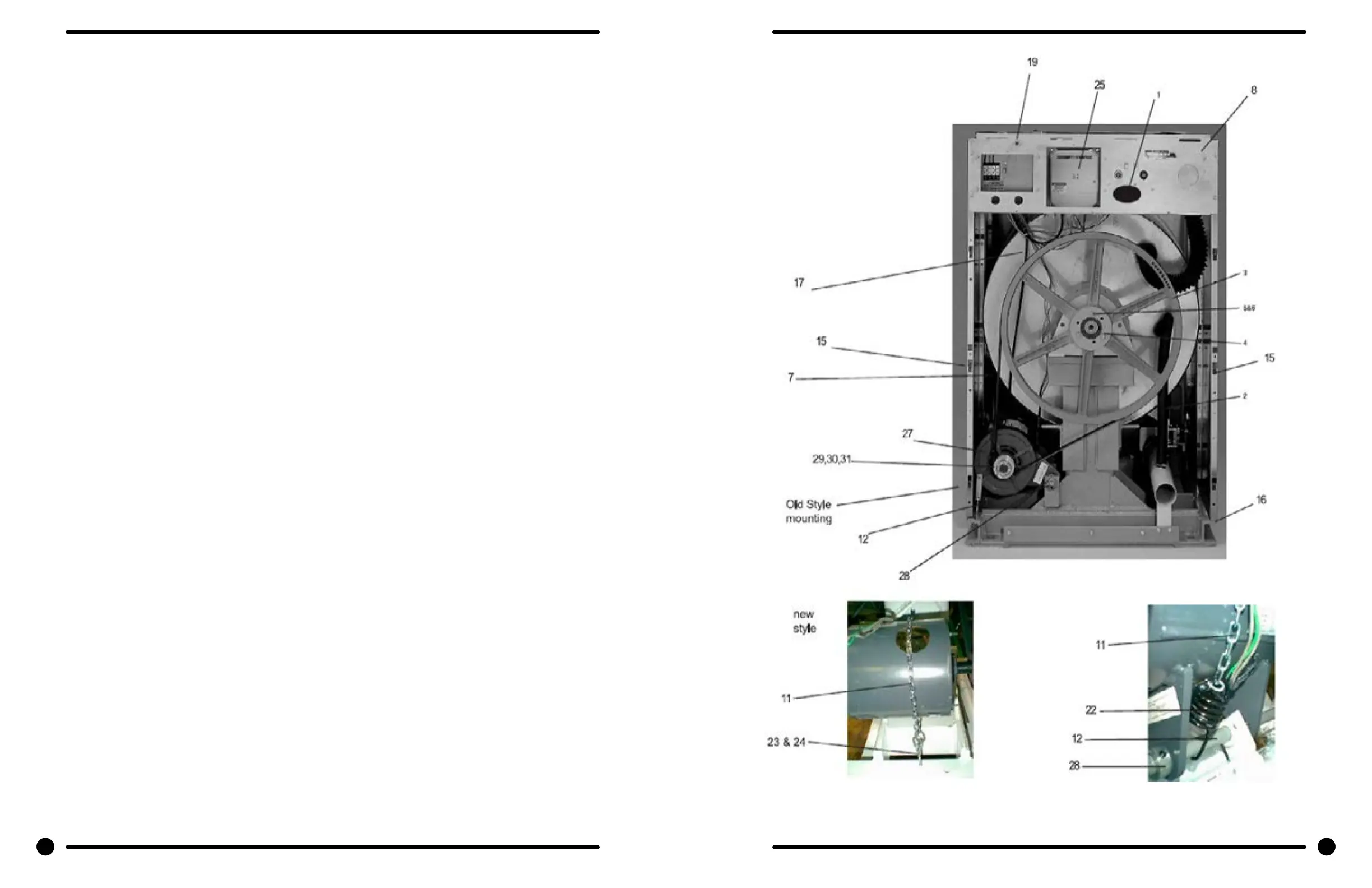

Rear View Access Part # WCVD-55, WCVD-75
Key Part Number
2 9242-449-003
* 9242-463-004
3 9453-176-005
4 9053-078-002
5 9545-029-011
6 8641-582-003
7 9040-079-003
7 9040-079-002
8 9081-140-001
8 9081-109-001
9 9545-008-026
9 8640-399-008
10 8654-029-000
11 9341-046-001
11 9099-012-003
11 9099-012-004
12 9497-222-004
12 9545-029-005
12 8641-582-014
15 8640-399-008
15 8640-399-008
16 9545-030-002
17 9242-175-003
17 9242-175-006
* 8654-117-015
19 5198-211-004
* 9200-001-002
* 8636-018-001
* 8636-018-004
20 9242-458-003
* 8654-117-014
22 9534-151-000
23 9545-055-001
24 8640-414-003
25 9375-009-002
25 9375-009-005
* 9483-004-003
* 9985-115-001
* 9029-150-001
27 9376-298-001
28 9076-052-002
29 9453-175-002
30 9053-077-001
31 9545-018-021
31 9545-018-024
* 9989-455-001
* 9989-491-001
* 9545-008-026
* 9545-008-026
Description................................................................................................Qty
Hose, Overow Vent 14” WCVD-75,WCVD-55..................................................1
Hose, Overow to drain WCVD-75, WCVD-55..................................................1
Pulley, Driven WCVD-55,WCVD-75..................................................................1
Bushing, TaperWCVD-55,WCVD-75.................................................................1
Screw...........................................................................................................3
Lockwasher...................................................................................................3
Drive Belt WCVD-75.......................................................................................1
Drive Belt WCVD-55.......................................................................................1
Channel, Rear WCVD-75................................................................................1
Channel, Rear WCVD-55................................................................................1
Screw...........................................................................................................4
Nut, Spring...................................................................................................4
Clamp, Hose.................................................................................................2
Link, Chain...................................................................................................1
Chain ( Spring Tension) WCVD-55...................................................................1
Chain ( Spring Tension) WCVD-75...................................................................1
Rod, Motor Mtg WCVD-55,WCVD-75...............................................................1
Screw (end of motor rod)..............................................................................1
Lockwasher (end of motor rod)......................................................................1
Nut, Spring WCVD-55...................................................................................6
Nut, Spring WCVD-75..................................................................................10
Screw, to Base 1/4Bx3/4” WCVD-55,WCVD-75..............................................3
Hose, Pressure Switch WCVD-55....................................................................1
Hose, Pressure Switch WCVD-75....................................................................1
Clamp, Pressure Sw. Hose.............................................................................1
Circuit Breaker, 1.5 amp WCVD-55 (optional)..................................................0
Fuseholder.....................................................................................................1
Fuse 1.5 amp WCVD-55................................................................................1
Fuse 2.5 amp WCVD-75................................................................................1
Hose, Vacuum Breaker to tub WCVD-55, WCVD-75..........................................1
Clamp, Hose to Vacuum Breaker WCVD-75, WCVD-55.....................................1
Spring, Belt Tension......................................................................................1
Bolt, Eye ( 1/4”-20 x 2 1/2”)..........................................................................1
Nut, 1/4 Elastic Stop.....................................................................................1
VFD Delta “S” drive WCVD-55........................................................................1
VFD Delta “S” drive WCVD-75........................................................................1
Braking resistors ( 160 ohm) WCVD-55, WCVD-75.........................................2
Bracket ass’y(drive mounting) WCVD-55.........................................................1
Bracket ass,y (drive mounting) WCVD-75........................................................1
Drive Motor WCVD-55, WCVD-75 3 phase inverter dot.....................................1
Collar, Shaft (w/set screws)............................................................................2
Pulley, Motor WCVD-75,WCVD-55...................................................................1
Bushing, Split Taper WCVD-55,WCVD-75.........................................................1
Screw WCVD-75............................................................................................3
Screw WCVD-55...........................................................................................3
Panel Assy., Back WCVD-55............................................................................1
Panel Assy, Back WCVD-75.............................................................................1
Screw Panel Mtg.#10Bx1/2” WCVD-55............................................................9
Screw Panel Mtg.#10Bx1/2” WCVD-75..........................................................13
