Cylinder
Step 1: Remove the top panel as described previously.
Step 2: Remove lower service panel as described previously.
Step 3: Remove front panel as described previously.
Step 4: Remove masking ring as described previously.
Step 5: Remove door lock assembly. (Leave wires & pull rod in place)
Step 6: Remove clothes door.
Step 7: Remove tub front clamp ring.
Step 8: Remove tub front. Use a at screw driver to pry the tub front
loose.
Step 9: Remove the rear access panel.
Step 10: Remove the drive belts.

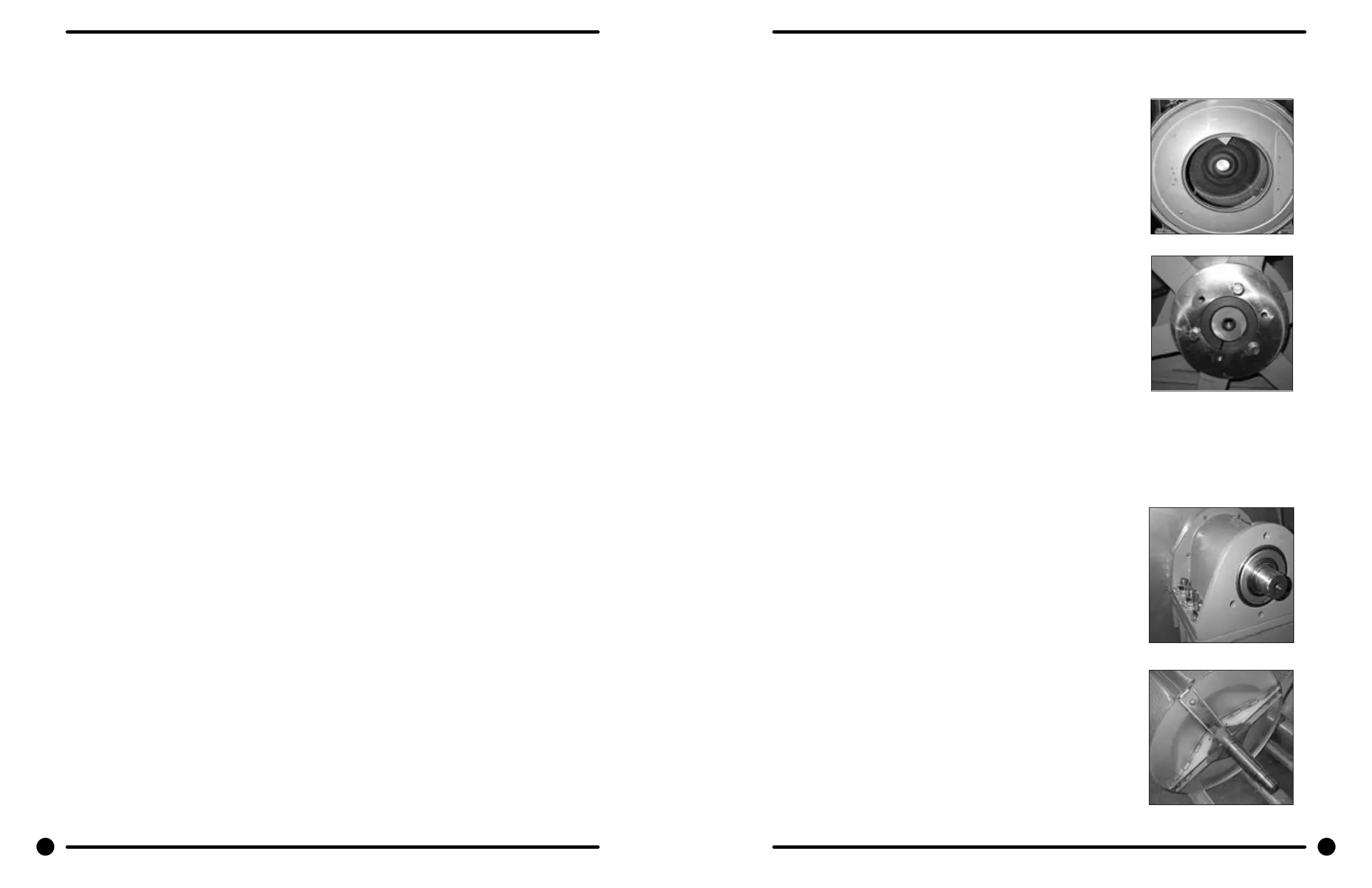

Step 11: Remove drive pulley. Remove 3 retaining screws. Insert (3) 3/8
16 x 2” screws into the threaded removal holes. Alternately
tighten these screws evenly to pull the pulley o.
Step 12: Remove pulley hub. Drive a at screw driver into the slot in the
hub and pull it from the shaft.
Step 13: Install cylinder puller. (Snap On part #CJ-84-C) Be sure to thread
a 5/8-11 NC bolt into the end of the cylinder shaft to protect the
threads. Push the basket out.
Bearing Housing Assembly
Removal
Step 1: Remove cylinder from washer (see Cylinder (basket) removal).
Step 2: Remove 6 7/16” tub back to bearing housing cap screws.
Step 3: Remove 6 3/4” bearing housing to frame bolts.
Step 4: Remove bearing housing from frame.
Step 5: Remove the retaining ring next to the front bearing.
Step 6: The bearings are pressed into the housing and must be pressed
back out.
Reassembly
Step 1: When installing new bearings into a bearing housing, rst press
the front (large) bearing into the housing until it bottoms and
install the snap ring. With the bearing spacer in place, press
the rear bearing in until the spacer is snug between the two
bearings.
NOTE: If the tub-back water-seal mating ring has been moved
it must be cleaned and resealed.
Outer Cabinet Removal
18lb, 25lb, 40lb.
Removal of Cabinet 18lb, 25lb, 40lb
Step 1: The power supply, water hoses, and drain connection must all be disconnected before proceeding
with the disassembly.
Step 2: Now remove the lower service panel and the top panel assembly.
Step 3: Remove the left and right lower front panel screws that retain the panel to the chassis.
Step 3: Remove the bottom row of back panel screws.
Step 4: Remove the loading door.
Step 5: Remove the screws along the bottom of each side panel. When reinstalling these screws do
notovertighten.
Step 6: Remove clamp and soap dispenser hose where it attaches to the tub inlet.
Step 7: Disconnect the door lock wires from all switches and the door lock solenoid.
Step 8: Disconnect pull rod between solenoid and door lock assembly. Disconnect the wires to the dump
valve at the bottom of the machine.
Step 9: Disconnect the wires to the drive motor. There is a motor harness connector in the left rear corner
of the control trough. The connector may be removed from the side of the trough by releasing the
retainer ears. The wires from the trough components to the motor harness may be removed from the
top side of the connector. There is a label on the trough oor to aid in reconnection of the wires to
the connector.
Step 10: Remove the clamp and the hose from the vacuum breaker where it connects to the inlet on the back
of the tub.
Step 11: Remove the pressure switch hose from the bottom of the switch.
Step 12: It should now be possible for two people to lift the cabinet up and o of the front of the machine and
set it aside.
58 59
Part # 8533-050-001 2/22 Part # 8533-050-001 2/22
