Water Inlet & Rear Channel Group by Part #
Key Part Number
* 9379-183-003
1 9555-056-001
2 9089-017-001
3 9118-049-001
4 9211-021-002
5 9015-008-001
6 9534-298-001
* 9379-192-001
* 9379-194-001
* 9545-008-026
3 8640-399-009
* 9545-064-001
4 9208-049-001
5 9610-001-001
6 9029-069-001
7 9545-008-026
* 9550-186-001
9 9242-458-003
10 8654-117-014
11 8654-117-009
12 9242-453-018
12 9242-453-019
13 9242-453-020
13 9242-453-020
14 9242-453-020
14 9242-453-020
12 9242-453-022
13 9242-453-009
* 8654-029-000
15 8654-117-015
18 5198-211-004
18 9200-001-002
18 8636-018-001
18 8636-018-004
19 8502-716-001
* 8502-716-002
* Not Illustrated
Description................................................................................................Qty
Valve, Water Inlet (includes 1 thru 6)............................................................2
Screen, Inlet end of valve..............................................................................2
Coil Assy., 120 V............................................................................................2
Diaphragm....................................................................................................2
Guide, Solenoid.............................................................................................2
Armature......................................................................................................2
Spring, Armature...........................................................................................2
Valve, Water Inlet (dual outlet) WCVD-75.......................................................2
Valve, Water Inlet (single outlet) WCVD-75.....................................................2
Screw, Valve Mtg WCVD-18, WCVD-25, WCVD-40, WCVD-55...........................2
Nut, Spring WCVD-18, WCVD-25, WCVD-40, WCVD-55....................................4
Screw, Valve M4x0.7x8mm WCVD-75..............................................................8
Guard, Water valve Terminal..........................................................................1
Vacuum Breaker............................................................................................1
Bracket, Vacuum Breaker................................................................................1
Screw...........................................................................................................4
Shield over Water Valves Plastic WCVD-18, WCVD-25, WCVD-40, WCVD-55......1
Hose, Vacuum Breaker to Tub........................................................................1
Clamp, Vacuum Breaker End .........................................................................1
Clamp, Tub End............................................................................................1
Hose, Vac. Brkr. to Disp.29” WCVD-55.............................................................1
Hose, Vac. Brkr. to Disp.26” WCVD-55.............................................................1
Hose, Hot Valve to Vac. Brkr 18” ...................................................................1
Hose, Hot Valve to Tub 18” ...........................................................................1
Hose, Cold Valve to Vac. Brkr 18”..................................................................1
Hose, Cold Valve to Tub 18” .........................................................................1
Hose, Vac. Brkr. dispenser 43” WCVD-75.........................................................3
Hose, (valve to vac. Brkr) 23” WCVD-75.........................................................4
Clamp, Hose-Spring (overow from drain to tub back).....................................2
Clamp, Hose-Worm......................................................................................10
Circuit Breaker (optional)...............................................................................1
Fuseholder.....................................................................................................1
Fuse 1.5 amp WCVD-18, WCVD-25, WCVD-40, WCVD-55................................1
Fuse 2.5 amp WCVD-75.................................................................................1
Label Fuse 1.5 amp WCVD-18, WCVD-25, WCVD-40, WCVD-55........................1
Label Fuse 2.5 amp WCVD-75........................................................................1

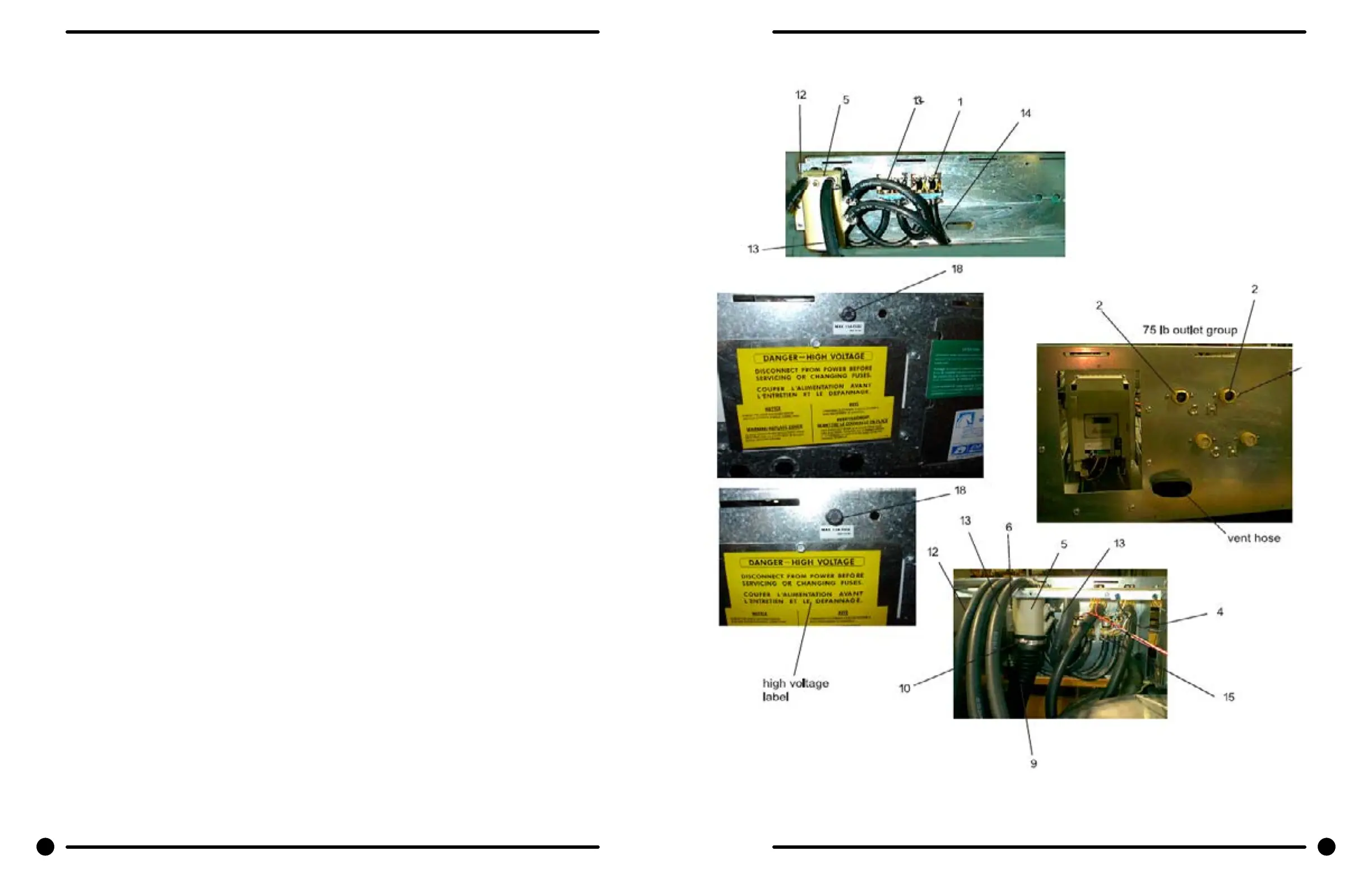

Water Inlet Breakdown
Water Inlet & Rear Channel
122 123
Part # 8533-050-001 2/22 Part # 8533-050-001 2/22
