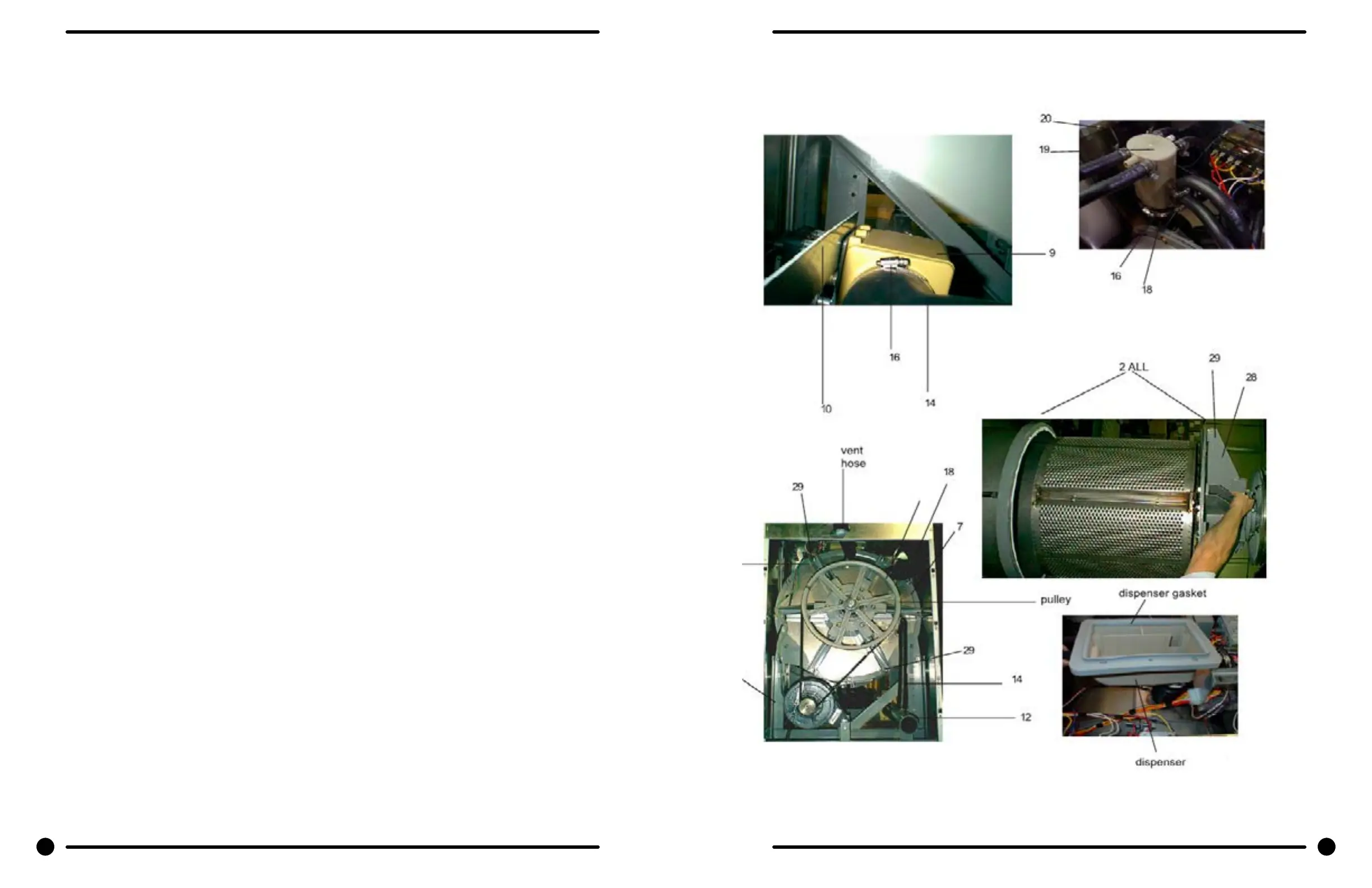

Chassis and Drain Group by Part #
WCVD-18, WCVD-25, WCVD-40
Key Part Number
1 9945-097-002
1 9945-093-002
1 9945-105-002
1 9945-087-002
2 9930-136-001
2 9930-135-001
2 9930-137-001
2 9930-138-001
* 9869-006-001
* 9869-008-001
* 9869-007-001
* 9869-009-001
3 9967-009-002
4 9950-050-002
5 9545-060-003
5 8640-425-001
5 8641-582-018
6 9545-060-002
6 8640-425-001
7 9950-041-004
8 9545-060-001
8 8641-582-018
8 8640-425-001
9 9379-187-001
10 9029-052-001
* 9545-048-001
* 8641-581-018
11 9545-030-002
12 9915-118-002
13 9545-030-002
14 9242-456-001
15 9242-457-001
16 8654-117-014
17 9552-038-001
18 9242-458-002
19 9610-001-001
20 9029-077-001
21 9545-008-026
* 9732-108-002
* 9206-416-001
* 8640-399-007
* 9242-450-001
* 8654-117-008
27 9732-137-003
28 9991-056-002
29 9545-059-002
29 8640-416-005
* 9552-038-003
* Not Illustrated
Description
Base Assy, Frame WCVD-40........................................................................1
Base Assy,Frame WCVD-18.........................................................................1
Base Assy, Frame WCVD-55........................................................................1
Base Assy,Frame WCVD-25.........................................................................1
Tub Assy WCVD-40,....................................................................................1
Tub Assy WCVD-18.....................................................................................1
Tub Assy WCVD-25.....................................................................................1
Tub Assy WCVD-55.....................................................................................1
Tub & Cylinder Assy WCVD-18.....................................................................1
Tub & Cylinder Assy WCVD-25.....................................................................1
Tub & Cylinder Assy WCVD-40.....................................................................1
Tub & Cylinder Assy WCVD-55.....................................................................1
Cradle Assy, Tub WCVD-40..........................................................................1
Ring Assy, Tub Mtg-Front WCVD-40.............................................................2
Bolt, Top Front Ring 5/8” x 3” WCVD-40.......................................................1
Nut WCVD-40.............................................................................................1
Lockwasher WCVD-40.................................................................................1
Bolt,5/8 x 2 1/2 Frnt Rng to Crdl (double nuts used) WCVD-40.....................2
Nut, Hex WCVD-40.....................................................................................4
Ring Assy.Clamp Tub Mtg.- Rear..................................................................2
Bolt, 5/8 x 1 1/2 Rings to Base ( front and rear ).........................................4
Lockwasher................................................................................................4
Nut, Hex 5/8-11.........................................................................................4
Valve, Drain...............................................................................................1
Bracket, Drain Valve...................................................................................1
Screw, Valve to Bracket 12ABx1/2...............................................................1
Washer......................................................................................................1
Screw, Bracket to Base 1/4Bx3/4................................................................2
Tube Assy, Drain.........................................................................................1
Screw, Tube Mtg........................................................................................2
Hose, Tub to Drain Valve.............................................................................1
Hose, Drain Valve to Tube..........................................................................1
Clamp, Hose..............................................................................................4
Shim, Support Assembly ( thin )..............................................................AR
Hose, Vacuum Brkr. to Tub..........................................................................1
Vacuum Breaker..........................................................................................1
Bracket, Vacuum Breaker............................................................................1
Screw #10Bx 1/2.......................................................................................4
Dispenser...................................................................................................1
Gasket, Dispenser.......................................................................................1
Nut Spring.................................................................................................4
Hose, Dispenser to Tub..............................................................................1
Clamp, Dispenser Hose...............................................................................2
Back Ass’y, Tub..........................................................................................1
SupportArmAss’y, Bearing Housing..............................................................6
Bolt, 7/16” x 2” Tub Back to Tub...............................................................12
Nut, Flange Lock......................................................................................12
Shim (thick)............................................................................................AR
