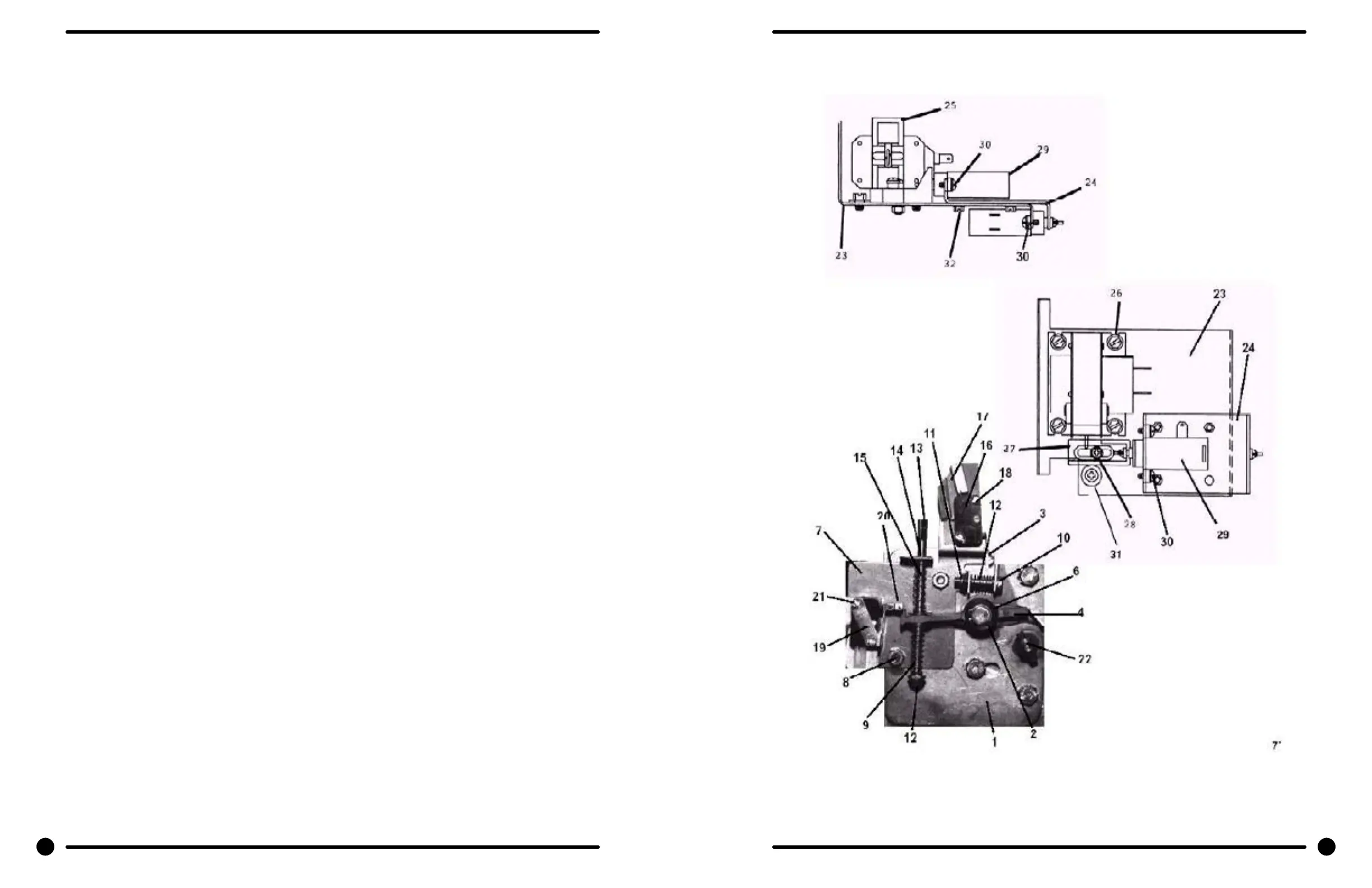

Door Latching & Lock Group (All Models)
Key Part Number
* 9885-023-001
* 9732-347-001
1 9982-284-001
2 8641-581-030
3 9008-005-001
4 9450-002-002
5 8641-569-003
6 9487-200-004
7 9029-035-001
8 8640-413-002
9 9534-364-002
10 9545-012-020
11 8640-413-004
12 9534-364-001
13 9451-193-001
14 9487-200-005
15 8641-581-031
16 9539-461-008
17 9550-169-003
18 9545-020-001
18 8640-401-001
19 9539-461-007
20 9008-006-002
21 9545-020-003
21 8640-401-001
22 9451-181-004
* 9552-037-001
* 9552-037-002
* 9545-018-004
* 8641-582-007
* 9922-011-001
23 9029-073-001
24 9985-169-001
25 9536-074-001
26 9545-008-001
27 9540-033-002
28 9545-061-001
28 8640-411-003
29 9586-001-001
30 9545-031-011
31 9538-157-004
31 9538-166-004
31 9545-010-001
31 8640-412-005
32 8640-411-003
* 8640-412-005
* 9497-225-006
* Not Illustrated
Description................................................................................................Qty
Lock Assy, Complete (includes #1 thru #22)...................................................1
Door Lock & Cam Kit (replaces 9885-023-001)................................................1
Plate Assy, Door Lock....................................................................................1
Washer, Flat.................................................................................................1
Actuator, Latching Switch...............................................................................1
Pawl, Locking................................................................................................1
Washer, Spring..............................................................................................1
Ring, Retaining..............................................................................................1
Bracket, Switch..............................................................................................1
Nut, Hex 10-32 UNF.....................................................................................2
Spring, Actuating...........................................................................................1
Screw, Hx. 10-32 x 1”....................................................................................1
Nut, Elastic Stop 10-32..................................................................................2
Spring, Return...............................................................................................2
Pin, Guide.....................................................................................................1
Ring, Retaining..............................................................................................1
Washer.........................................................................................................2
Switch, Latching Sensing................................................................................1
Shield, Switch...............................................................................................3
Screw 4-40 x 5/8”.......................................................................................2
Nut, Twin.....................................................................................................1
Switch, Locking Sensing.................................................................................2
Actuator, Switch............................................................................................2
Screw 4-40 x 1 1/8”....................................................................................2
Nut, Twin 4-40.............................................................................................1
Pin, Dowel....................................................................................................1
Shim, Door Lock, Thin.................................................................................AR
Shim, Door Lock, Thick...............................................................................AR
Screw, Lock mtg 1/4”-20 x 3/4”.....................................................................3
Lockwasher 1/4” Ext tooth............................................................................3
Solenoid Ass’y, Door Locking (includes 23 thru 32)..........................................1
Bracket, (Door Locking Solenoid)....................................................................1
Bracket Ass’y, Solenoid Slide...........................................................................1
Solenoid 120V 60 hz...................................................................................1
Screw, Solenoid Mtg......................................................................................4
Stop, Door Lock Solenoid...............................................................................1
Screw, Shoulder.............................................................................................1
Nut, Keps #6................................................................................................1
Thermoactuator 120 V.................................................................................2
Screw #6 x 5/16”.........................................................................................4
Spacer, Plastic...............................................................................................1
Spacer, Metal................................................................................................1
Screw, Cross Recessed...................................................................................1
Nut, Keps #8................................................................................................1
Nut, Keps #6................................................................................................1
Nut, Sol. Brkt. to Control Panel.......................................................................3
Rod, Pull......................................................................................................1
108 109
Part # 8533-050-001 2/22 Part # 8533-050-001 2/22
108 109
Water Inlet &
Rear Channel
Cylinder, Seals,
& Bearings
