Dexter Laundry V-Series User Manual

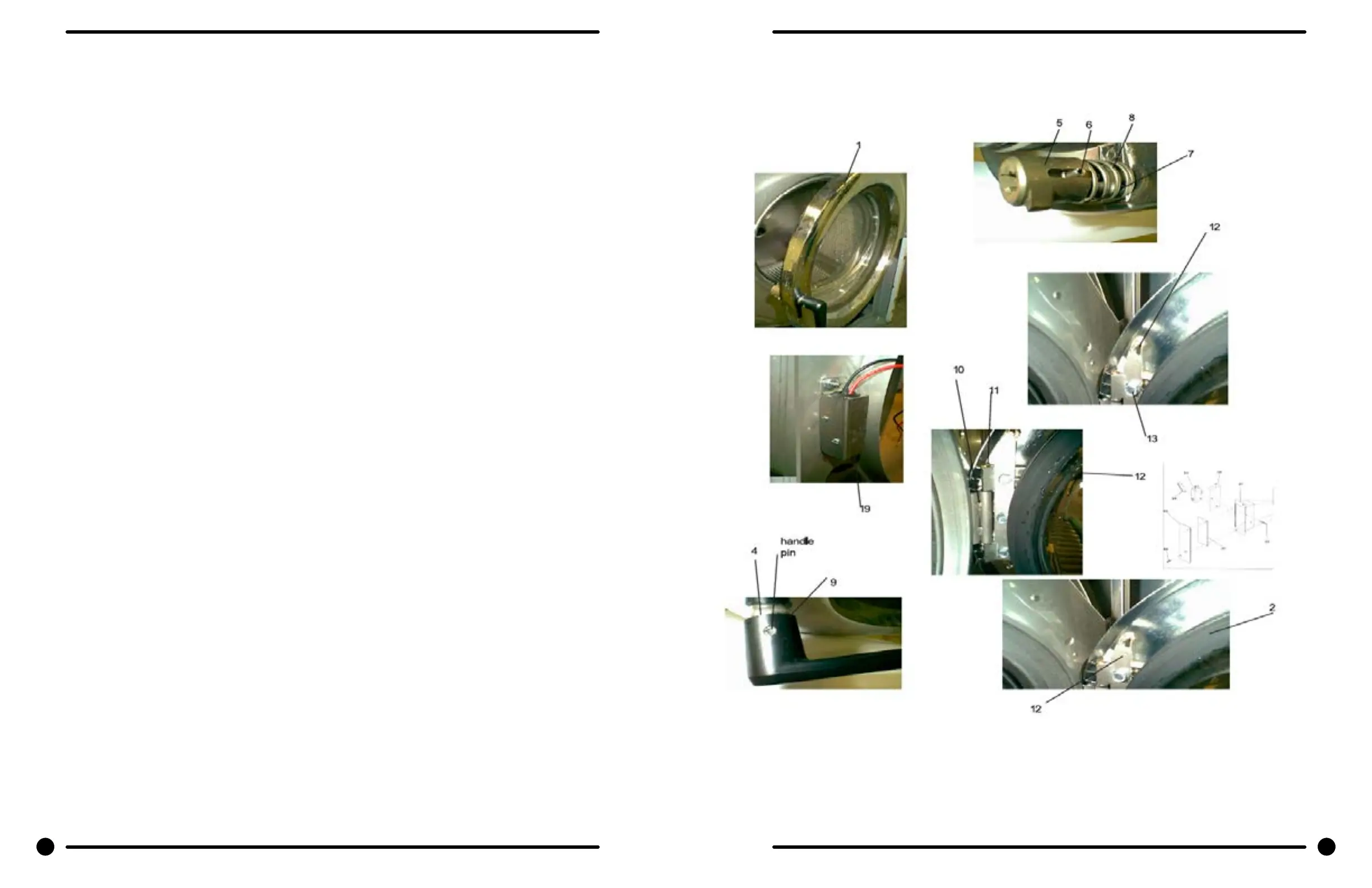

Loading Door Group by Part #
WC VD-18
Key Part Number
* 9960-273-001
1 9487-264-001
2 9206-411-002
3 9635-018-001
* 9913-134-003
4 9537-195-002
5 9095-040-001
6 9451-181-005
7 9451-181-004
8 9534-360-002
9 9244-080-003
* 9451-181-006
10 9955-029-002
* 9545-014-009
* 8641-582-009
* 9552-036-001
* 9552-036-002
11 9451-184-004
* 8649-031-000
12 9079-122-002
13 9545-056-001
14 9950-059-001
* 9059-063-002
* 8640-413-002
15 9539-461-007
16 9550-159-001
17 8220-062-027
18 8220-062-028
19 9801-089-001
D1 9041-087-001
21 9053-067-003
D3 9539-461-007
D2 9550-159-001
D4 8640-401-001
D8 9545-020-001
D7 9008-004-001
* Not Illustrated
Description................................................................................................Qty
Loading Door, Complete (includes 1 thru 10)..................................................1
Loading Door, Ring........................................................................................1
Gasket, Loading Door....................................................................................1
Window, Loading Door..................................................................................1
Shaft Assy, Locking (includes 4 thru 7)...........................................................1
Shaft, Door Locking.......................................................................................1
Cam, Locking................................................................................................1
Pin, Groove (1 1/4).......................................................................................1
Pin, Groove (3/4)..........................................................................................1
Spring, Lock Cam..........................................................................................1
Handle, Door................................................................................................1
Pin, Door Handle (groove)..............................................................................1
Loading Door Hinge Assy ( mounts to Tub Front).............................................1
Screw, Hinge Mtg 5/16” x 3/4”.......................................................................3
Lockwasher 5/16” Ext tooth..........................................................................3
Shim, Loading Door Hinge, Thin..................................................................AR
Shim, Loading Door Hinge, Thick.................................................................AR
Door Hinge Pin (mounts inside Loading Door Hinge Assy)................................1
Ring, Retaining ( snap ring ext )....................................................................1
Loading Door Hinge Clamp ( mounts to door ring ).........................................1
Screw, Loading Door Mtg (5/16” Theard Forming)...........................................3
Ring, Masking...............................................................................................1
Band, Edge ( mounts to Front Panel )...........................................................1
Nut, Keps.....................................................................................................4
Switch, Safety................................................................................................1
Sheild, Safety Switch.....................................................................................1
Wires-Red.....................................................................................................1
Wires-Black...................................................................................................1
Switch Assembly Complete Door Closure (includes 20-26)................................1
Switch Box...................................................................................................1
Bushing Insulating.........................................................................................1
Switch, Micro.................................................................................................1
Switch, Shield...............................................................................................1
Nut Special Twin #4-40..................................................................................1
Screw 4-40x5/8............................................................................................2
Door Switch Actuator.....................................................................................1
110 111
Part # 8533-050-001 2/22 Part # 8533-050-001 2/22
