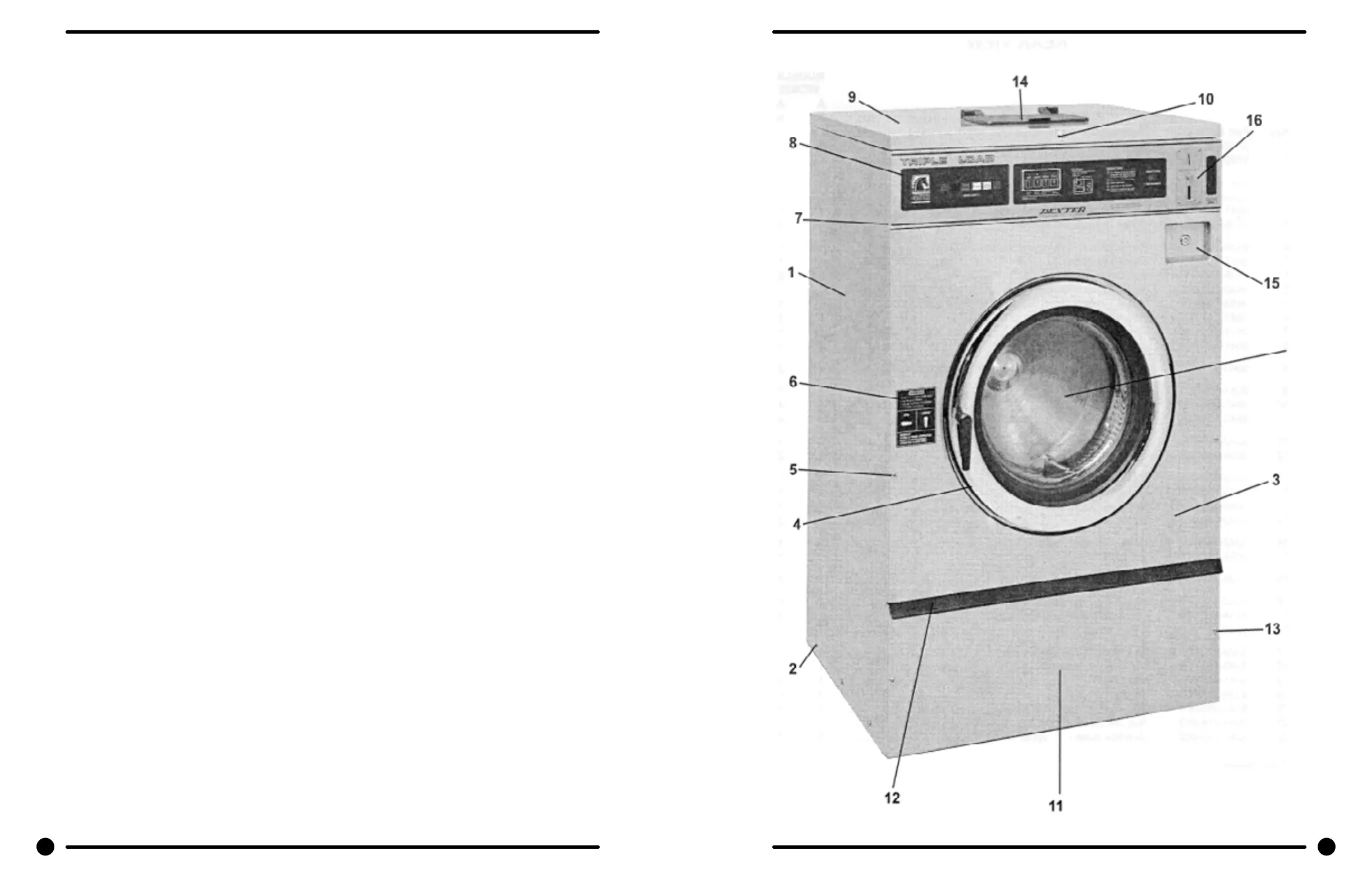

Cabinet and Front Panel Group Part # by Model
WCN25AA/WCN25AB
MODELS
WCN25
A A
A B
Key Part Number Description
1 9454-656-001 Panel, Side (Left or Right) - Stainless..........................................2 2
2 9545-018-01 3 Screw, (Side Panel to Base}.......................................................6 6
2 8640-414-006 Nut, Hex...................................................................................6 6
* 9029-066-001 Bracket, Side Panel....................................................................1 1
* 8640-413-002 Nut, Hex...................................................................................2 2
* 9545-008-005 Screw.......................................................................................2 2
3 9454-659-001 Panel Assy, Front.......................................................................1 1
4 9059-063-002 Sand, Edge Protector ................................................................1 1
* 9545-008-024 Screw, Hex- To Control Panel.....................................................2 2
* 8640-399-005 Nut, Spring- To Control Panel.....................................................2 2
5 9545-008-014 Screw, Flat Head- Front to Sides................................................2 2
5 8641-585-001 Washer, Finish..........................................................................2 2
* 8640-399-008 Nut, Spring- To Front Panel.......................................................2 2
* 9545-008-023 Screw, Guide............................................................................2 2
6 8502-624-002 Label, Door Opening.................................................................1 1
7 9989-452-001 Panel, Control (Mounts Nameplate)............................................1 1
* 9545-008-006 Screw, Control Panel to Sides....................................................4 4
8 9412-076-007 Nameplate, Control Panel (one piece)........................................1 1
9 9454-663-001 Panel, Top................................................................................1 1
10 8650-012 003 tock, Top (w/Key).....................................................................1 1
* 6292-006-007 Key, Top-6324..........................................................................1 1
* 9095-038-001 Cam, Lock-Top.........................................................................1 1
* 8640-426-001 Nut, 9/32................................................................................1 1
* 8641-581-008 Washer....................................................................................1 1
11 9108-097-001 Door, Lower Service.................................................................1 1
12 9244-081-002 Handle (bumper guard)............................................................1 1
* 9545-045-010 Screw.....................................................................................4 4
* 9545-008-023 Screw, Guide ..........................................................................2 2
13 9545-008-014 Screw Mtg., Flat Head..............................................................2 2
13 8641-585-001 Washer, Finish.........................................................................2 2
* 8640-399-008 Nut, Spring.............................................................................2 2
14 · 9108-095-003 Door, Dispenser.......................................................................1 1
* 9451-191-001 Pin, Plain................................................................................2 2
* 9467-025-001 Post, Door Mounting................................................................2 2
* 9545-045-002 Screw, Dispenser Post Mtg.......................................................4 4
* 9545-008-012 Screw, Dispenser Mounting......................................................4 4
* 8640-399-007 Nuts, Spring............................................................................4 4
* 9086-017-001 Catch, Top Panel.....................................................................1 1
* 9467-024-001 Post, Top Locator.....................................................................2 2
* 8640-411-003 Nut, Keps................................................................................2 2
* 9355-001-001 Locator, Panel..........................................................................2 2
* 9545-008-025 Screw, #10.............................................................................2 2
15 9732-122-001 Box Assy, Coin (See Coin Handling Group).................................1 1
16 9021-001-010 Acceptor, Coin (See Coin Handling Group).................................1 1
* Not Illustrated
