Dexter Laundry WCN40AA - Page 35

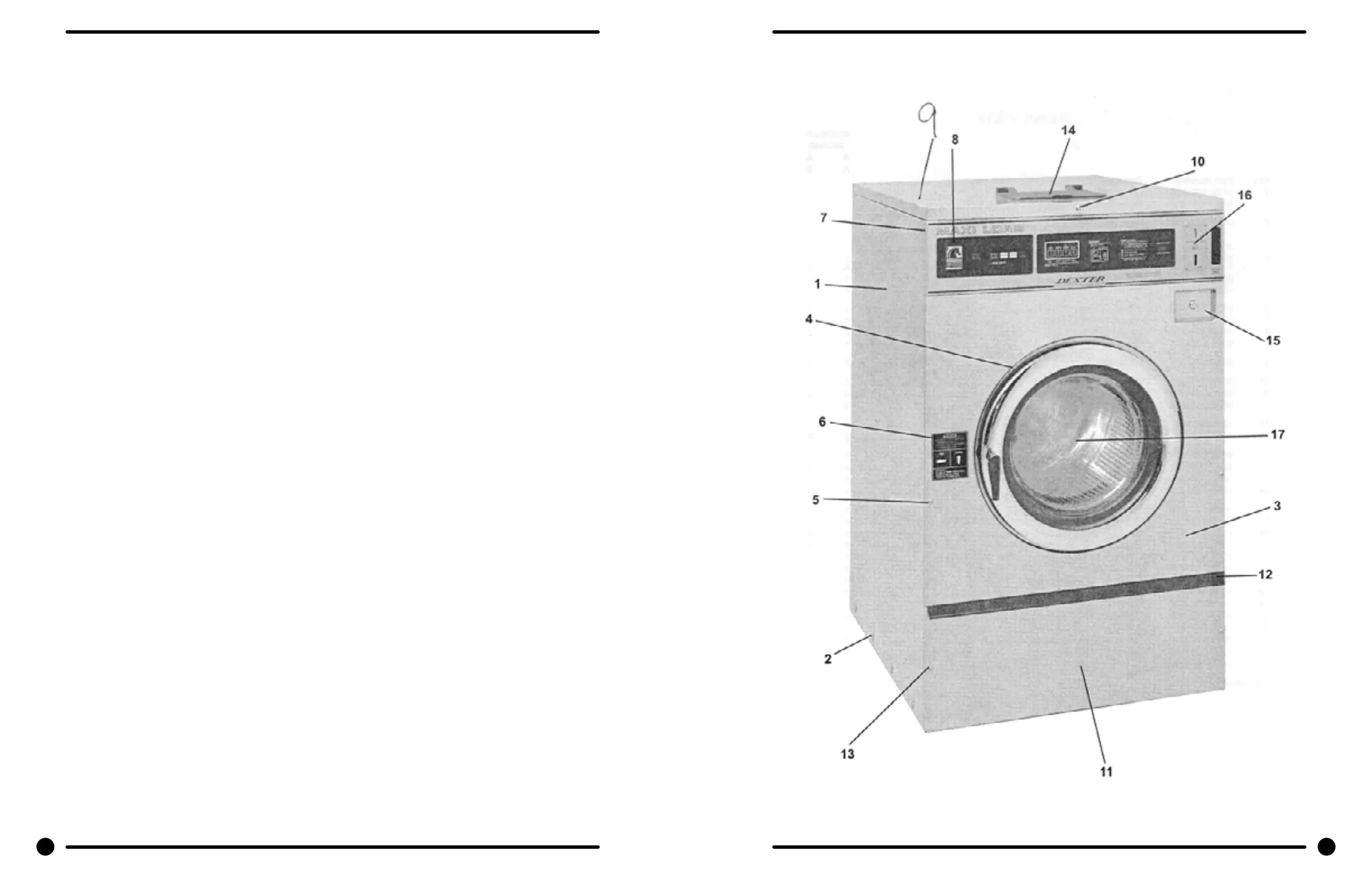

Cabinet and Front Panel Group Part # by Model
WCN40AA/WCN40AB
MODELS
WCN40
A A
A B
Key Part Number Description
1 9989-449-001 Panel, Side (Left or Right)- Stainless ..........................................
2 9545-018-013 Screw, (Side Panel to Base) .......................................................
2 8640-414-006 Nut 8 .......................................................................................
* 9029-066-001 Bracket, Side Panel ....................................................................
* 8640-413-002 Nut, Hex #10 ............................................................................
* 9545-008-005 Screw, #10 ...............................................................................
3 9454-669-001 Panel Assy, Front .......................................................................
4 9059-063-002 Band, Edge Protector (mounted to front panel) ...........................
* 8640-399-005 Nut, Spring- To Control Panel .....................................................
* 9545-008-024 Screw, Hex- To Control Panel .....................................................
5 9545-008-014 Screw, Flat Head .......................................................................
5 8641-585-001 Washer, Finish ...........................................................................
* 8640-399-008 Nut, Spring ...............................................................................
* 9545-008-023 Screw, Fillister Head Guide .........................................................
6 8502-624-002 Label, Door Opening ..................................................................
7 9989-453-001 Panel, Control (Mounts Nameplate) .............................................
* 9545-008-005 Screw, Control Panel Mtg ...........................................................
8 9412-076-006 Nameplate, Control Panel............................................................
9 9454-664-001 Panel, Top ................................................................................
10 8650-012-003 Lock, Top (w/Key) .....................................................................
* 6296-006-007 Key, Top-6324 ...........................................................................
* 9095-038-001 Cam, Lock Top ..........................................................................
* 8640-426-001 Nut, 9/32 ..................................................................................
* 8641-581-008 Washer .....................................................................................
11 9108-097-001 Door, Lower Service ...................................................................
12 9244-081-002 Handle (bumper guard) .............................................................
* 9545-045-010 Screw ( mounting handle) .........................................................
13 9545-008-014 Screw, Flat Head .......................................................................
13 8641-585-001 Washer, Finish ...........................................................................
* 8640-399-008 Nut, Spring ...............................................................................
* 9545-008-023 Screw, Fillister Head Guide Locating Front Panel ..........................
14 9108-095-003 Door, Dispenser ........................................................................
* 9451-191-001 Pin, Plain SS .............................................................................
* 9467-025-001 Post, Door Mounting .................................................................
* 9545-045-002 Screw, Dispenser Post Mtg .........................................................
* 9545-008-012 Screws, Dispenser Mounting .......................................................
* 8640-399-007 Nuts, Spring ..............................................................................
* 9086-017-001 Catch, Top Panel .......................................................................
* 9467-024-001 Top Panel Locator Posts .............................................................
* 8640-411-003 Nut, Keps ( for top panel locator posts) ......................................
* 9355-001-001 Locator, Panel ...........................................................................
* 9545-008-025 Screw, #10 ..............................................................................
15 9732-122-001 BoxAssy, Coin (See Coin Handling Group) ...................................
16 9021-001-010 Acceptor, Coin (See Coin Handling Group) ..................................
17 9456-041-007 Plastic Plug 1 1/2 ( inside cylinder ) ...........................................
* Not Illustrated
2 2
8 8
8 8
1 1
2 2
2 2
1 1
1 1
2 2
2 2
2 2
2 2
2 2
2 2
1 1
1 1
4 4
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
4 4
2 2
2 2
2 2
2 2
1 1
2 2
2 2
4 4
4 4
4 4
1 1
2 2
2 2
2 2
2 2
1 1
1 1
1 1
68 69
