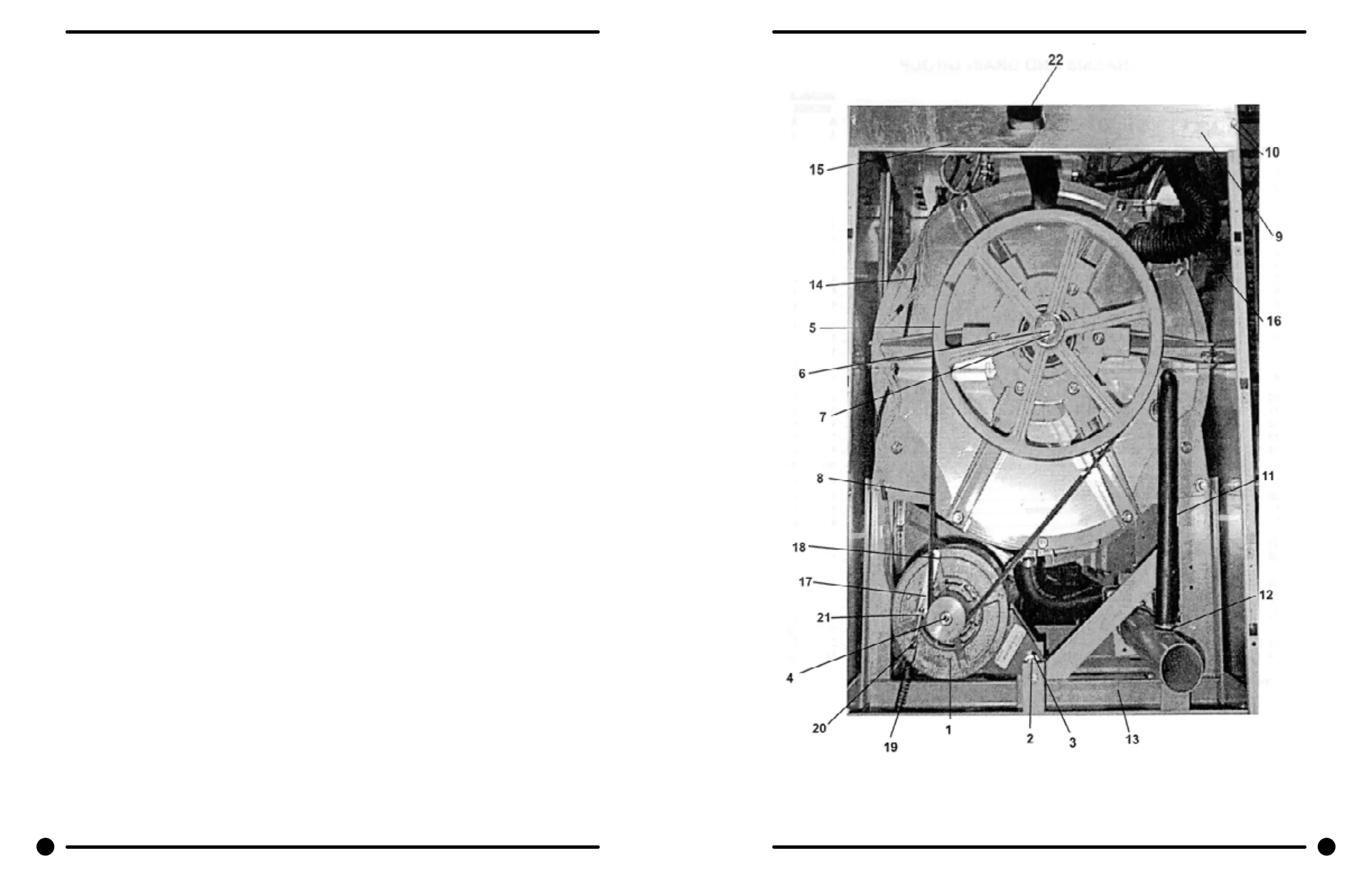

Dexter Laundry WCN40AA - Page 36

Rear View Access Part # by Model
Key Part Number
1 9732-127-001
1 9732-127-002
2 9497-222-002
* 9545-029-005
* 8641-582-014
3 9076-052-002
4 9453-170-002
* 9487-234-001
* 9545-028-015
5 9453-168-002
5 9453-168-004
6 9545-017-009
7 8641-581-026
6 8641-582-016
8 9040-076-005
9 9081-104-001
10 9545-008-026
* 8640-399-004
11 9242-449-002
12 8654-029-000
* 9989-446-002
* 9545-008-026
* 8640-399-004
13 9545-030-002
14 9242-175-000
* 8654-117-015
15 5198-211-004
16 9242-458-002
* 8654-117-014
* 8654-117-009
17 9029-027-003
18 8640-413-002
18 8641-581-006
19 9534-319-002
20 9545-055-001
21 8640-414-003
22 9242-463-002
* Not Illustrated
MODELS WCN25
A A
A B
Description
Drive Motor, 1 Phase ........................................................
Drive Motor, 3 Phase ........................................................
Rod, Motor Mtg ................................................................
Screw {end of motor rod) .................................................
Lockwasher (end of motor rod) .........................................
Collar, Shaft (w/set screws) ..............................................
Pulley, Motor (after serial number#425720}.......................
Tolerance Ring .................................................................
Set Screw, Sq, Hd.............................................................
Pulley, Driven old style single belt (before # 425720) .........
Pulley, Driven (after serial number#425720) ...................
Screw ..............................................................................
Washer, Flat .....................................................................
Lockwasher .....................................................................
Drive Belt {2 required after serial number #425720) ..........
Channel, Rear ..................................................................
Screw ..............................................................................
Nut, Spring ......................................................................
Hose, Overow ................................................................
Clamp, Hose ....................................................................
Panel Assy., Back .............................................................
Screw .............................................................................
Nut, Spring ......................................................................
Screw, to B.ase ................................................................
Hose, Pressure Switch ......................................................
Clamp, Pressure Sw. Hose ................................................
Circuit Breaker, 1.5 amp ...................................................
Hose, Vacuum Breaker to Tub ...........................................
Clamp, Hose to Vacuum Breaker .......................................
Clamp, Hose to Tub ..........................................................
Strap Bracket, Motor Tension ............................................
Nut, Strap to Motor ..........................................................
Washer ...........................................................................
Spring, Belt Tension .........................................................
Bolt, Eye {1/4 -20x1/2) ....................................................
Nut, 1/4 Elastic Stop ........................................................
Overow hose - 11 upper .................................................
1
1
1 1
1 1
1 1
3 3
1 1
1 1
2 2
1 1
1 1
1 1
1 1
2 2
1 1
4 4
4 4
1 1
2 2
1 1
10 10
10 10
2 2
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
70 71
Part # 8533-035-002 4/22 Part # 8533-035-002 4/22
