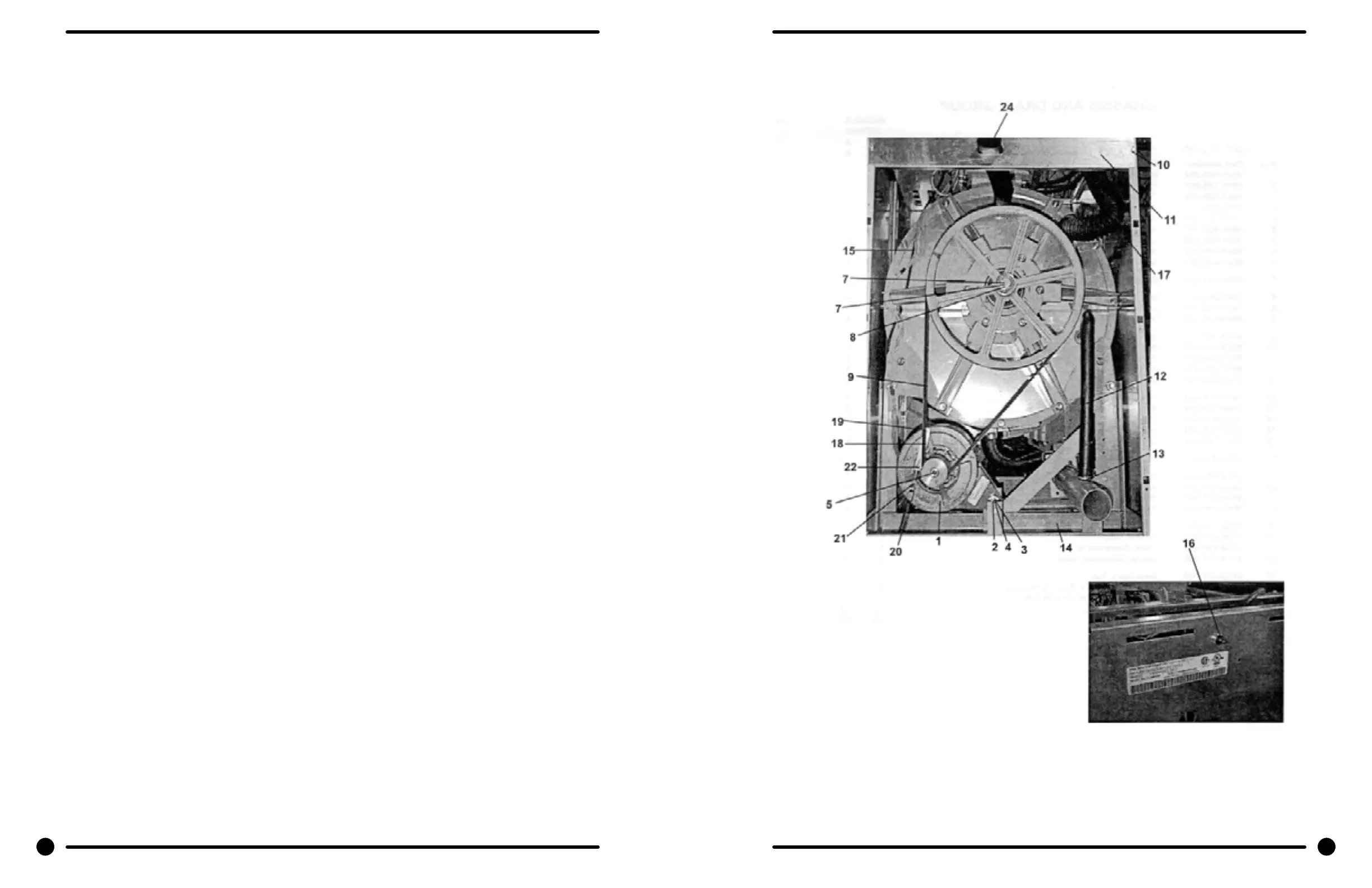

Dexter Laundry WCN40AA - Page 37

Rear View Access Part # by Model
Key Part Number
1 9732-127-005
1 9732-127-006
2 9497-222-004
3 9545-029-005
3 8641-582-014
4 9076-052-002
* 9053-074-001
5 9453-170-002
* 9545-028-015
6 9453-168-003
7 9545-060-001
8 8641-581-032
7 8641-582-018
9 9040-076-005
11 9081-123-001
10 9545-008-026
* 8640-399-004
12 9242-449-002
13 8654-029-000
* 9989-446-001
* 9545-008-026
* 8640-399-004
14 9545-030-002
15 9242-175-002
* 8654-117-015
16 5198-211-004
17 9242-458-002
* 8654-117-014
* 8654-117-009
18 9029-027-003
19 8640-413-002
19 8641-581-006
20 9534-319-002
21 9545-055-001
22 8640-414-003
23 8502-614-004
24 9242-463-002
* Not Illustrated
MODELS WCN40
A A
A B
Description
Drive Motor, 1 Phase ........................................................
Drive Motor, 3 Phase ........................................................
Rod, Motor Mtg ................................................................
Screw {end of motor rod) .................................................
Lockwasher (end of motor rod) .........................................
Collar, Shaft (w/set screws) ..............................................
Bushing............................................................................
Pulley, Motor.....................................................................
Set Screw, Sq, Hd.............................................................
Pulley, Driven....................................................................
Screw, Pulley to Shaft........................................................
Washer, Flat .....................................................................
Lockwasher .....................................................................
Drive Belt.........................................................................
Channel, Rear ..................................................................
Screw ..............................................................................
Nut, Spring ......................................................................
Hose, Overow ................................................................
Clamp, Hose ....................................................................
Panel Assy, Back...............................................................
Screw .............................................................................
Nut, Spring ......................................................................
Screw, to B.ase ................................................................
Hose, Pressure Switch ......................................................
Clamp, Pressure Sw. Hose ................................................
Circuit Breaker, 1.5 amp ...................................................
Hose, Vacuum Breaker to Tub ...........................................
Clamp, Hose to Vacuum Breaker .......................................
Clamp, Hose to Tub ..........................................................
Strap Bracket, Motor Tension ............................................
Nut, Strap to Motor ..........................................................
Washer ...........................................................................
Spring, Belt Tension .........................................................
Bolt, Eye {1/4 -20x1/2) ....................................................
Nut, 1/4 Elastic Stop ........................................................
Label, High Voltage............................................................
Overow hose - 11 upper .................................................
1
1
1 1
1 1
1 1
3 3
1 1
2 2
1 1
1 1
2 2
1 1
2 2
1 1
4 4
4 4
1 1
2 2
1 1
8 8
6 6
3 3
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
72 73
