Dexter Laundry WCN40AA - Page 38

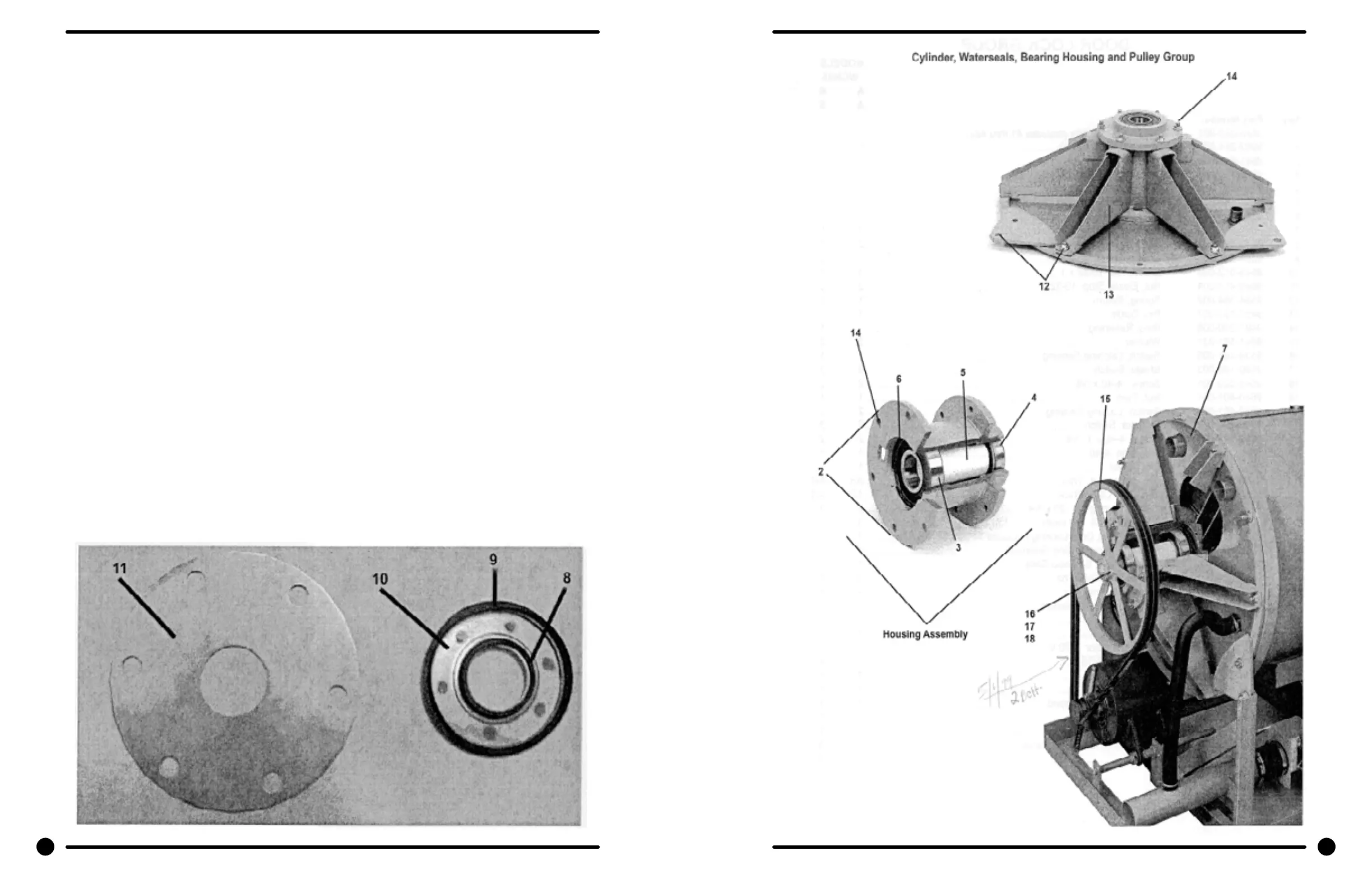

Cylinder, Seals & Bearings Part # by Model
Key Part Number
* 9848-109-001
* 9803-179-002
2 9241-169-002
3 9036-159-002
4 9036-159-001
5 9538-158-001
6 9487-238-001
7 9732-137-002
8 9532-140-003
9 9532-140-002
10 9950-042-001
11 9487-261-002
11 9732-137-002
12 9545-017-009
12 8640-417-002
12 8641-582-016
13 9991-048-002
14 9545-029-003
14 8640-415-004
15 9453-168-002
15 9453-168-004
* 9487-234-001
16 8641-581-026
17 9545-017-009
18 8641-582-016
*Not Illustrated
MODELS WCN25
A A
A B
Description
Cynlinder Assy
Housing, Bearing-Assembly (includes items 2-6)
Housing, Bearing
Bearing, Front
Bearing, Rear
Spacer, Bearing
Ring, Bearing Retainer (internal type)
Back Assy, Tub
Seal, Secondary
Seal, Primary
Ring, Seal Mtg
Tub Back Mating Ring (after serial #429963)
Kit, Tub Back (2-piece kit must be used before #429963)
Bolt, 1/2” Tub End of Bearing Housing (1/2x1 1/4)
Nut
Lockwasher 1/2 (ext tooth)
Support Arm Assy, Bearing Housing
Bolt, Pulley End of Bearing Housing (3/8x1 1/2)
Nut, Flange Locking 3/8
Pulley, Driven (old style - one belt, before #425720)
Pulley, Driven (new style - two belt, after #425720)
Ring, Tolerance
Washer 1/2
Bolt (1/2x1 1/4)
Lockwasher 1/2 Ext Tooth
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
6 6
6 6
6 6
6 6
6 6
6 6
1 1
1 1
1 1
1 1
1 1
1 1
74 75
