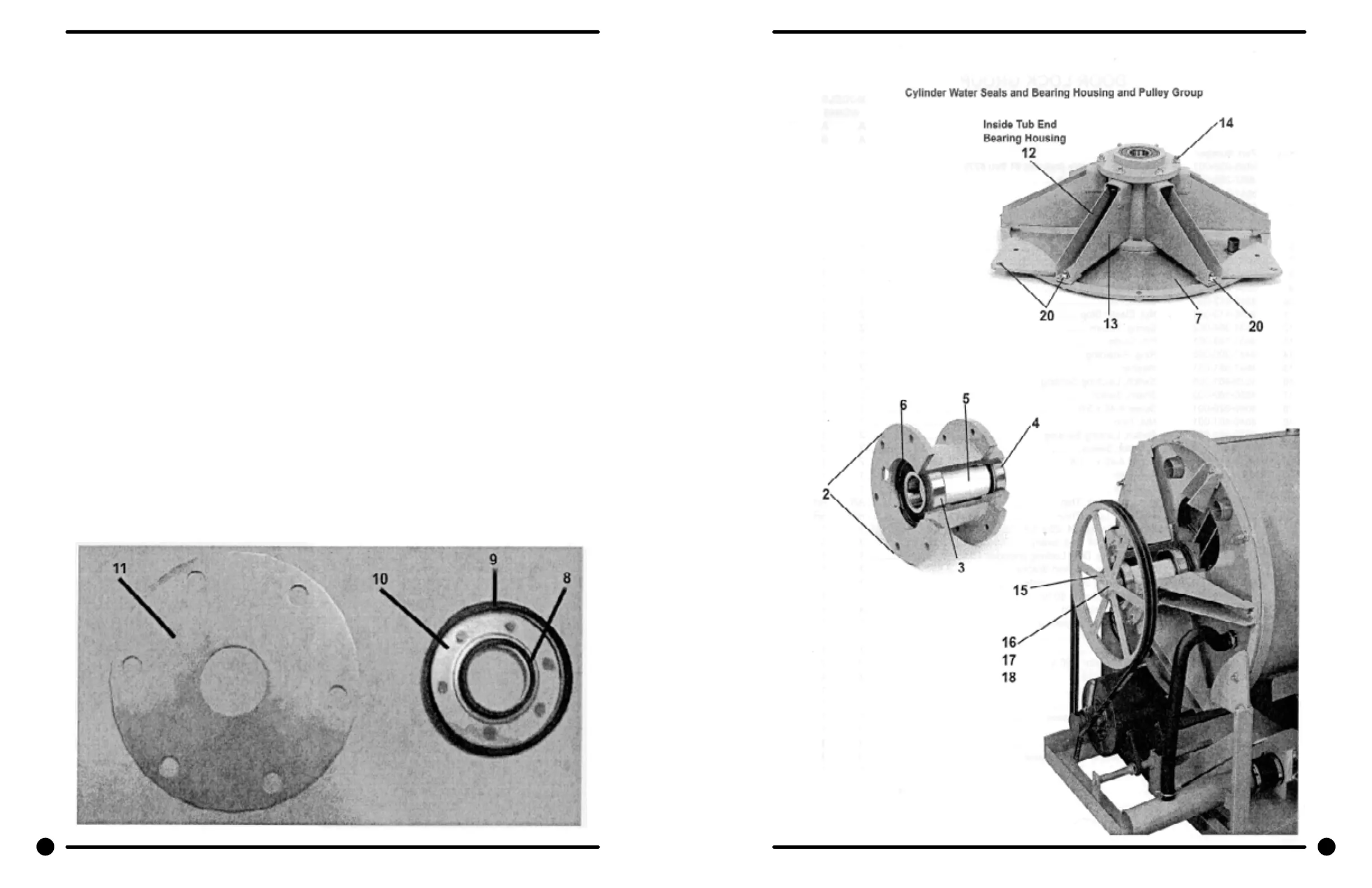

Dexter Laundry WCN40AA - Page 39

Cylinder, Seals & Bearings Part # by Model
Key Part Number
1 9848-113-001
* 9803-186-001
2 9241-180-002
3 9036-159-005
4 9036-159-004
5 9538-167-001
6 9487-238-003
7 9732-137-004
8 9532-140-006
9 9532-140-002
10 9950-048-001
11 9487-261-003
11 9732-137-003
12 9545-060-001
12 8640-425-001
12 8641-582-018
13 9991-056-002
14 9545-059-003
14 8640-416-005
15 9453-168-003
16 9487-234-003
17 8641-581-032
18 9545-060-001
19 8641-582-018
20 9545-059-002
MODELS WCN40
A A
A B
Description
Cylinder Assy
Housing, Bearing-Assembly (includes items 2-6)
Housing, Bearing
Bearing, Front
Bearing, Rear
Spacer, Bearing
Ring, Bearing Retainer (internal type)
Back Assy, Tub
Seal, Secondary
Seal, Primary
Ring, Seal Mtg
Tub Back Mating Ring (after serial #429963)
Kit, Tub Back (2-piece kit must be used before #429963)
Bolt, 5/8x1 1/2 Tub End of Bearing Housing
Nut 5/8
Lockwasher 1/2 (ext tooth)
Support Arm Assy, Bearing Housing
Bolt, Pulley End of Bearing Housing (7/16x1 1/2)
Nut, Flange Locking 7/16
Pulley, Driven
Ring, Tolerance
Washer 1/2
Bolt (5/8x1 1/2)
Lockwasher 1/2 Ext Tooth
Bolt Tub Back and Supports (7/16x2)
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
6 6
6 6
6 6
6 6
6 6
6 6
1 1
1 1
1 1
1 1
1 1
1 1
76 77
